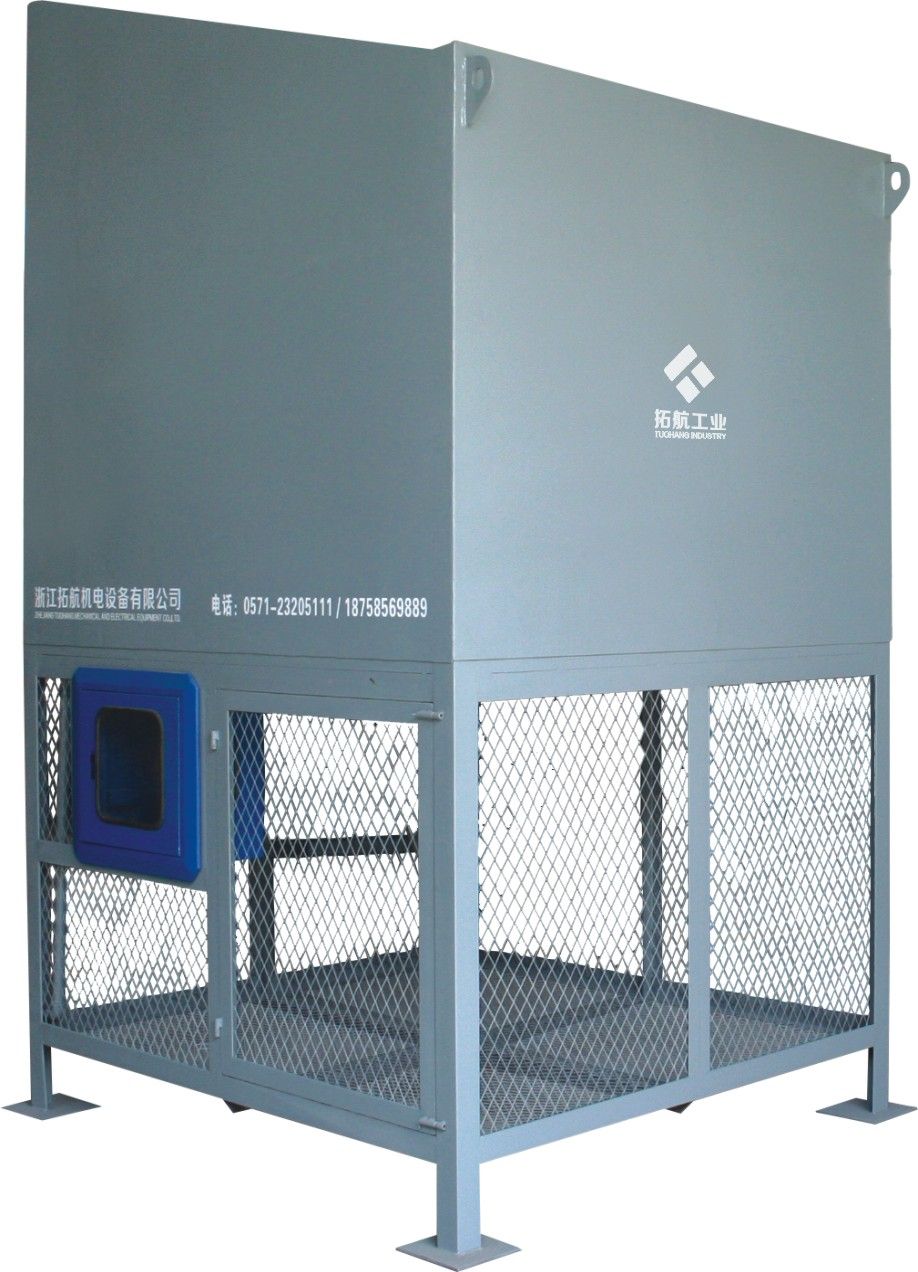

High Performance Self-Cleaning System of Air Filter Factory Direct Supply

Prod Model:	HZJ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Industry, Medical, Engineering
Purifying Technology:	Electrostatic
Air Volume:	301-400m³/h
Power Source:	Electrical
Certification:	ISO
Operating Principle:	Active
Structure:	Floor Standing
Anion Density:	3500000pcs/m³
Type:	Electrostatic

Product Description

Product Details HZJ series equipment is a kind of self-cleaning air filter regarding steel filter cartridge as filtering element and aluminum venture as self-cleaning device,with functions of pulse drainage outbreak and back flushing ash removal functions. Features of HZJ series equipment:imported vegetable fiber filter materials,high temperature solidification,strong moisture-resistance ability,high filtering precision,and small resistance,which can meet filtering requirements of imported and domestic compressed air machine.Dust screens are adopted among each group of filter cartridge ,so as to avoid secondary absorption of dust. The ratio between inlet air volume of air engine and air volume of HZJ series product shall be larger than1:1.5,which can guarantee stability of gas flow reduce resistance and extend service life.It is simple to change filter element ,prerational cost of HZJ products is low;which can be controlled which central control room.Various data shall be provided by display screen for various operational conditions.With small floor space, net gas room and air outlet adopts anticorrosive paints produced by Akzo Nobel Company.With high filtering efficiency,this product can guarantee that blades of air compressors will not be abraded for dust,without obvious scale formation within compressors. HZJ series products connect with compressor inlet.At the time of operation,under effects of negative pressure,it can absord enviromental air.Air passes through filter element,and dust is absorded by filter cartridge.Dust froms a layer of dust film on the surface of filter materials of filter cartridge,so that airflow resistance increases.And at this time,transimtter notifiles microprocessor to send orders,and filter material begins to take actions,driving membrane valve.In addition,it compressed flow instantly,flowing into venture through shower nozzle. Main Performance and Parameters Relative temperature: < 80%,short time (such as Yuxiu) < 100% Safety of electrical equipment:NEMA4 industrial area Self-cleaning of differential pressure :60 Pa(adjustable)=0.5um Filter efficiency:> 96% Initial resistance: <150Pa Normal operation:150Pa~650Pa Alarm resistance:1100Pa(can be set) Final resistance:1200Pa(can be set) Equipment noise: <75 dBA Safety vacuum degree of device s measuring resistance:0-3000Pa(can be set) Self-cleaning aire pressure:0.5Mpa~0.65Mpa,the maximum pressure is 0.9Mpa Consumption of self-cleaning air:air consumptionn =0.2m³/min Power supply and consumption of control system:ACV220V/50HZ/250mA,power consumption = 200W Liquid crystal display:operation valve,time interval,valve action time,resistance value,and alarm signal Providing two signals for central control room 4~20maDCS:start-stop and alarm (without source electric shock) Outstanding advantages of control sytstm:get rid of control of traditional relayy,adopt non-electric shock control,and gather digit,simulation and power electronics as a whole.Weak current and strong current and combined as a whole,whose performance is more stable than general control system.In addition,the system is extendable,interlocked,and remote.
