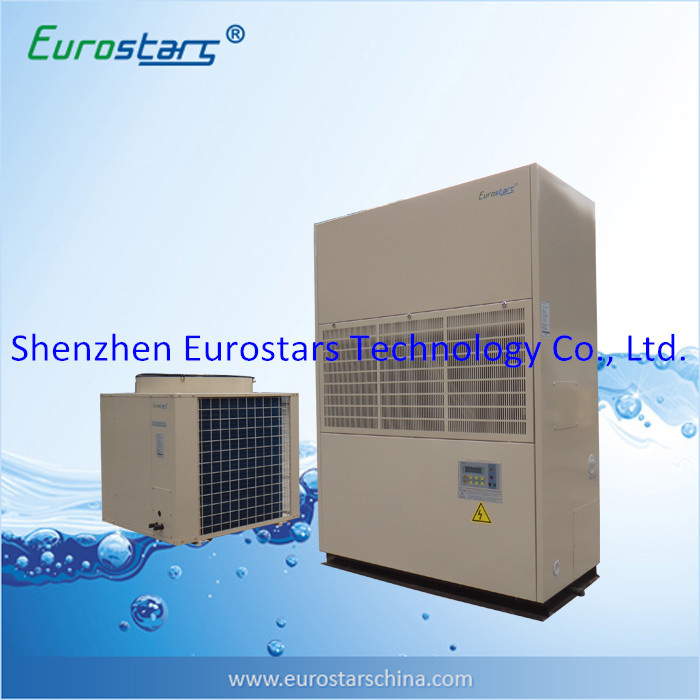

High Efficient Air Cooled Purified Thermostatic and Humidistat Precision Central Air Conditioner
| Price: |
US $ 1000-12000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
ESSA4PTSC~ESSA35PTQC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Compressor Brand: |
Danfoss/Copeland |
| Outdoor Unit Noise Level: |
Lower |
| Optional: |
Electrical Heating |
| Type: |
Cabinet Air Conditioner |
| Mounting: |
Floor Standing |
| Certification: |
SGS |
| Condition: |
New |
| Operating Voltage: |
380~440V-3pH-50Hz/60Hz |
| Application Fields: |
Hospital/Facttory/School/Restaurant |
Product Description
High Efficient Air Cooled Purified Thermostatic and Humidistat Precision Central Air Conditioner

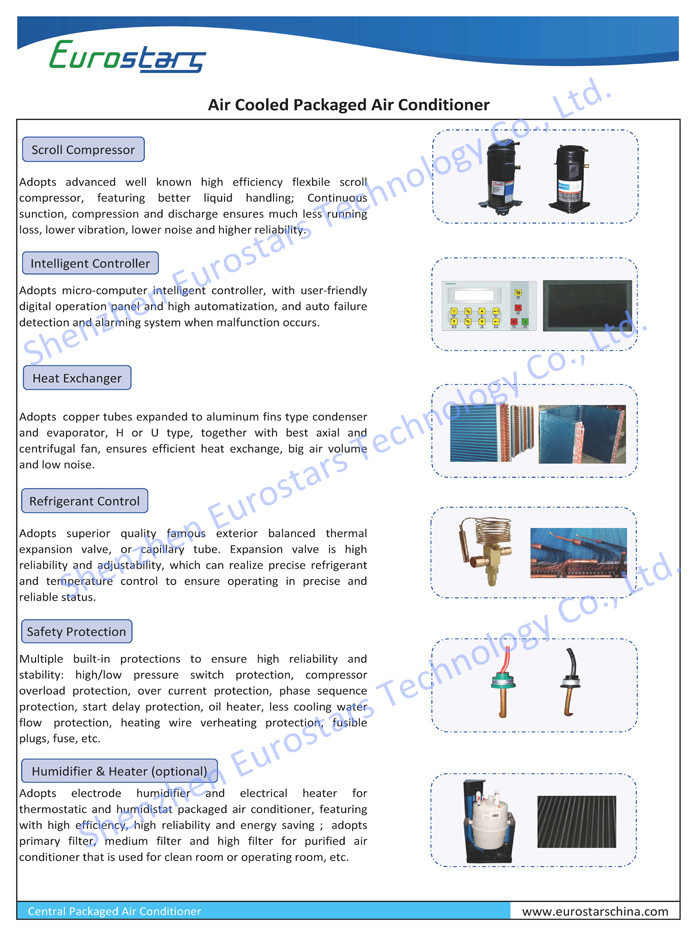

1. Air cooled purified packaged air conditioner main features:
(1) Advanced high efficiency flexible scroll compressor; (2)Micro-computer intelligent controller; (3) Multiple safety protections; (4) Superior quality expansion valve or capillary tube.
2. Nomenclature-Air cooled central purified packaged air conditioner
ES S A 25 PT T C E
1 2 3 4 5 6 7 8
1: ES Eurostars
2 :S Compressor type: S-Scroll G-Screw P-Hermetic piston B-Semi-hermetic piston R-Rotary
3 :A Product series No.: A-Air cooled commercial series
4 :25 Cooling capacity:USRT
5 :PT Product type: PT:Purified thermostatic and humidistat PU: Purified
HT: Thermostatic and humidistat
6 :T Compressor quantity: S-Single D-Double T-Triple Q-Quadruple F-Fivefold
7: C Frame type: C-Cabinet type O-Open type
8 :H Function: H-Heat pump E-Electrical heating
Cooling or Heating only- when not to mention any letter

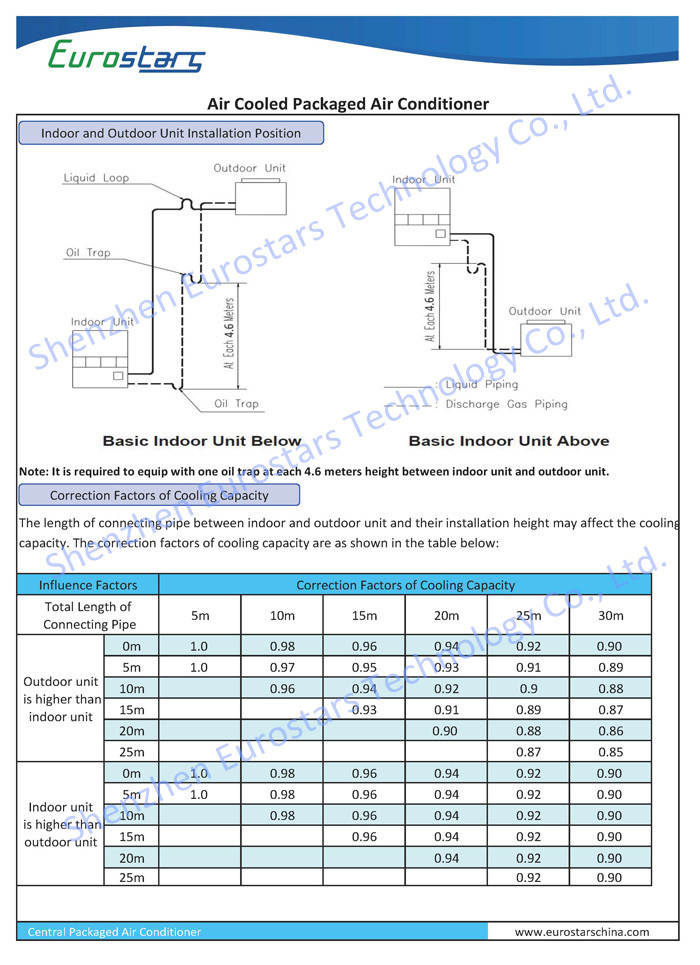

3. Air cooled Purified Thermostatic and Humidistat Air Conditioner installation illustration:
4.Air cooled Packaged air conditioner techinal specification
Please ask salesman for detailed complete data or visit our website:
www.eurostarschina.com| Air Cooled (Electrical Heating)Purified Thermostatic and Humidistat Air Conditioner |
| Model ESSA- | 4PTSC | 6.5PTSC | 7.5PTDC | 12PTTC | 15PTDC | 20PTDC | 25PTTC | 30PTQC | 35PTQC |
| 4PTSCE | 6.5PTSCE | 7.5PTDCE | 12PTTCE | 15PTDCE | 20PTDCE | 25PTTCE | 30PTQCE | 35PTQCE |
Technical
Parameters | Cooling Capacity | KW | 13.9 | 22.5 | 27.7 | 41.6 | 56.2 | 64.4 | 84.4 | 112.5 | 128.8 |
| USRT | 3.95 | 6.39 | 7.88 | 11.83 | 15.98 | 18.31 | 24 | 31.98 | 36.62 |
| Electrical Heating capacity | KW | 8 | 9 | 12 | 18 | 24 | 30 | 36 | 54 | 72 |
| Humidifying Capacity | kg/h | 8 | 8 | 8 | 15 | 15 | 23 | 23 | 32 | 32 |
| Rated Air Flow | CMH | 2800 | 4500 | 5600 | 8600 | 11700 | 14000 | 17000 | 23000 | 28000 |
| External Static Pressure | Pa | 100/700 | 200/800 | 200/800 | 250/850 | 250/850 | 300/900 | 300/900 | 350/950 | 350/950 |
| Power Supply | | 380V-3PH-50Hz |
| Cooling Max. Input Power | KW | 15.2/16.3 | 21.1/22.6 | 27.8/29.6 | 41.4/43.9 | 54.5/58 | 65.2/70.7 | 81.3/86.8 | 112.5/120 | 142.3/146.3 |
| Cooling Max. Current | A | 28.0/29.8 | 36.8/39.8 | 51.3/54.7 | 76.5/80.8 | 95.7/102.3 | 112.9/123.9 | 141.9/152.9 | 195.0/206.0 | 244.4/252.1 |
| Noise | dB(A) | ≤60/≤74 | ≤70/≤77 | ≤71/≤77 | ≤73/≤79 | ≤74/≤79 | ≤75/≤80 | ≤75/≤80 | ≤77/≤82 | ≤79/≤83 |
| Temperature & Humidity Range | 18-28ºC±1ºC,50-70%±10% |
| Connecting Pipe | Liquid | Ø12.7 | Ø16 | Ø12.7 | Ø12.7 | Ø16 | Ø16 | Ø16 | Ø16 | Ø16 |
| Connecting Pipe | Air | Ø19 | Ø22 | Ø19 | Ø19 | Ø25 | Ø28 | Ø25 | Ø25 | Ø28 |
| Indoor Unit | Evaporator | Ripple Aluminum Fins around Copper Pipe |
| Throttle Device | Exterior Equalizer Thermostatic Expansion Valve |
| Centrifugal Fan | Type | The Belt Transmission Centrifugal |
| Power | 0.45/1.5 | 1.5/3.0 | 2.2/4.0 | 3.0/5.5 | 4.0/7.5 | 5.5/11 | 5.5/11 | 7.5/15 | 11.0/15.0 |
| Air Filter | Primary Filter+Medium Filter, High Filter |
| Electrode Humidifier | Power (KW) | 6.1 | 6.1 | 6.1 | 11.4 | 11.4 | 17.5 | 17.5 | 24.3 | 24.3 |
| Water Inlet (in) | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 |
| Dimension | W (mm) | 900 | 1350 | 1350 | 1900 | 1900 | 2300 | 2300 | 2800 | 2800 |
| D (mm) | 1350 | 1350 | 1350 | 1350 | 1500 | 1700 | 1850 | 2000 | 2200 |
| H (mm) | 1500 | 1500 | 1500 | 1700 | 1700 | 2300 | 2300 | 2500 | 2500 |
| N.W. | kg | 450 | 650 | 700 | 950 | 1050 | 1650 | 1850 | 2300 | 2450 |
| Outdoor Unit | Model | ES-5U | ES-8U | ES-5U*2 | ES-5U*3 | ES-10U*2 | ES-12.5U*2 | ES-10U*3 | KA-10U*4 | ES-12.5U*4 |
| Compressor | Type | Hermetic Scroll Type |
| Power(HP)×Qty | 5*1 | 8*1 | 5*2 | 5*3 | 10*2 | 12.5*2 | 10*3 | 10*4 | 12.5*4 |
| Power (KW) | 4.3 | 6.5 | 8.6 | 12.9 | 16.2 | 18.3 | 24.2 | 32.3 | 36.5 |
| Air Volume(CMH) | 6200 | 10400 | 6200*2 | 6200*3 | 15000*2 | 15000*2 | 15000*3 | 15000*4 | 15000*4 |
| Dimension | W (mm) | 960 | 930 | 960*2 | 960*3 | 1000*2 | 1000*2 | 1000*3 | 1000*4 | 1000*4 |
| D (mm) | 350 | 790 | 350*2 | 350*3 | 885*2 | 885*2 | 885*3 | 885*4 | 885*4 |
| H (mm) | 1260 | 930 | 1260*2 | 1260*3 | 930*2 | 1088*2 | 930*3 | 930*4 | 1088*4 |
| N.W. | kg | 120 | 180 | 120*2 | 120*3 | 210*2 | 230*2 | 210*3 | 210*4 | 230*4 |
| Safety Protection | High/low pressure switch protection, Compressor overload Protection over current protection, Phase sequence protection,Start delay protection, Oil heater, Electric wire overheating protection, Air Differential Pressure Protection, Humidification Over Current Protection,Exterior Interlock Protection, The fusible plugs, Fuse, etc. |
Note:
(1). Rated Cooling Capacity based on:Indoor side inlet Air Temperature 23ºC/17ºC, Ambient Temperature:35ºC;
(2). Utilizing Heat Recovery is more energy saving than Ordinary Type When Requiring 45-65% Ambient Humidity.
5.Eurostars air cooled packaged air conditioner Quotation Remarks
(1).Packing: Standard export package
(2).Delivery Day: 25 days after deposit is confirmed
(3).Delivery term: CIF,FOB or CNF EX-Work are welcomed
(4).Payment term: 30% deposit by TT, the balance will be paid by TT before delivery;
or 100% Irrevocable non-transferred LC at sight
(5).Warranty: 12~18 months after Bill of Lading date. Any unartificial failure occurred within the
period, we'll supply you the spare parts for free, and permanent technical support & consultation all
life long for the machines.
(6).Validity: 20 days
(7).Payment currency: USD
6. Eurostars air cooled central packaged air conditioner series
Air cooled packaged air conditioner (air outlet from side or top)
Air cooled purified packaged air conditioner
Air cooled thermostatic and humidistat packaged air conditioner
Air cooled purified thermostatic and humidistat packaged air conditioner
Air cooled ceiling packaged air conditioner
