| Prod Model: |
ESSA-25WDCT |
| Compressor: |
Hermetical Scroll |
| Function: |
Cooling and Heating |
| Constant Temperature And Humidity: |
Optional |
| Refrigerant: |
R22,R407c, R410A, R134A |
| Type: |
Cabinet Air Conditioner |
| Mounting: |
Floor Standing |
| Certification: |
CCC |
| Condition: |
New |
| Operating Voltage: |
220/380/415/440/460V-3pH/50/60Hz |
| Application Fields: |
Factory, School, Shopping Mall, etc. |
Product Description

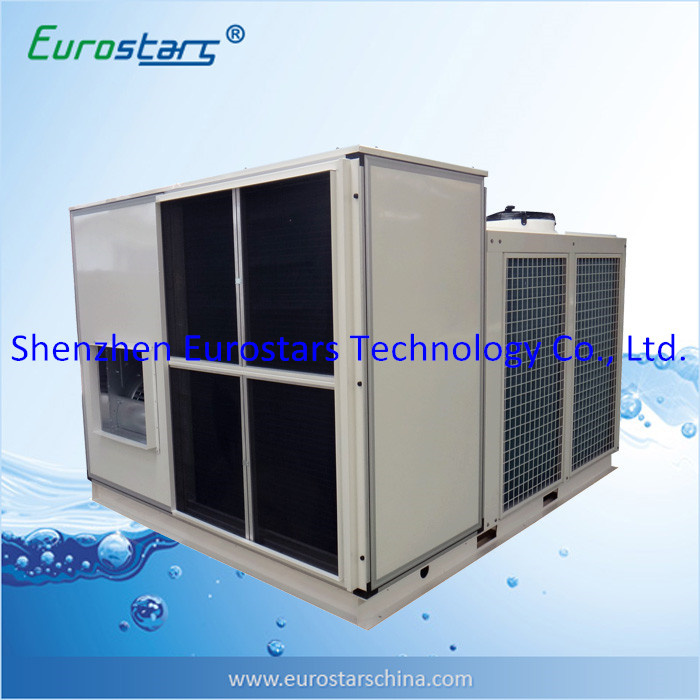

Shopping Center Rooftop Packaged Air Conditioner
1.Brief introduction:-rooftop air conditioner
Eurostars brand ESSA series rooftop air conditioner were developed by our company,with continuous development and improvement,at present,we do not only have the conventional series with R22 as refrigerant but also have the environmental friendly series product with refrigerant R407C,R134A or R404A,which are harmless to the ozonosphere.
This series product is horizontal packaged ones which consist of supply air,refrigeration,heating,h
umidity,air purification,and electric control section as an integral body.The unit has the a
dvantages of big refrigerating capacity,simplified refrigerating circuit,compact structure and etc.The unit can be installed on the roof and do not occupy much space;it is very to connect with air duct.To ensure a precise temperature and humidity of supply air,the unit adopt computer controller.
Our rooftop air conditioner can be widely used in industrial fields of metallurgy,chemical,mechanism,
electron,power and etc,also can be used in hospital,supermarket,hotel and office.
2.Nomenclature-rooftop air conditioner
ES S A 10 WD C H T N PU C
1 2 3 4 5 6 7 8 9 10 11
1: ES Eurostars
2 :S Compressor type: S-Scroll G-Screw P-Hermetic piston B-Semi-hermetic piston R-Rotary
3 :A Product series No.: A-Air cooled series
4 :10 Cooling capacity:USRT
5 :WD Product type: WD-Rooftop
6 :C Frame type: C-Cabinet type
7 :H H-Heat pump E-Electrical heating Cooling or Heating only- when not to mention any letter
8 :T Air discharge direction: T-Top
9: N N-R407C M-R134a P-R410A Omitted when not to mention any letter
10: PU PU-Purified HT-Thermostatic and humidistat PT-Purified thermostatic and humidistat
11 :C Sales Region C: Mainland China O: Other Regions
5.Techinal Spec.-Rooftop air conditioner
| Model ESSA- | 06WDCT | 08WDCT | 10WDCT | 12WDCT | 15WDCT | 20WDCT |
| 06WDCHT | 08WDCHT | 10WDCHT | 12WDCHT | 15WDCHT | 20WDCHT |
| Cooling capacity | KW | 23 | 29 | 33 | 43 | 50 | 66 |
| USRT | 6.54 | 8.25 | 9.39 | 12.23 | 14.22 | 18.77 |
| Heating capacity | KW | 25.0 | 31.0 | 35.0 | 46.0 | 54.0 | 71.0 |
| USRT | 7.11 | 8.82 | 9.95 | 13.08 | 15.36 | 20.19 |
| Power input(KW) | Cooling | 8.5 | 10.8 | 14.1 | 16.2 | 22.2 | 26.4 |
| Heating | 8.8 | 11.2 | 14.5 | 16.8 | 23.0 | 27.3 |
| EER | 2.7 | 2.7 | 2.3 | 2.7 | 2.3 | 2.5 |
| COP | 2.8 | 2.8 | 2.4 | 2.7 | 2.3 | 2.6 |
| Power supply |
| 380/400/415/440V-3PH-50HZ |
| Compressor | Type |
| Scroll |
| Quantity | pcs | 2 | 2 | 2 | 3 | 3 | 4 |
| Evaporator | Ripple Aluminum Fins around Copper Pipe |
| Condenser | Ripple Aluminum Fins around Copper Pipe |
Evaporator fan
(Indoor fan) | Type |
| Centrifugal |
| Air flow | m3/h | 4300 | 5400 | 6500 | 8000 | 9600 | 12800 |
Condenser fan
(Outdoor fan) | Type |
| Axial |
| Air flow | m3/h | 9000 | 11000 | 13000 | 16000 | 20000 | 26000 |
| Power | KW | 0.55 | 0.75 | 0.75 | 1.1 | 1.1 | 1.5 |
| Qty | pcs | 1 | 2 | 2 | 2 | 2 | 2 |
| Refrigerant | Type |
| R22/R407C |
| Circuit |
| 2 | 2 | 2 | 3 | 3 | 4 |
| Charge | Kg | 5.5 | 6.5 | 8 | 10.2 | 13 | 16 |
| Filter | Washable Nylon Filter |
Electrical heater
(optional) | Type | Fine type |
| Capacity | KW | 9 | 12 | 15 | 20 | 33 | 35 |
| Dimension | L | mm | 1700 | 1850 | 1850 | 2050 | 2600 | 2600 |
| W | mm | 1600 | 1850 | 1850 | 1850 | 1900 | 2150 |
| H | mm | 900 | 1060 | 1060 | 1260 | 1400 | 1550 |
| Weight | KG | 432 | 500 | 528 | 632 | 780 | 850 |
| Model ESSA- | 25WDCT | 30WDCT | 35WDCT | 40WDCT | 50WDCT |
|
| 25WDCHT | 30WDCHT | 35WDCHT | 40WDCHT | 50WDCHT |
|
| Cooling capacity | KW | 88 | 99 | 115 | 136 | 175 |
|
| USRT | 25.03 | 28.16 | 32.71 | 38.68 | 49.77 |
|
| Heating capacity | KW | 94.0 | 104.0 | 123.0 | 140.0 | 187.0 |
|
| USRT | 26.73 | 29.58 | 34.98 | 39.82 | 53.19 |
|
| Power input(KW) | Cooling | 32.4 | 41.0 | 45.5 | 54.3 | 71.0 |
|
| Heating | 33.6 | 42.5 | 47.2 | 56.3 | 73.3 |
|
| EER | 2.7 | 2.4 | 2.5 | 2.5 | 2.5 |
|
| COP | 2.8 | 2.4 | 2.6 | 2.5 | 2.6 |
|
| Power supply |
| 380/400/415/440V-3PH-50HZ |
| Compressor | Type |
| Scroll |
| Quantity | pcs | 3 | 3 | 4 | 4 | 4 |
|
| Evaporator | Ripple Aluminum Fins around Copper Pipe |
| Condenser | Ripple Aluminum Fins around Copper Pipe |
Evaporator fan
(Indoor fan) | Type |
| Centrifugal |
| Air flow | m3/h | 15000 | 18500 | 20000 | 26000 | 30000 |
|
Condenser fan
(Outdoor fan) | Type |
| Axial |
| Air flow | m3/h | 32000 | 40000 | 44000 | 52000 | 64000 |
|
| Power | KW | 2.2 | 2.2 | 3 | 3 | 4.5 |
|
| Qty | pcs | 3 | 4 | 4 | 4 | 4 |
|
| Refrigerant | Type |
| R22/R407C |
| Circuit |
| 3 | 3 | 4 | 4 | 4 |
|
| Charge | Kg | 5.5 | 0.75 | 0.75 | 1.1 | 1.1 |
|
| Filter | Washable Nylon Filter |
Electrical heater
(optional) | Type | Fine type |
| Capacity | KW | 40 | 44 | 46 | 52 | 68 |
|
| Dimension | L | mm | 3200 | 4000 | 4200 | 4300 | 4300 |
|
| W | mm | 2200 | 2150 | 2150 | 2150 | 2200 |
|
| H | mm | 1960 | 1960 | 2100 | 2100 | 2100 |
|
| Weight | KG | 1140 | 1700 | 1860 | 2120 | 2360 |
|
