| Prod Model: |
YET-6005B HID Compatible Card Reader |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Keywords: |
HID Compatible Card Reader |
Product Description

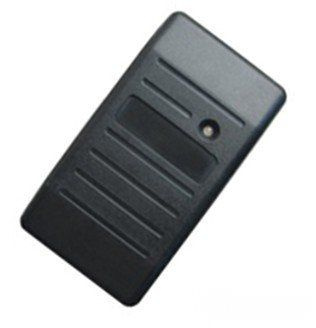

HID Compatible Card Reader (YET-6005B)
RFID Reader supplier, UHF RFID Reader manufacturer, FID Reader, Passive RFID Reader company, RFID Reader factory
HID Compatible 125kHz Card Reader with wiegand26 or RS232 data interface
HID Card Compatible Reader
HID compatible proximity card reader. It reads all HID standard 125kHz proximity card serial number and transmits it to the access control system using the common Wiegand interface or any other OEM interface requirements in the future.
1. Specification:
Voltage DC9V
Current <50 mA
Interface: Weigand26/34, RS485/232
Reader Range: 5 - 10 cm
Frequency: 122-128kHz
Operation Temperature: -20° C to +65° C
Operationg humidity: 5%-95% relative humidity non-condensing
Audio/Visual Indication: Green & Red and Buzzer signal output
Response Time: Less than 0.2 seconds
Cable length: 250mm
Waterproof: IP65
|
Name |
Signal Tpye |
Color |
Detail |
|
|
VCC |
Power |
Red |
Power DC 9V-12V |
|
|
GND |
Power |
Black |
Powe GND |
|
|
SHIELD GND |
GND |
SHIELD GND |
|
|
DATA0 |
OUT |
Green |
Wiegand output D0 |
|
|
DATA1 |
OUT |
White |
Wiegand output D1 |
|
|
GRN LED |
IN |
Orange |
Green LED control,Low effective |
|
|
RND LED |
IN |
Brown |
Red LED Control,Low effective |
|
|
Beep CNTRL |
IN |
Yellow |
Buzzer control,Low effective |
|
|
HOLD |
OUT |
Blue |
Data valid signal line, Low effective |
|
|
Card PRESENT |
OUT |
Purple |
Card PRESENT,Low effective |
|
Shenzhen YeTong Technology Co., Ltd is a high-technology corporation, with specializing in R & D and production of Security Products, including Standalone, TCP/IP or RS485 network Access Control, Turnstile Barrier Gate System, Time Attendance System, RFID Reader, Biometric Fingerprint Products, Digital Peephole Viewer, Digital Door Viewer, Electrict Lock and Accessories, etc. We also try to enlarge our scope in Security Area, like Video Phone Intercom System. With its special skill, we succeed in building our own famous brand name.
Implementing technology development strategy of high start, high input and high-quality, by virtue of our brand, our products are sold nationwide and exported to Hong Kong, Korea, Southeast Asia, the Middle East, Europe, the United States and other countries.
We have about ten Years of manufacturing experience. Until Now, six production lines are equipped with 500, 000 sets of machines for your OEM projects. Our 2, 0000-square-meter factory has a monthly capacity of 20, 000 units. Operations are ISO 9001: 2000 certified, and our products meet CE and FCC standards.
We offer our global clients with competitive price, superior quality and good performance. And we have become a reputable OEM/ODM manufacturer all over the world, and will happily work with you to develop custom solutions for your security requirements.
A large and professional OEM/ODM manufacturer in China. We provide you with
1) the quickest delivery
2) the most unique performance safe security products(access control, turnstile, barrier, RFID reader, video door phone, CCTV camera etc)
3) guarantee for superior quality
4) fashion element most close to the market
5) nice discount for large order quantity
For more information, please visit our website: HTTP: //rfidaccesscontrol. en. Made-in-China. com/
