| Prod Model: |
YET-6005B HID Reader |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Keywords: |
HID Proximity Card RFID Reader |
| Frequency: |
125kHz |
Product Description

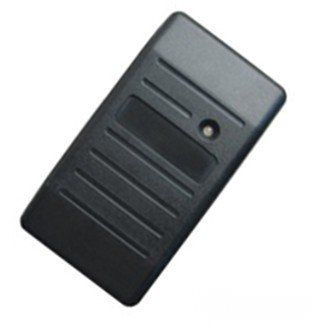

HID Proximity Card RFID Reader (YET-6005B)
RFID Reader supplier, RFID Reader manufacturer, RFID Reader, RFID Reader company, RFID UHF Reader factory
RFID Access Control Keypad Reader. Access Control supplier, RFID Reader Access Control manufacturer, RFID Reader Access Control, RFID Reader Access Control company, Access Control RFID Reader factory,
HID Proximity Card RFID Access Control Reader
HID Compatible 125kHz Card Reader with wiegand26 or RS232 data interface
HID Card Compatible Reader
HID compatible proximity card reader. It reads all HID standard 125kHz proximity card serial number and transmits it to the access control system using the common Wiegand interface or any other OEM interface requirements in the future.
1. Specification:
Voltage DC9V
Current < 50 mA
Interface: Weigand26/34, RS485/232
Reader Range: 5 - 10 cm
Frequency: 122-128kHz
Operation Temperature: -20° C to +65° C
Operationg humidity: 5%-95% relative humidity non-condensing
Audio/Visual Indication: Green & Red and Buzzer signal output
Response Time: Less than 0.2 seconds
Cable length: 250mm
Waterproof: IP65
|
Name |
Signal Tpye |
Color |
Detail |
|
|
VCC |
Power |
Red |
Power DC 9V-12V |
|
|
GND |
Power |
Black |
Powe GND |
|
|
SHIELD GND |
GND |
SHIELD GND |
|
|
DATA0 |
OUT |
Green |
Wiegand output D0 |
|
|
DATA1 |
OUT |
White |
Wiegand output D1 |
|
|
GRN LED |
IN |
Orange |
Green LED control,Low effective |
|
|
RND LED |
IN |
Brown |
Red LED Control,Low effective |
|
|
Beep CNTRL |
IN |
Yellow |
Buzzer control,Low effective |
|
|
HOLD |
OUT |
Blue |
Data valid signal line, Low effective |
|
|
Card PRESENT |
OUT |
Purple |
Card PRESENT,Low effective |
|
