| Prod Model: |
RSM500/M1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
Rsm-500/M1 |
| Weight: |
180g |
| Cable: |
Kevlar+PU |
| Material: |
TPU Black |
| Warranty: |
10 Months |
| User: |
Security, Policeman, Swat |
| For Radiso: |
Cp040/Cp140/Cp160/Cp200/Gp68/Gp88/Gp300/Gp308/Ep45 |
| Work For: |
Two Way Radios/Walkie Talkies |
| Product Name: |
Heavy Duty Remote Speaker Mic W/ 3.5mm Audio Jack |
| Voice: |
Loud & Clear Sound |
| Style: |
Handheld Microphone |
| Application: |
Two Way Radio |
| Signal Transmission: |
Wired |
| Directivity: |
Uni-direction |
| Sound Channel: |
Mono |
| Transducer Principle: |
Electromagnetic Microphone |
| Sound Field Force: |
Combined Type |
| Output Impedance: |
50-1000Ω |
| Connector(',s): |
Two Way Radio Connector |
| Wireless Technology: |
UHF/VHF |
Product Description

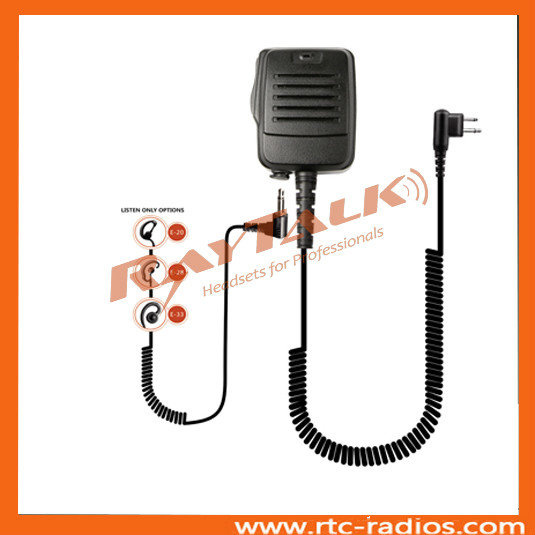

Heavy duty Remote Speaker Microphone w/ 3.5mm Audio Jack for Motorola GP308
Product Description
Handle speaker microphone
The top selling RSM400 Series speaker mic is built super tough to withstand heavy use in demanding environments. Crystal clear audio, standard 3.5mm accessory jac, Kevlar™ Re-enforced coil cabling and dust, water, vibration and wind resistant. The ultimate OEM alternative at great savings!
Feature
1. IP67,Acceptable for fire-fighting Dep.,Sea patrolman/woman,army etc.
2.High quality speaker and noise-cancelling mic provide loud and clear sound.
3.Environment PU cable reinforced with Kevlar, robust design.
4.Standard 3.5mm earphone jack.
5.Sturdy plastic 360 rotating clip. |
1. Speaker Specification
Type |
Transducer Moving coil dynamic speaker |
Impedance |
8Ω±15% @1KHZ |
Sensitivity |
96±3dB @1KHZ |
Resonance freq |
(F0) 600HZ±20% |
Frequency respond |
F0~9KHz |
Rated input power |
1W |
Maximum input power |
2W |
2. Microphone Specification
Sensitivity Range |
-47 ± 2dB RL=2.2K Ω Vs=3.0V(DC) 1KHz 0dB=1V/Pa |
Impedance Max |
2.2KΩ 1kHz (RL=2.2KΩ) |
Frequency |
50-1600Hz |
Current Consumption Max |
0.5uA RL=2.2KΩ Vs=3.0V(DC) |
Operation Voltage Range |
1.0V-10V (DC) |
Max Sound pressure Level |
115dB S.P.L 1 KHz THD<2% |
This lapel speaker mic has built-in noise cancelling unidirectional microphone and a clear loudspeaker. Comes with everything you need built in one unit, not a detachable cord, like some models for sale. Also, this speaker microphone has a 3.5 mm female jack to attach a listen-only radio earcoil. Comes with a one-year warranty
