| Prod Model: |
HDSP0108M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Hdcp: |
1.2 |
| HDMI Verson: |
1.3 |
| Color: |
Black |
| Housing: |
Iron |
| Player Type: |
HDMI Splitter |
Product Description

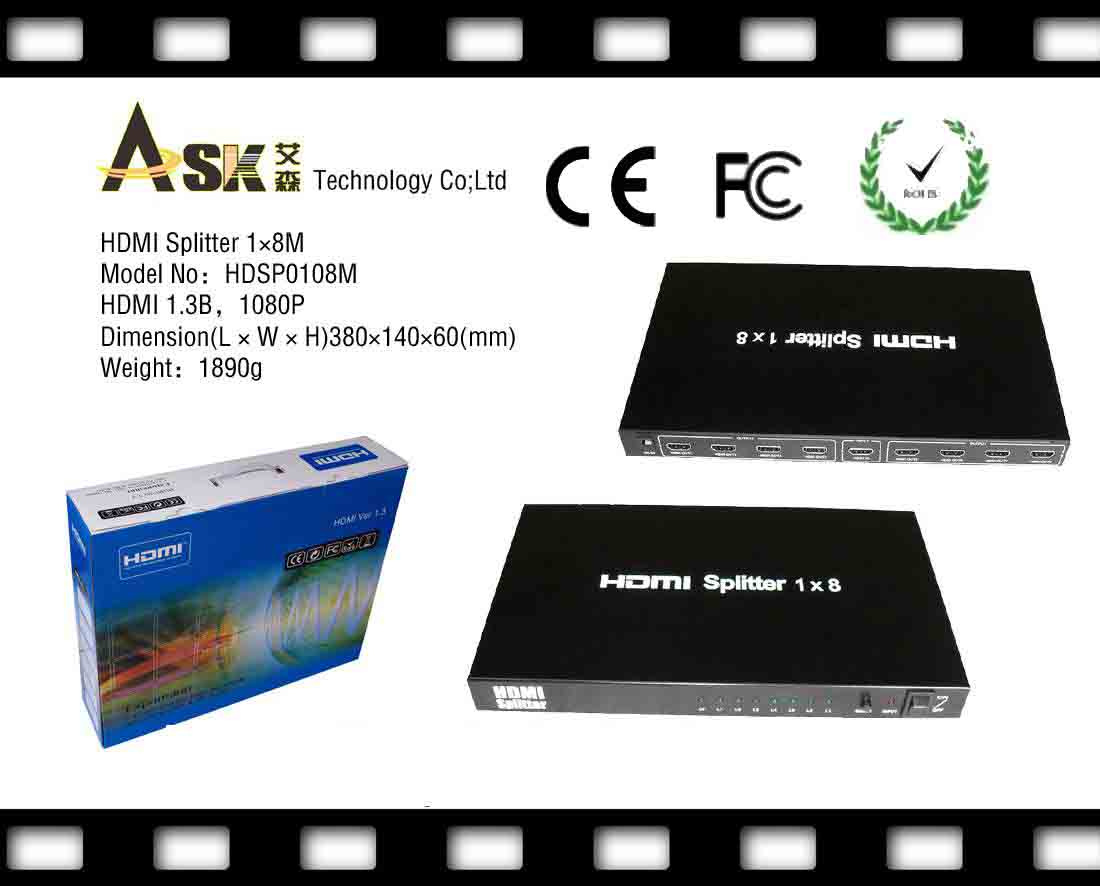

HDMI Splitter mini 1x8
1. HDMI version: HDMI 1.3b
2. Support 3D
3. Support Deep Color 30bit, 36bit
4. Match RoHS, FCC, CE standard request
5. Support up to 1080p/60Hz. Support xv-YCC.
6. Input 15M, output 25M
Brief introduction of HDMI Splitter 1*8 mini
The 1x8 HDMI Splitter use a single HDMI source, accessing to multiple HDMI sinks. The Splitter allows one HDMI devices to be split easily to eight HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.
FEATURES of HDMI Splitter 1*8
1. One HDMI 1.3 input signal split to eight HDMI 1.3 sink devices
2. Support deep color 30bit, 36bit 3. Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
3. Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
4. Support signal retiming
5. Support input up to 15metres AWG26 HDMI 1.3 standard cable length,
6. Output up to 25metres AWG26 cable length
7. No loss of quality
8. Installs in minutes
9. Need DC5V/3A power supply
The connection of HDMI Splitter1*8m
1. Connect one cable from HDMI source devices into HDMI Splitter input.
2. Connect one cable from each display (monitor or projector) into the HDMI Splitter outputs.
3. Connect 5V power supply to the Mini HDMI 1x8 Splitter.
|
Name of the product |
MINI 1*8 HDMI Splitter |
|
Signal Inputs/Output |
1 input 8outputs |
|
HDMI Connector |
type A 19 pin male |
|
HDMI Version |
HDMI 1.3b |
|
HDCP Version |
HDCP1.2 |
|
HDMI Resolution |
24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
|
Support video color format |
24bit/deep color 30bit 36bit |
|
Support audio format |
DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD |
|
Max bandwidth |
225MHz |
|
Max baud rate |
6.75Gps |
|
Input cable distance |
≤15m HDMI AWG26 |
|
Output cable distance |
≤25m AWG26 HDMI 1.3 standard cable |
|
Input/output DDC Signal |
5 volts p-p (TTL) |
|
Input/Output TMDS signal |
0.5~1.5Volts p-p |
|
Max working current |
1.4A |
|
Power adapter format ..Input |
AC (50HZ, 60HZ) 100V-240V; Output: DC5V/3A |
|
Operating Temperature range |
(-15 to +55c) |
|
Operating Humidity range |
5 to 90%RH (No Condensation)
|
|
Dimension (L x W x H) |
280*155*24(mm) |
|
Net Weight |
1030g |
|
Warranty |
1 Year |
|
Power Supply |
5.5V DC@3A |
|
AC Power Adapter |
USstandard, UK standard and so on |
|
Regulatory Approvals |
ROHS,CE,FCC |
|
Note: Specifications are subject to change without notice. |
