| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe |
| Housing: |
Steel |
| Colour: |
Black |
| Size: |
140*95*30mm |
| Gross Weight: |
0.65kg |
| Video Format: |
HDMI |
| Player Accessories: |
HDMI Cables, HDMI Tvs |

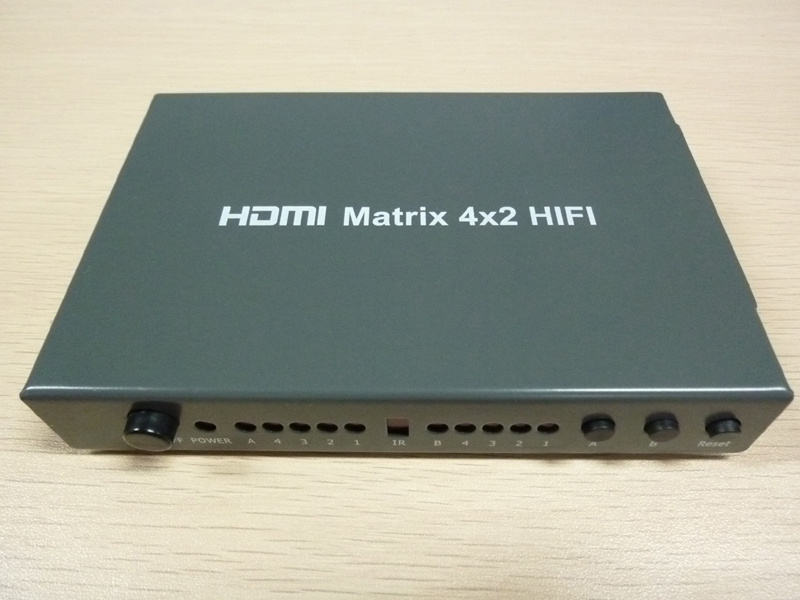

Product Description
FEATURES
Four HDMI 1.3 input signals switched or split to two HDMI 1.3 sink devices
One of the HDMI outputs is with audio output by SPDIF and 3.5mm stereo Mini-Jack.
HDCP 1.2 protocol compliant
With HDMI-CEC function.
Support deep color 30bit, 36bit
Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Support signal retiming
Support input up to 15metres AWG24 HDMI 1.3 standard cable length,
Output up to 25metres AWG24 cable length
Inputs can be switched with the IR remote control, also can be controlled by two buttons.
It can smartly jump over those input sources which are not connected.
With the smart function of memory, it can come back to the latest status when restarted Or reconnected.
No loss of quality
Installs in minutes
Need DC5V/2A power supply
CONNECTING AND OPERATING
1. Connect one cable from each HDMI source devices into HDMI Matrix inputs.
2. Connect one cable from each display (monitor or projector) into the HDMI Matrix Outputs.
3. Connect audio output Optical or 3.5mm stereo Mini-Jack audio Equipment.
4. Use the RMT-IR remote control port to remotely switch between sources.
5. Connect 5V power supply to the HDMI 4x2HIFI Matrix.
PECIFICATIONS: HDMX0402HIFI
HDMI version...HDMI 1.3b
HDCP version...HDCP1.2
HDMI resolution...24/50/60fs/1080p/1080I/720p/576p/576I/480p/480I
Support video color format...24bit/deep color 30bit, 36bit
Support audio format...DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Audio output...Optical and 3.5mm stereo Mini-Jack
Max transmission bandwidth...225MHz
Max baud rate...6.75Gbps
Input/Output TMDS signal...0.5~1.5Volts p-p
Input/Output DDC signal...5Volts p-p (TTL)
Input cable distance...15m AWG24 HDMI 1.3 standard cable
Output cable distance...25m AWG24 HDMI 1.3 standard cable
Max working current...900mA
Power adapter format...Input: AC (50Hz, 60Hz) 100V-240V; Output: DC5V/2A
Operating Temperature range...(-15 to +55C )
Operating Humidity range...5 to 90%RH (No Condensation)
Dimension (L x W x H)...134x90x25 (mm)
Weight...340g
|
SPECIFICATIONS |
HDMX0402HIFI |
|
HDMI version |
HDMI 1.3b |
|
HDCP version |
HDCP1.2 |
|
HDMI resolution |
24/50/60fs/1080p/1080I/720p/576p/576I/480p/480I |
|
Support video color format |
24bit/deep color 30bit, 36bit |
|
Support audio format |
DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD |
|
Max bandwidth |
225MHz |
|
Max baud rate |
6.75Gbps |
|
Input/Output TMDS signal |
0.5~1.5Volts p-p |
|
Input/Output DDC signal |
5Volts p-p (TTL) |
|
Input cable distance |
15m HDMI AWG26 |
|
Output cable distance |
25m AWG26 HDMI 1.3 standard cable |
|
Max working current |
900mA |
|
Power adapter format Input |
AC (50Hz, 60Hz) 100V-240V; Output: DC5V/2A |
|
Operating Temperature range |
(-15 to +55) |
|
Operating Humidity range |
5 to 90%RH (No Condensation) |
|
Dimension (L x W x H) |
134x90x25(mm) |
|
Weight |
340g |
