| Prod Model: |
HDCN0020M1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Hdcn0020m1 |
| Audio Output: |
L/R+Spdif |
| HDMI Resolution: |
24/50/60fs/1080P/1080I/720p/576p/576I/480p/480I |
| Support Video Color Format: |
24bit/Deep Color 30bit,36bit |
| Power Adapter Format: |
Input: AC (50Hz, 60Hz) 100V-240V; Output: DC5V/1A |
| Max Bandwidth: |
300MHz |
| Input Cable Distance: |
≤15m AWG26 HDMI Standard Cable |
| Output Cable Distance: |
≤20m AWG26 HDMI Standard Cable |
| Sample Order: |
Welcomed |
| Payment: |
Paypal,Western Union,T/T |
| Player Type: |
Blue-Ray Player |
| Sound Channel: |
5.1 |
| Home Audio & Theater Speaker Mount: |
Wall Mount |
| Speaker System Audio Output Mode: |
Stereo |
| Control: |
Wireless |
| Home Audio & Theater Watts Per Channel: |
<50W |
| HDMI Quantity: |
1 |
| FM: |
Without FM |
| Finish: |
Metal |
Product Description

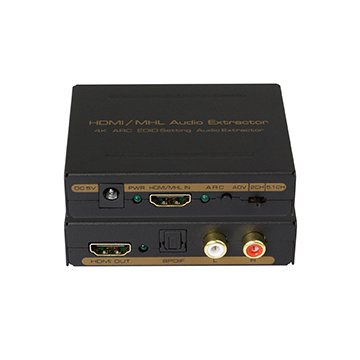

HDMI /MHL Audio (SPDIF+R/L) Extractor (4K,ARC,EDID Setting Audio Extractor)
The audio extractor is one device that can support 3D, 4KX2K,ARC and it allows the one HDMI or one MHL source input and one HDMI output connected to one HD Display (like TV or Projector) and extract the audio to one SPDIF audio out+One LR Stereo audio out. Also the device supports ARC function.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
FEATURES
l One HDMI or One MHL input converter to one HDMI+ One SPDF+ One LR Audio Out
l Output audio support: SPDIF+R/L analog Audio Output
l Support Full HD 1080P, Full 3D,4K*2K resolution
l Support ARC Function: Without adding one extra HDMI Cable, it can reverse the audio to the AV Amplifier by HDMI Cable connection with HD TV while the HD TV receive the audio and video content.
l HDMI/ MHL working in dual mode, can reduce the number of ports
l HDMI to achieve the synchronization of audio signal separation. There are ADV /
2.0CH / 5.1CH three kinds of audio mode options
l LED indication: when source or sink is working, LED relative to is light.
l No loss of quality
l Installs in minutes
l Need DC5V/1A power supply
he accessories with the machines list
1,5V power adapter 1pcs
2,User manual 1pcs
3,MHL-HDMI cable 1pcs (Optional)
SPECIFICATIONS: HDCN0020M1
HDMI resolution ............ ......24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format ..........................24bit/deep color 30bit,36bit
Audio output........................................... L/R+SPDIF
Max bandwidth............................................300MHz
Max baud rate............................................9.0Gbps
Input/Output TMDS signal .............................0.5~1.5Volts p-p(TTL)
Input/Output DDC signal ................................ 5Volts p-p (TTL)
Input cable distance..... ............. ...≤15m AWG26 HDMI standard cable
Output cable distance......................≤20m AWG26 HDMI standard cable
Max working current..........................................500mA
Power adapter format.........Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range.............................. (-10 to +55ºC)
Storage Temperature range................................. -20 to +60ºC
Operating Humidity range.....................10 to 90%RH (No Condensation)
Storage Humidity range.....................5 to 95%RH (No Condensation)
Dimension (L x W x H) ...............................84.5X61.8X21 (mm)
Weight....................................................135g
