| Prod Model: |
HDV-2M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Digital Coaxial or Optical Toslink Spdif Into Ster |
| Input Audio: |
Coaxial or Toslink Digital Audio |
| Output Audio: |
L/R Audio |
| Input Audio Connector: |
Toslink, 1xrca(R/L) |
| Output Audio Connector: |
2xrca(R/L) |
| Sampling Rate: |
32, 44.1, 48 and 96 kHz |
| Power Supply: |
5V1a |
| Size(Lxwxh): |
51X41X26mm |
| Power Adapter: |
UK,Us,EU,Au Plug |
| Warranty: |
1 Year |
| Home Audio & Theater Speaker Mount: |
Wall Mount |
| Home Audio & Theater Watts Per Channel: |
<50W |
| Player Type: |
Blue-Ray Player |
| Speaker System Audio Output Mode: |
Stereo |
| Control: |
Wireless |
| Sound Channel: |
7.1 |
| FM: |
Without FM |
| HDMI Quantity: |
1 |
| Finish: |
Metal |
Product Description

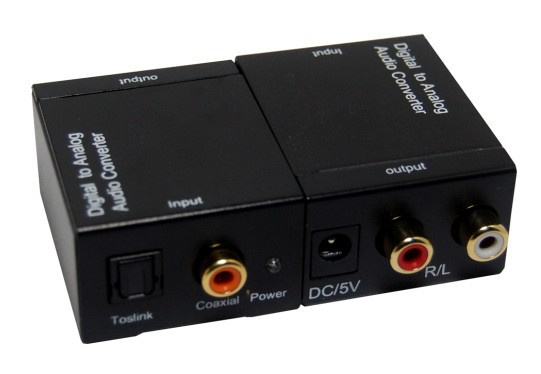

Digital Coaxial or Optical Toslink SPDIF into Stereo 3.5mm Jack or LR Digital to Analog Audio Converter 1.0 Introduction
This Digital to Analog Audio Converter is designed for either home or professional audio switching. It converts Coaxial or Toslink digital audio signals to analog L/R audio and available for connection to an external device such as an amplifier viastandard RCA-style jacks. This Converter is small in size and quite easy to install.
2.0 Features
This Converter has many features that enable it to perform in a superior manner.Among those features you will find:
1) Converts Coaxial or Toslink digital audio signals to analog L/R audio
2) Supports sampling rate at 32, 44.1, 48 and 96 KHz.
3) 24-bit S/PDIF incoming bit stream on left and right channels
4) Provides electromagnetic-noise-free transmission.
5) Easy to install and simple to operate.
3.0 Specifications
Signal Inputs/Output | |
Input Audio | Coaxial or Toslink digital audio |
Output Audio | L/R audio |
Connector | |
Input audio connector | Toslink,1XRCA(Coaxial) |
Output audio connector | 2XRCA(R/L) |
Sampling rate | 32, 44.1, 48 and 96 KHz |
Mechanical | |
Size(LxWxH) | 51x41x26mm |
Weight (Net) | 78g |
Warranty | |
Limited Warranty | 1 Year Parts and Labor |
Environmental | |
Operating Temperature | 0 ºC to +70ºC |
Operating Humidity | 10% to 85% RH (no condensation) |
Storage Temperature | -10ºC to +80ºC |
Storage Humidity | 5% to 90% RH (no condensation) |
Power Requirement | |
External Power Supply | DC 5V 1A |
Power Consumption | 0.5 watts (max) |
Regulatory Approvals | |
Converter Unit | FCC,CE,UL |
Power Supply | UL,CE,FCC |
Accessories Adapter | |
AC Power Adapter | US standard, UK standard and so on |
User Manual | English Version |
