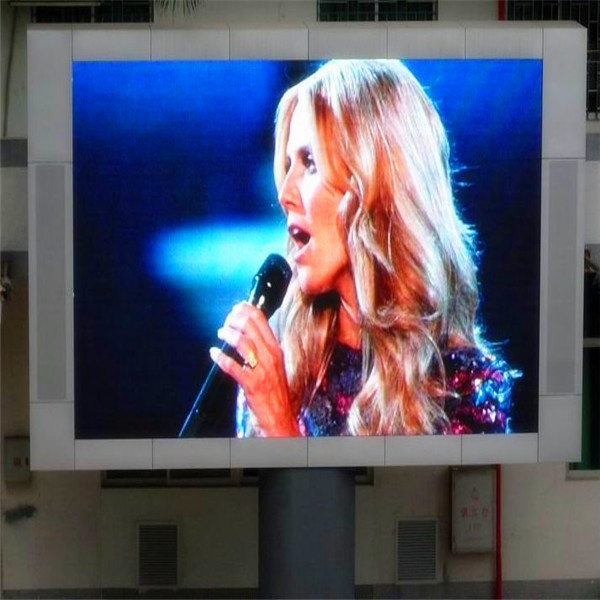

HD Indoor Full Color LED Display for Pixel 6mm
| Price: |
US $ 600-800/Square Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
P6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| IP Grade: |
IP60 |
| Module Size: |
192*96 |
| Color: |
1r1g1b |
| Scanning: |
1/16 Or1/8 |
| Warranty: |
3-5 Years |
| Life Span: |
>100,000hours |
| Mtbf: |
10000hours |
| Working Voltage: |
AC220V/110V±10% DC5V/12V |
| Refresh Frequency: |
350Hz |
| Frame Frequency: |
60Hz |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Pitch: |
6mm |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Density: |
27,777 dots / m² |
| Scanning Mode: |
1/8 Scan |
| System Operating Platform: |
WIN XP |
| Display Type: |
LED Video Display |
| Application: |
Stage Performance |
| IP Rating: |
IP60 |
| Certification: |
SGS |
Product Description
Feature and Advantage1. Waterproof:IP312. Best viewing distance: 6-150m3. White balance brightness: 3000-4000CD/sqm4. Horizontal viewing angle: 140degree5. Working temperature: -30degree-+80degree6. Life span: More than 100, 000hours7. Contrast ratio: 4000: 18. Products consumption: 800WApplication and Market1. ApplicationIndoor advertising LED display widely use in shopping mall ,theater,clubs,bars,bank,hotel,restaurant,stadium,airport,bus station ,meeting room,wedding,subway,book store etc.2. Market:North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe| Description | Technical parameter |
| Unit module | Module size | 384*192mm |
| Pixel pitch | 6mm |
| Pixel density | 27,777dots/m2 |
| Pixel configuration | 1R1G1B |
| Led specification | ellipse |
| Pixel resolution | W: 64dots*H: 32dots |
| Cabinet | Dimension | 1152mm*960mm*130mm |
| Quantities of module | 15pcs |
| Power supply | 4pcs |
| Scan mode | 1/32 |
| Weight | 45kg/m2 |
| Best viewing angle | 6-150m |
| Temperature | Storage: -35° C~+85° C |
| Working: -35° C~+85° C |
| Thickness | adjustable |
| Remarks: cabinet size can changed, upon project need. |
| Power | Working voltage | AC220V/110V± 10% |
| Average power consumption | 400W |
| Max. Power consumption | ≤ 800W/sqm |
| Current | ≤ 20mA(single LED) |
| Control system | CPU | Pentium4 or above |
| Operating system | Windows2000/XP/Vista/Windows7 |
| Control method | Synchronization & Asynchronization |
| Main technical parameter | signal input(Video processor) | AV,S-Video,VGA,DVI,HDMI,SDI,DP |
| Drive type | Constant Current driver IC |
| Refresh frequency | ≥ 400Hz |
| Grey scale/colors | 256 levels of each color(R/G/B)/16.7M color |
| Brightness of white balance | 3000-4000cd/sqm |
| Brightness adjustment | 256 levels of each color(R/G/B)by software |
| Operating ambient humidity | 10%--95% |
| Video signal | PAL/NTSC |
| Control system | DVI display card+full color controller card |
| MTBF | ≥ 10, 000hours |
| Life span | ≥ 100, 000hours |
| Flatness | Tolerance of inter pixel ≤ 0.3mm |
| Tolerance of modules clearance≤ 0.6mm |
| Power switch | Automatic switch |
| Display mode | 1024*768 |
| Communication distance | Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m.
Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KM |
| Software | LED media player
|
Our service1. Your inquiry related to our products or price will be replied in 24hrs2. OEM, any your customized lightings we can help you to design and put into product3. Distributorship are offered for your unique design and our current models4. Protection of your sales area, ideas of design and all your private informationTrade Terms:| Payment terms: | 35% deposit before production, 65% balance before shipping
-T/T:
-Paypal
-Western Union
-Escrow |
| Packing: | -Standard Export Carton with fully Polyfoam or Pearl Wool
-Flight case;
-Anti-shaking wooden case |
| Shipping: | LED module: 3 to 5 working days upon receiving deposit payment
LED display: 5 to 8 working days upon receiving deposit payment |
| After-Sales-Service: | -Lifetime with professional engineer support.
-Within 1 year, supply spare parts for free if the machine has quality
problem |
Our Company: FOXGOLDEN GROUP LTD (www.foxgolden.com)is a professional high quality LED display manufacturer. Since 2004, we have been dedicating to the aim that producing high quality products, and now FOXGOLDEN has been well integrated in terms of R&D, produce, project, capital and marketing. On October 13th, 2015, FOXGOLDEN became official listed company at Shenzhen equity trading Center in Shenzhen. equity code is 666153, which is another promising take-off of FOXGOLDEN . At present, Foxgolden Group Limited has formed a series of LED display products: outdoor LED display, indoor LED display, Portable LED screen, Foldable LED screen, Soft LED screen rental LED display, stadium LED display, small pitch pixel LED display etc..Till to 2015,We have 11-year production experience. We have 11-year design experience of offering solution, installation, and after-sales service, etc. Faced with a variety of requirements, we offer flexible diverse solutions. We offer 24-hour all-direction online service. We achieve customer complaint rate below 0.1% and win widespread high praise and good reputation from customers and public. Package and shipping:1.Anti-shocking wooden case: Usually use for cabinets.2.Flight case:Usually use for cabinets3.Carton box:Usually use for modules Transportation:1.By sea,2.By air ,3.By express FAQQ1: When is the delivery time?A1: we will accomplish manufacturing within 10 days after receiving the deposit. Q2: What is the payment method?A2: We support a variety of payment methods, the most common is the TT. Q3: What's the pixel pitch for Outdoor LED Display Screen?A3: Outdoor (P6mm / P8mm/P10mm) Q4: Where is it used for?A4: Outdoor & rental use. Widely used for backdrop of staging event, rental business, live show, concert, etc. Q5: Can it play HD video?A5: Yes, it can realize HD video function with Linsn controlling system. Q6: What's the controlling system?A6: Our standard controlling system for this model is Linsn, Novastar. Also support other controlling system, like Xixun,TF, Colorlight, etc. Q7: How about the size of project?A7: Please offer the size with "width by height" of project. We will offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered. Q8: How about your service?A8:1. Lifetime free maintenance and upgrade.2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.3. Customer satisfaction tracking report.4. Free technician training.5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.6. Special service for big project, such as stadium, exhibitions, squares and so on.
