| Prod Model: |
RSM-100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Communication: |
Wired |
| Connector: |
Sepura STP8000 or Other Model Connector |
| Voice: |
Loud and Clear |
| Color: |
Black |
| Use For: |
Security, Policeman, Swat, etc |
| Warranty: |
12 Months |
| Cerficate: |
CE/RoHS |
| Cable: |
Kevlar+PU |
| Material: |
TPU Black |
| Item: |
Handheld Microphone/Speaker /Remote Control Microp |
| Style: |
Handheld Microphone |
| Signal Transmission: |
Wired |
| Sound Channel: |
Mono |
| Application: |
Two Way Radio/Walkie Talkie |
| Connector(',s): |
for Motorola, Kenwood, Icom, Hytera Connector, Rtc |
Product Description

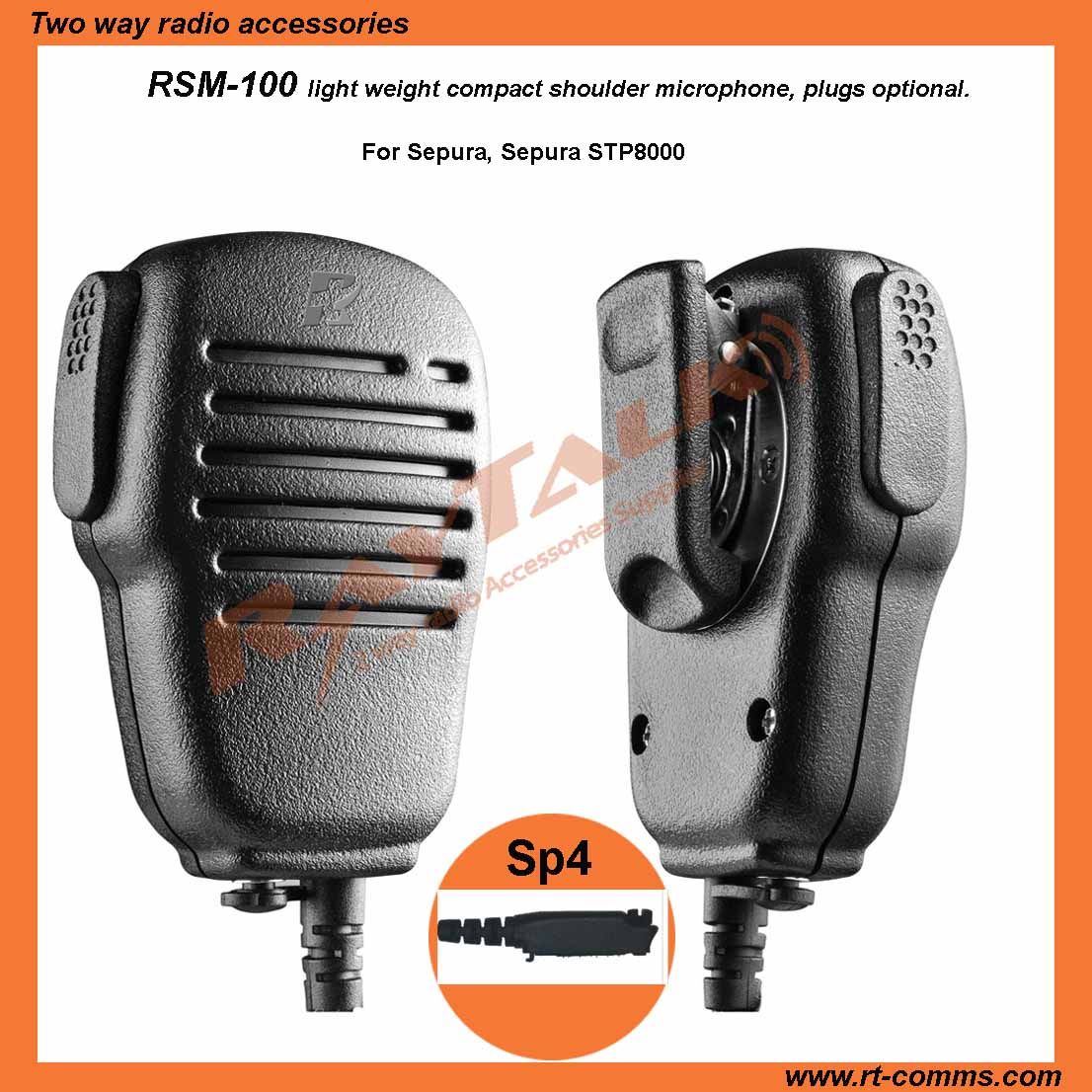

Handheld microphone/speaker /remote control microphone for sepura stp8000
Product Description
1. Professional grade
2. Loud and clear sound
3. Built in 3.5mm accessory jack
4. Clothing clip 360 degree rotation
5. Commercial applications
6. light weigth Compacts shoulder microphone,smaller,but durable
7. Environmental PU cable with Kevlar™ re-enforcement
8. Powerfull speaker produces excellent transmitted audio clarity
9. All units feature heavy grade industrial jackted cables and excellent strain relief for maximum life
10. 2-way microphones handsfree remote speaker microphone with 3.5mm jack
11. Connector is optional
12. High constructed polycarbonate housing
Microphone Specifications
Dimension: Ø 9.7 X 6.5mm
Sensitivity: -40 ± 3dB
Direction: Omnidirectional
Output Impedance: 2.2K Ω
Current Consumption: 500A
Working Voltage: 1.5V
Audio Response: 50Hz 10kHz
Speaker Specifications
Dimension: Ø 36mm
Impedance: 8 Ω ± 15%
Output Sound Pressure Level: 80± 3dB
Power Rating: Normal. 05W
Maximum 1W
Frequency Range: 280Hz-6kHz average
SPL-10dB
Cable Specifications
Cable Diameter: Ø 3.8mm
Cable Length: 45cm 1.5m
Colour: Black
Material: Thermoplastic polyurethanes
Optional Extras
Receive only earpiece to be plugged into 3.5mm socket on the microphone
Optional connectors:
For Motorola/Kenwood/Icom/HYT/Vertex//Sepura/Tait, etc.
For:
Motorola:
CP040, CP140, CP150, CP160, CP180, CP200, CP340, CP360, CP380, EP450, GP3188, GP3688, GP300, GP600, GP88, GTX, GTX800, GTX900, P110, P1225, P1225LS, P1325, P225, SP1225, TALKABOUT, T280, TA2280, TA280, TA289, VISAR, I305, GP1280, GP140, GP240, GP280, GP320, GP328, GP329, GP338, GP339, GP340, GP344, GP360, GP380, GP388, GP540, GP580, GP640, GP680, GP688, GP750, EX500, EX560, EX600, GL2000, GP328PLUS, GP338PLUS, PTX700PLUS, PTX760PLUS, GP628, GP644, HT1000, GP1200, GP2010, GP2013, GP900, HT1100, HT6000, JT100, JT1000, MOBIUS, MT2000, MT2100, MTS1200, MTS2000, MTX8000, MTX838, MTX868, MTX9000, MTZ2000, MTP850, MTP800, MTH650, HTH800, MOTOTRBO, XPR6300, XIRP8200, XIRP8208, XIRP8260, XIRP8268, XPR6350, XPR6500, XPR6550, XPR6580, XBR6300. XBR6350, XBR6500, XBR6550, XBR6580, DP3400, DP3600, DGP4150, DGP6150, GTP800, APX7000
Kenwood:
TK208, TK308, TK2102, TK2107, TK238, TK3102, TK3107, TK338, TK2100, TK2100K2, TK260, TK260G, TK261, TK270, TK272, TK272G, TK278, TK3100, TK3100K2, TK3101, TK360, TK360G, TK370, TK370G, TK372, TK372G, TK373G, TK378, TK259, TK355, TK359, TK250, TK250G, TK250N, TK350, TK350G, TK350N, TK353, TK353N, TK430, TK431, TK2140, TK2160, TK2170, TK2360, TK3140, TK3148, TK3160, TK3170, TK3173, TK3360, TK2212, TK2300, TK2302, TK3212, TK3300, TK3302, TK2200, TK2200L, TK2200P, TK2202, TK2202L, TK2207, TK3200, TK3200LP, TK3200P, TK3201, TK3202, TK3207, TK3302U, TK4100, TK490, TK180, TK190, TK280, TK290, TK380, TK390, TK480, TK481, TK5400, TK3130, TK3131, NX200, NX300, TK-208, TK-308, TK-2102, TK-2107, TK-238, TK-3102, TK-3107, TK-338, TK-2100, TK-2100K2, TK-260, TK-260G, TK-261, TK-270, TK-272, TK-272G, TK-278, TK-3100, TK-3100K2, TK-3101, TK-360, TK-360G, TK-370, TK-370G, TK-372, TK-372G, TK-373G, TK-378, TK-259, TK-355, TK-359, TK-250, TK-250G, TK-250N, TK-350, TK-350G, TK-350N, TK-353, TK-353N, TK-430, TK-431, TK-2140, TK-2160, TK-2170, TK-2360, TK-3140, TK-3148, TK-3160, TK-3170, TK-3173, TK-3360, TK-2212, TK-2300, TK-2302, TK-3212, TK-3300, TK-3302, TK-2200, TK-2200L, TK-2200P, TK-2202, TK-2202L, TK-2207, TK-3200, TK-3200LP, TK-3200P, TK-3201, TK-3202, TK-3207, TK-3302U, TK-4100, TK-490, TK-180, TK-190, TK-280, TK-290, TK-380, TK-390, TK-480, TK-481, TK-5400, TK-3130, TK-3131, NX-200, NX-300
HYT(Hytera):
TC-268, TC-368, TC-268S, TC-368S, TC-370M, TC-380M, TC-3000, TC-3600, TC-3600M, PT-790, TC-780, TC-500, TC-600, TC-700, TC-610, TC-620, TC-2110, TC-1600, TC-510, CPS, CP-380, CP-330, CP-150, CP-350, CP-220, TC-500S, TC-585, TC-610S, TC-720S, TC-710, TC-510
