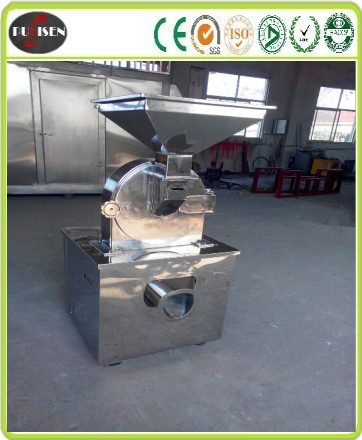

Ginger Powder Maker
| Price: |
US $ 1200/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
China |
| Material: |
Full Stainless Steel |
| Certificate: |
CE, BV, SGS, GMP, RoHS, ISO |
| Warranty: |
1-3 Years |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Application: |
Spice, Herb,Seeds, Grains Grinder |
| Appearance: |
Horizontal |
| Press Series: |
Fifth |
| Condition: |
New |
| Customized: |
Customized |
| Voltage: |
110V, 220V, 380V |
| Type: |
Grinder, Miller, Crusher for Fine Powder |
| Press Materials: |
Spices, Herbs, Grains, Seeds,Nuts, Coffee Beans... |
Product Description
Spice grinder
Herb grinder
Pepper powder miller
Sugar powder grinder
Industrial grinder
Commercial grinderTechnical data sheet:| Model | PLS-180 | PLS-250 | PLS-320 | PLS-350 | PLS-400 |
| Material | Full SS 304 |
| Voltage(v) | 220/380 | 380 |
| Power(kw) | 2.2 | 5.5 | 7.5 | 11 | 15 |
| Speed(rpm) | 4200 | 4200 | 4200 | 4200 | 4200 |
| Fineness(mesh) | 10-150 |
| Capacity(kg/h) | 50-150 | 200-300 | 400-500 | 600-800 | 800-1000 |
| Size(mm) | 480X520X1040 | 750X600X1260 | 780X700X1350 | 800X900X1550 | 820X900X1700 |
| Weight(kg) | 75 | 180 | 260 | 320 | 380 |
Working principle:
The use of centrifugal hammer percussion, and collision, cutting and crushing wall and the collision among the materials themselves, the crushed material crushed. , material can be directly from the eduction in grinding chamber, the discharging mouth, the general material should pass the cotton bags to collect after crushing, after crushing materials collected in the bag, the air out of a bag of tiny hole, will not be fine powder, thereby not waste, no pollution effect. Particle size is determined by the change of different mesh sieve.Performance and features:
This herb grinder structure is simple and strong, stable running and crushing material quickly and evenly, the result is good. Native full stainless steel material production, casing inside wall) (crushing hammer and smash all the precision machined so as to achieve smooth surface, easy to clean, changed the ordinary grinder wall roughness, easy, difficult to clean up the phenomenon of accumulated powder, production of food, medicine, chemical industry and so on can meet the national standards, to meet the GMP health requirements.
Application:
Mainly used in chemical materials, traditional Chinese herb medicinal materials including roots, branches and block class materials, all kinds of oil content of grain, grain and other hard and brittle materials.
Small spice grinderTechnical data sheet:| Model | PLS-820 | Voltage | 220V/380V |
| Power | 1.5/1.8/2.5/3.0KW | Speed | 1420 r/min |
| Fineness | 50-200mesh | Production capacity | 50-60kg/h |
| Machine size | 65*30*45cm | Machine weight | 45kg |
| Material | Full 304 stainless steel | Adjustable | Available |
| Features | Continuous type feeding production |
Application:
Applicable to the supermarket and shop counters, grain processing, food processing, such as store processing range.
2. All kinds of food contain sesame seed, walnut, rice, black rice, beans, mung beans, peanuts, lotus seed, corn, sorghum,
barley, buckwheat, oats, etc.
3. All kinds of dry herbs containing almonds, poria cocos, red jujube, Gordon euryale seed, medlar, yi, hawthorn, HuaiShan,
radix polygoni multiflori, red bean, donkey-hide gelatin, frankincense, dodder, angelica, dangshen, astragalus root, etc.
Working principle:
Connecting shaft and motor shaft directly connected, the motor starts running, drives connecting shaft and sleeve on the
connection shaft of mill run together. For material from the hopper into the grinding powder, mill spindle and grinding sets
of relative operation, ground into small pieces of material particle crushing force; Ground of small particles under the spiral
movement of mill was brought into two piece of grinding, grinding indented relative operation, the material in a short period
of time were shattered into tiny particles (powder); Powder from grinding tooth ditch, thrown around, at the same time comes
on the mill powder plate down, out of the powder outlet.
Performance and features:
1. The new controller is no longer need to tighten nut to fixed, the regulator to adjust to the specified location, machine operation
does not affect the regulator in a fixed position, and no longer needs to be fixed. Old machine after the adjustment to the
specified location, you need to tighten nut to get stuck in, to make the regulator with machine rotation.
2. The installation of the four strong magnetic device mouth, adsorption machine grinding abrasion produced in the process
of iron powder, to ensure the food hygiene and safety.
3. Shorter connecting shaft, and tear open outfit simple convenient.
4. Stainless steel hopper is one-time stamping forming, no solder joints, more luxurious, more beautiful, more health.
5. Motor cover on both sides with six exhaust ventilation, it is conducive to motor cooling, protect motor; Second is to reduce
the resonance because of the seal in the cabinet, less vibration.
