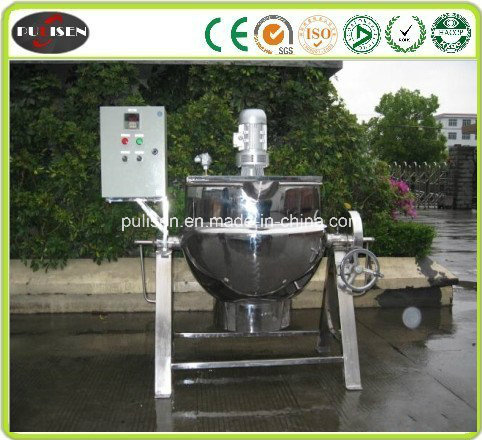

Electric Cooking Kettle

Prod Model:	PLS-100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:	China
Certificate:	CE, GMP, SGS, GOST, CCC, ISO, UL, TUV
Period Of Guarantee:	1 Year
Brand Name:	Pls
After-Sales Service Provided:	Engineers Available to Service Machinery Overseas
Material:	Stainless Steel
Capacity:	High
Heating Method:	Electric
Feature:	with Mixing Function
Customized:	Customized
Type:	Electric Heating Pot with Mixing
Voltage:	11ov, 220V, 380V,

Product Description

Electric cooking kettle, electric cooking pot with mixing,

1. Technical data sheet:

Model		PLS-50	PLS-100	PLS-200		PLS-300	PLS-400	PLS-500	PLS-600	PLS-800	PLS-1000
Power(KW)		0.55	0.55	0.75		1.1	1.1	1.5	1.5	2.2	2.2
Capacity(L)		50	100	200		300	400	500	600	800	1000
Diameter(mm)		Φ600	Φ700	Φ800		Φ900	Φ1000	Φ1100	Φ1200	Φ1300	Φ1400
Pot depth(mm)		400	450	530		630	680	730	780	830	900
Heating area()		0.45	0.58	1.12		1.42	1.75	2	2.3	3.2	3.9
Pipe Size	Steam pipe	3/4''				1''				2''
	Condensate pipe	3/4''			1''
Working pressure		≤0.09Mpa(The design can be adjusted according to customer usage)
Mixing speed		36r/min (The design can be adjusted according to customer usage)

2. Product description:
This stainless steel pot and mezzanine steam pan, widely used in candy, pharmacy, dairy products, beverage, honey,
pastries, line, such as canned food processing, can also be used in large restaurant or dining room to boil soup, cook,
stew, boil congee, etc., is a food processing to improve quality, shorten the time, good equipment to improve.

3. Working conditions:
Steam as heat source, has the large heating area, high thermal efficiency, uniform heating, heating up fast, easy to
control temperature and other characteristics, suitable for candy, beverage, canned food processing and
pharmaceutical industry and drug processing, such as tilting type and fixed type.

4. The range of application:
Vertical sandwich pot and steam pot, cooking pot. This equipment is widely used in candy, pharmacy, dairy,
alcohol, cakes and sweetmeats, beverages, canned, sauced meat and other food processing, can also be used in
large restaurant or dining room to boil soup, cook, stew, boil congee, etc., is a food processing to improve quality,
shorten time, improve the working conditions of the good equipment.

5. Characteristics:
Vertical sandwich pot with certain pressure steam as heat source, sandwich pot with large heating area,
high thermal efficiency, uniform heating, short liquid boiling time, heating temperature easy to control, etc.
Sandwich pot pot inner pot body (pan) with acid and heat resistant austenite stainless steel manufacturing,
equipped with a pressure gauge and relief valve, beautiful, easy installation, convenient operation, safe and reliable.

6. Structures:
(a). The vertical sandwich pot is of the bilayer structure composed of inner and outer spherical pot body form,
both inside and outside the spherical pot body intermediate sandwich ventilation with steam heating.
(b). The structure form: divided into tilting type sandwich pot, vertical (fixed), sandwich pot structure according to
the process need to mix with belt or without mixing equipment.

7. The pot body material:
(a). The inner pot body (SUS304 stainless steel/SUS316L), outer pot body carbon steel Q235 - B),
outer coating antirust paint.
(b). Both inside and outside all stainless steel pot body (SUS304 / SUS316L).

8. Supporting feet form:
(a). Vertical sandwich pot: three pyramid form, round pipe.
(b). Tilting type sandwich pot: channel steel scaffolding.

9. Note: the other can according to customer's requirements, customized non-standard design.
