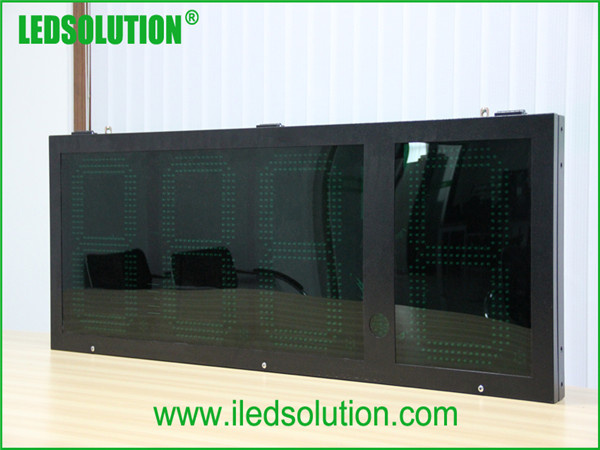

Gas Oil Station New Outdoor LED Digital Gas Price Display From Ledsolution
| Price: |
US $ 300/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
LS-GP-8888-15INCH-C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
3,000nits |
| Cabinet Size: |
1280X480mm |
| Panel Weight: |
9kg |
| Display Color: |
Red/Yellow/Green/ White |
| Communication: |
RF or 3G or RS232 |
| Digital Design: |
7 Segment |
| Tube Chip Color: |
Single Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
10mm |
| Average Power Consumption: |
180W / m² |
| Pixel Density: |
10000 dot / m² |
| Scanning Mode: |
Static Scan |
| Display Type: |
Segment LED Display |
| Certification: |
CCC |
| Pixel Configuration: |
1r or 1g |
| Display Function: |
Digital |
| Application: |
Gas Station |
Product Description
LEDSOLUTION LED Gas Price Sign/Gas Price Changer
Features:
1) For Outdoor Gas price station to show gas price;
2) Weatherproof to IP65 standards;
3) Wide viewing angle;
4) Brightness from 3000nit onwards.
5) Color option: red/green/blue/white;
6) 15inch digital height;(option 8inch,10inch,12inch,20inch)
7) RF wireless communication, RF remote controller;
Specification:
| Parameter | Unit | Value |
| Brightness | nits | 3,000 |
| Viewing angle (50% brightness) | deg. | 60(+30/-30) |
| Panel weight | kg | 9 |
| Panel width | mm | 1,280 |
| Panel height | mm | 480 |
| Panel depth | mm | 72 |
| Panel material |
| Epoxy paint coated Cold rolled steel |
| Ingress protection (front/rear) | IP | IP65/IP43 |
| Operating temperature range | deg. C | -30 to +60 |
| Humidity operating | RH | 10% ~ 90% |
| Color |
| Red/Yellow/Green/ White |
| Digital design |
| 7 segment |
| LED Qty each segment | Pcs | 35 |
| LED Qty each digital | pcs | 245 |
| Brightness control | Levels | 8 |
| Contrast ratio |
| 1,000:1 |
| Input voltage (nominal) | VAC | 110 to 240 |
| Input power frequency | Hertz | 50 to 60 |
| Input power (max) | Watts / cabinet | 30(R/Y), 50(G/W) |
| Lifetime (50% brightness) | Hours | ≥100,000 |
| Red wavelength (dominant) | nm | 620~625 |
| Yellow wavelength (dominant) | nm | 590~595 |
| Green wavelength (dominant) | nm | 525~530 |
| White wavelength (dominant) | K | 6000 |
| Data interconnection |
| UTP Cat 5 |
| Communiation |
| RF |
