Prod Model: |

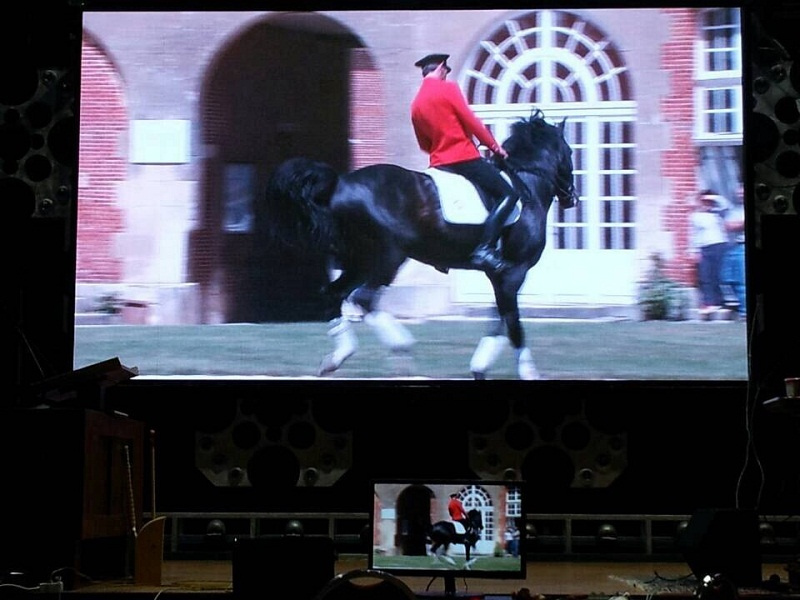

P6 Full Color Indoor LED Screen |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Brightness: |
More Than 2000 CD / Sqm |
Module Size: |
288*288 |
Cabinet Material: |
Iron or Aluminum |
Warranty: |
Two Years |
Display Type: |
LED Video Display |
Tube Chip Color: |
Full Color |
IP Rating: |
IP65 |
Pixel Configuration: |
1R, 1G, 1B |
Certification: |
CCC |
Display Function: |
Video Display |
Application: |
Advertising |
Scanning Mode: |
1/8 Scan |
Average Power Consumption: |
300W / m² |
Pixel Pitch: |
6mm |
Pixel Density: |
27777 DOT /Sqm |
Product Description
P4/P6 Full Color Indoor Die cast cabinet LED Display Classical Series
Parameters | Indoor Die-casting LED display classical series(576*576) |
Pixel Pitch (mm) | 4 mm | 5.33mm | 6mm |
Pixel density(pix/m2) | 43402 | 35200 | 27777 |
LED Type | SMD3528 |
Viewing Angle | H:140°,V:140° |
Brightness(nits) | 2500 | 2500 | 2000 |
Drive Method | 1/15 | 1/9 | 1/12 |
Color Depth | 16bit |
Refresh Rate(Hz) | 600HZ | 1200HZ |
Module Size (mm) | 288×288 |
Cabinet Size(mm) | 576×576 |
Cabinet Material | Die-cast aluminum |
Cabinet weight(kg) | 10.5 |
Voltage | 110/250V |
Average.power(W / m2) | 170 | 270 | 190 |
Max.power (W / m2) | 500 | 800 | 560 |
IP Grade | IP31 |
Operating temperature/humidity | temperature:-20ºC~ 50ºC humidity:10~90%RH |
Storage temperature/ humidity | temperature:-40ºC~ 60ºC humidity:10~90%RH |
Lifetime(h) | ≥50000 |
Compliant Standard | CCC,CE,Rosh |
Features of the product
1) High brightness and be adjustable, meets the need of the changing requirement of customer in environment.
2) Having good lightning accordance and no mosaic.
3) Using virtual pixels, better viewing effect for both text & graphic and video.
4) Having larger viewing angle: Horizontal angle 100 degree / elevation angle 45 degree. Getting vivid effect within any position of the viewing range.
5) Any LED in each pixel can be respectively repaired, which reduce the cost of the display maitenance.
6) Good heat emission capability
7) Environmental-friendly.
Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...
With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.
NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
