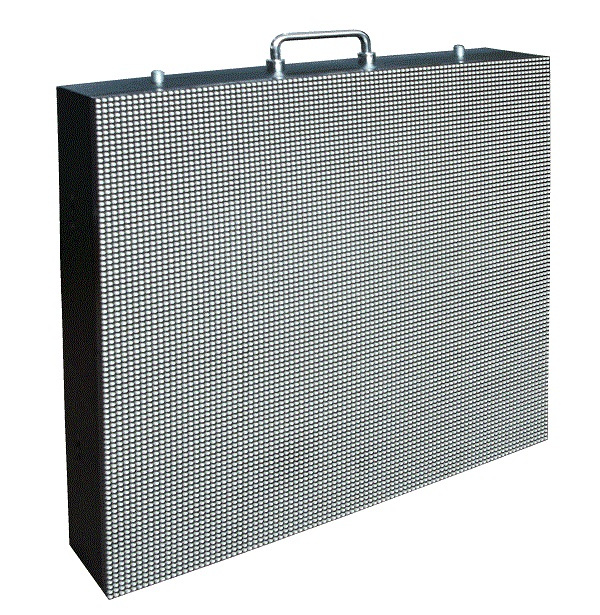

Full Color Fix Installation Indoor Video LED Display

Full Color Fix Installation Indoor Video LED Display
Price: US $ 750-1080/Square Meter
Trade Terms: FOB,CIF,EXW
Min Order: 1/Square Meter
Pay Type: T/T,Western Union
Prod Model: P6 Full Color Fix Installation Indoor LED Display
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Module Size: 192*192
Cabinet Size: 576*576
Cabinet Material: Steel
Warranty: Two Years
Display Type: LED Video Display
Tube Chip Color: Full Color
Display Function: Video Display
Scanning Mode: 1/16 Scan
Certification: CCC
Pixel Configuration: 1R,1G,1B
Pixel Pitch: 6mm
Pixel Density: 27,777 dots / m²
Application: Shopping Guide
IP Rating: IP43
System Operating Platform: WIN XP

Product Description

Full Color  Fix Installation Indoor  LED Display Series:

ItemIndoor Ultra Slim Aluminum  LED display  Commercial  series
Pixel Pitch(mm)3mm4mm5mm6mm 7.62
Pixel density(pix/m2)11111162500400002777717222
LED Type212black lamp 2121 Black lamp 352835283528
Drive Method1/161/161/161/161/8
Viewing AngleH:140°,V:140°
ColorDepth(nits)1500
Color Depth16384
Refresh Rate(Hz)1600
Module Size(mm)192X192x13256X128x13320X160x13192X192x13244 x 122 x 13
Cabinet Size(mm)576X576X80512X512X80640X640X80576 x576 x80732 mm x 732mm x 80 mm
Cabinet Material Steel cabinet
Cabinet  weight(kg)9  8.5 8.58KG  9
Voltage110/220V
Average.power(W/m2)160130120120
Max.power(W/m2)800380350350

Product Description:

   Super Slim LED display is designed for indoor and outdoor LED display R & D leases. Synchronous control system processing, accept DVI, VGA, HDMI, S-video, composite, YUV input signals, etc., free video, graphics, images, and Mao's program in real time, synchronization, clear information dissemination play each kind of information, and can display 2D and 3D animation, video, TV, VCD programs, and live and so on.
     As a new type of advertising display design makes stable, durable, easy to use, suitable for indoor stage, television and other application areas. Achieved without tools to quickly install and maintain, greatly expanding the use of the product areas. High production efficiency and lower operating costs.

Features of Indoor Super Slim LED Display Series:

  Small-pitch series obtain high contrast and high gray scale, It can realize the HD and exquisite image.
  Super thin and light weight (thickness :75mm  weight :7kg), easy to install and transport.
  Aluminum die-casting cabinet, automatic  heat dissipation, and low power  consumption.
  Seamless connection with high flatness and soft image .
  Support point correction function, ensure the color and brightness consistency.
  High RGB gray scan processing, colorful, vivid and clear viewing effect.
  High stability and reliability with integrated circuit .
  Accurate and fast installation with buckled cabinet design, which can be used in different application.
  One case with multi-purpose, product upgrading only need to change the module , low upgrade cost.
  Buckle cabinet design makes it fast installation and dismantle, both for
    fixed installation and rental using.
  Professional and standard air plug with high quality guarantee.

Application:

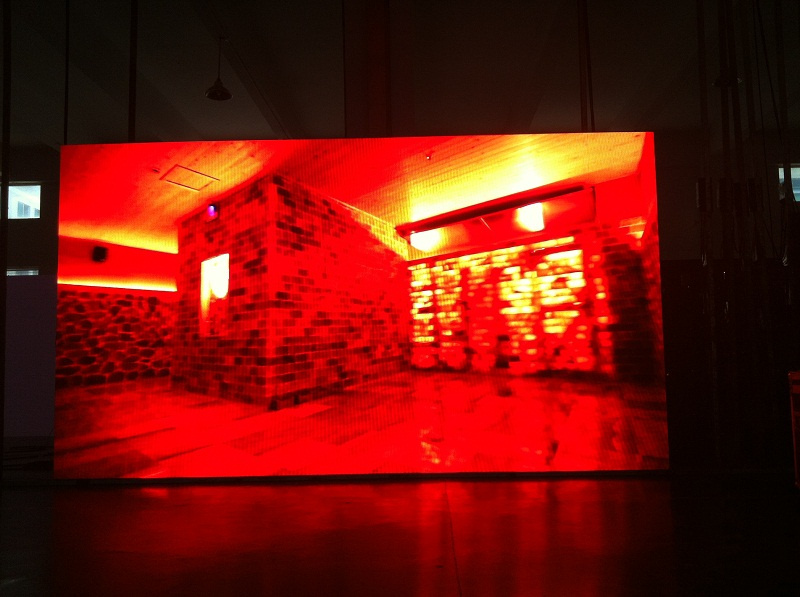

Indoor stage, TV studio, concert, theme park and exhibition where need quick installation and HD video.


Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...

With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.

NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.

We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
