| Prod Model: |
P12mm outdoor |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size: |
192mm X 192mm |
| Materail: |
Light Alumium Cabinet |
| Cabinet: |
Double Face Front Cabinet |
| Best View Distance: |
15m -100m |
| Warranty Time: |
2 Years |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Certification: |
CCC |
| Pixel Pitch: |
16mm |
| Display Function: |
Video Display |
| Application: |
Stage Performance |
| Scanning Mode: |
Static Scan |
| Average Power Consumption: |
180W / m² |
| Pixel Density: |
3906 |
Product Description
P12 outdoor Front service LED Display

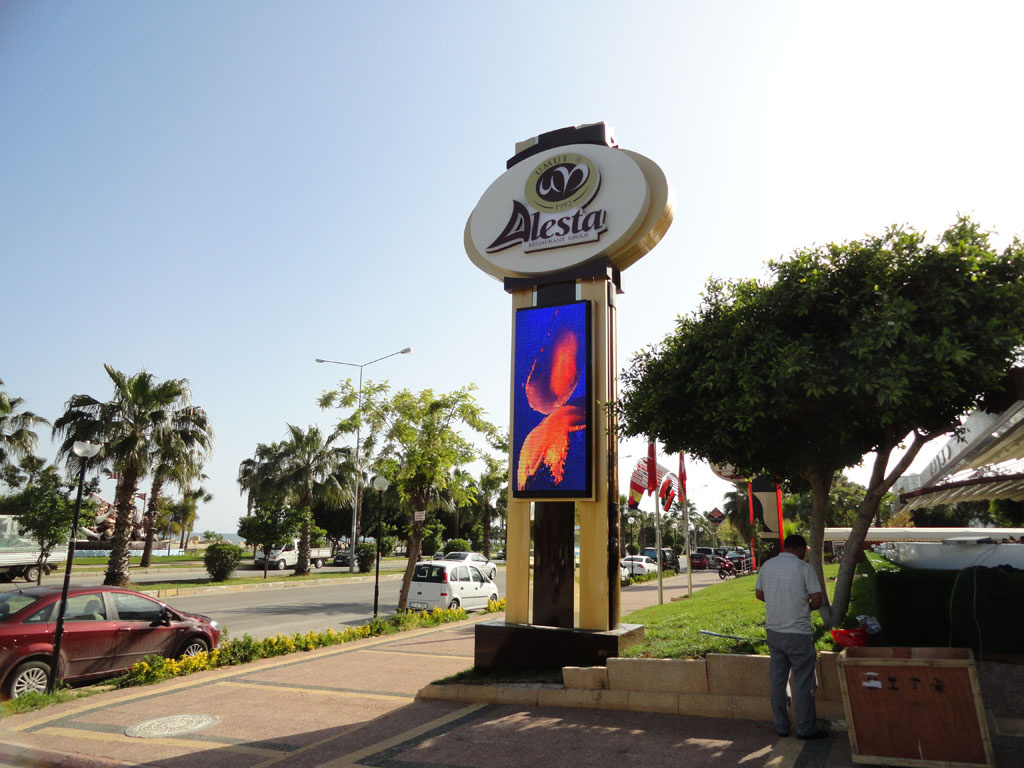

P16 Front service LED Display Application :outdoor advertising, shopping mall, square, park, stadium and so on.
Detail Specification | Item | Front Service Outdoor LED display |
| Pixel Pitch(mm) | 10mm | 12mm | 16mm | 16mm |
| Pixel density(/m2) | 10000 | 6944 | 3906 | 3906 |
| LED Type | DIP346 |
| Viewing angle: | H:120°,V:60° |
| Brightness(nits) | ≥6500 | ≥5000 | ≥7000 | ≥5500 |
| Drive Method | 1/4 | Static |
| Color Depth(nits) | 16384 |
| Refresh Rate(Hz) | 2200 | 2800 |
| Module Size(mm) | 160×160x28.5 | 192×192x28.5 | 256×256x28.5 | 320×320x28.5 |
| Cabinet Size(mm) | 1280×960x178.5 | 2560×1024x178.5 | 1280×960x178.5 |
| Cabinet Material | Steel/ Alumium |
| Cabinet weight(kg) | 50 | 55 | 68 |
| Voltage | 110/220V |
| Average.power(W / m2) | 250 | 170 | 250 | 220 |
| Max.power(W / m2) | 750 | 500 | 750 | 650 |
| IP Grade | IP65/IP54 |
| Operating temperature/humidity | temperature:-20ºC~ 50ºC humidity:10~90%RH |
| Storage temperature/humidity | temperature:-40ºC~ 60ºC humidity:10~90%RH |
| Lifetime(h) | ≥50000 |
| Compliant Standard | CCC,CE,Rosh |

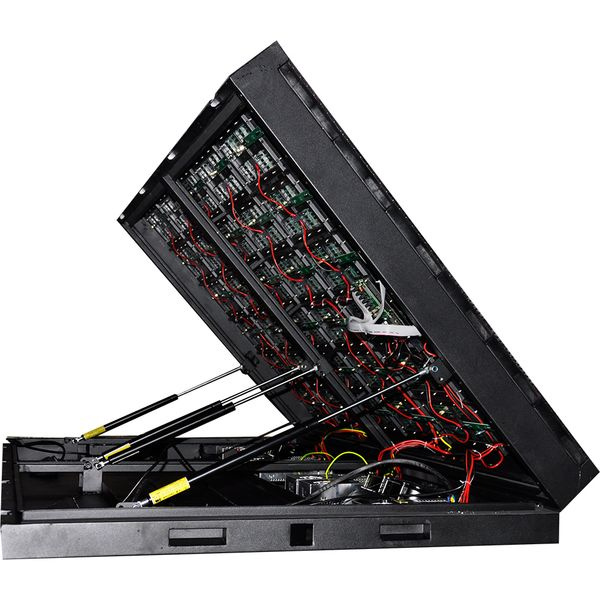

Feature : 1 Front access design makes the installation and maintenance easier so that reduces the cost of money and time
2 Light weight with aluminum cabinet can make it amount in the wall or lift against the wall
3Advanced coated techniques of cabinet ensure display to operate in all weather and looks more fashion and luxurious
4 It can also make double sides front service LED signs

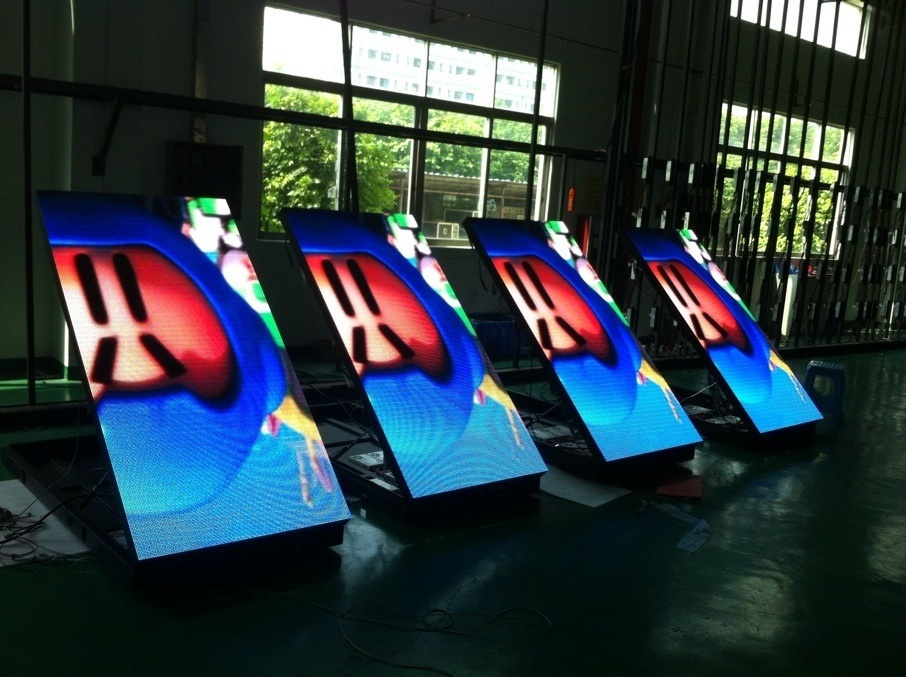

LED Display Aging in the factory
Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...
With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.
NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
