| Prod Model: |
P10 outdoor led display screen |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size : 1920 Mm X 1280 Mm: |
P10 DIP346 |
| Module Size :160 Mm X 160mm: |
Brightness More Than 6500 CD |
| Temperature:-20 ~ 50c Humidity:10~90%Rh: |
CCC\CE\Rosh |
| Front Access Design: |
Double Face Front Cabinet |
| Light Alumium Cabinet: |
Voltage 110/220V |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Certification: |
RoHS |
| Pixel Pitch: |
10mm |
| Display Function: |
Video Display |
| Application: |
Stage Performance |
| Scanning Mode: |
Static Scan |
| Pixel Density: |
10000 dot / m² |
| Average Power Consumption: |
180W / m² |
Product Description
Front service cabinet LED Display

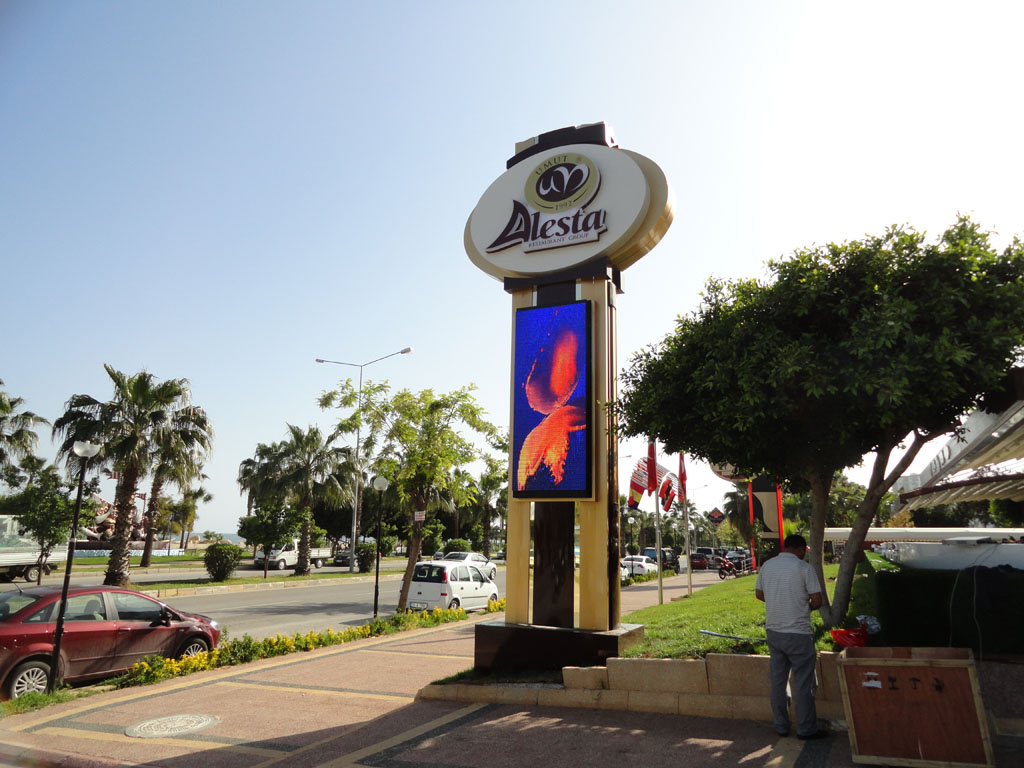

Front service LED Display Application :outdoor advertising, shopping mall, square, park, stadium and so on.
Detail Specification | Item | Front Service Outdoor LED display |
| Pixel Pitch(mm) | 10mm | 12mm | 16mm | 16mm |
| Pixel density(/m2) | 10000 | 6944 | 3906 | 3906 |
| LED Type | DIP346 |
| Viewing angle: | H:120°,V:60° |
| Brightness(nits) | ≥6500 | ≥5000 | ≥7000 | ≥5500 |
| Drive Method | 1/4 | Static |
| Color Depth(nits) | 16384 |
| Refresh Rate(Hz) | 2200 | 2800 |
| Module Size(mm) | 160×160x28.5 | 192×192x28.5 | 256×256x28.5 | 320×320x28.5 |
| Cabinet Size(mm) | 1280×960x178.5 | 1024×1024x178.5 | 1280×960x178.5 |
| Cabinet Material | Steel/ Alumium |
| Cabinet weight(kg) | 50 | 55 | 68 |
| Voltage | 110/220V |
| Average.power(W / m2) | 250 | 170 | 250 | 220 |
| Max.power(W / m2) | 750 | 500 | 750 | 650 |
| IP Grade | IP65/IP54 |
| Operating temperature/humidity | temperature:-20ºC~ 50ºC humidity:10~90%RH |
| Storage temperature/humidity | temperature:-40ºC~ 60ºC humidity:10~90%RH |
| Lifetime(h) | ≥50000 |
| Compliant Standard | CCC,CE,Rosh |

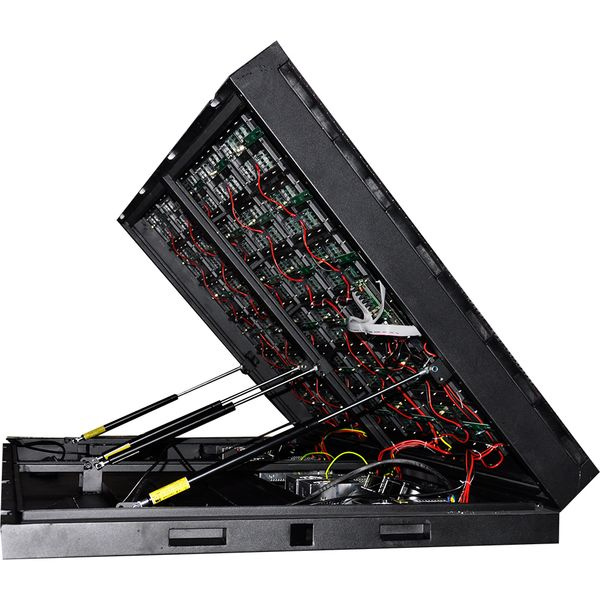

Feature : 1 Front access design makes the installation and maintenance easier so that reduces the cost of money and time
2 Light weight with aluminum cabinet can make it amount in the wall or lift against the wall
3Advanced coated techniques of cabinet ensure display to operate in all weather and looks more fashion and luxurious
4 It can also make double sides front service LED signs
