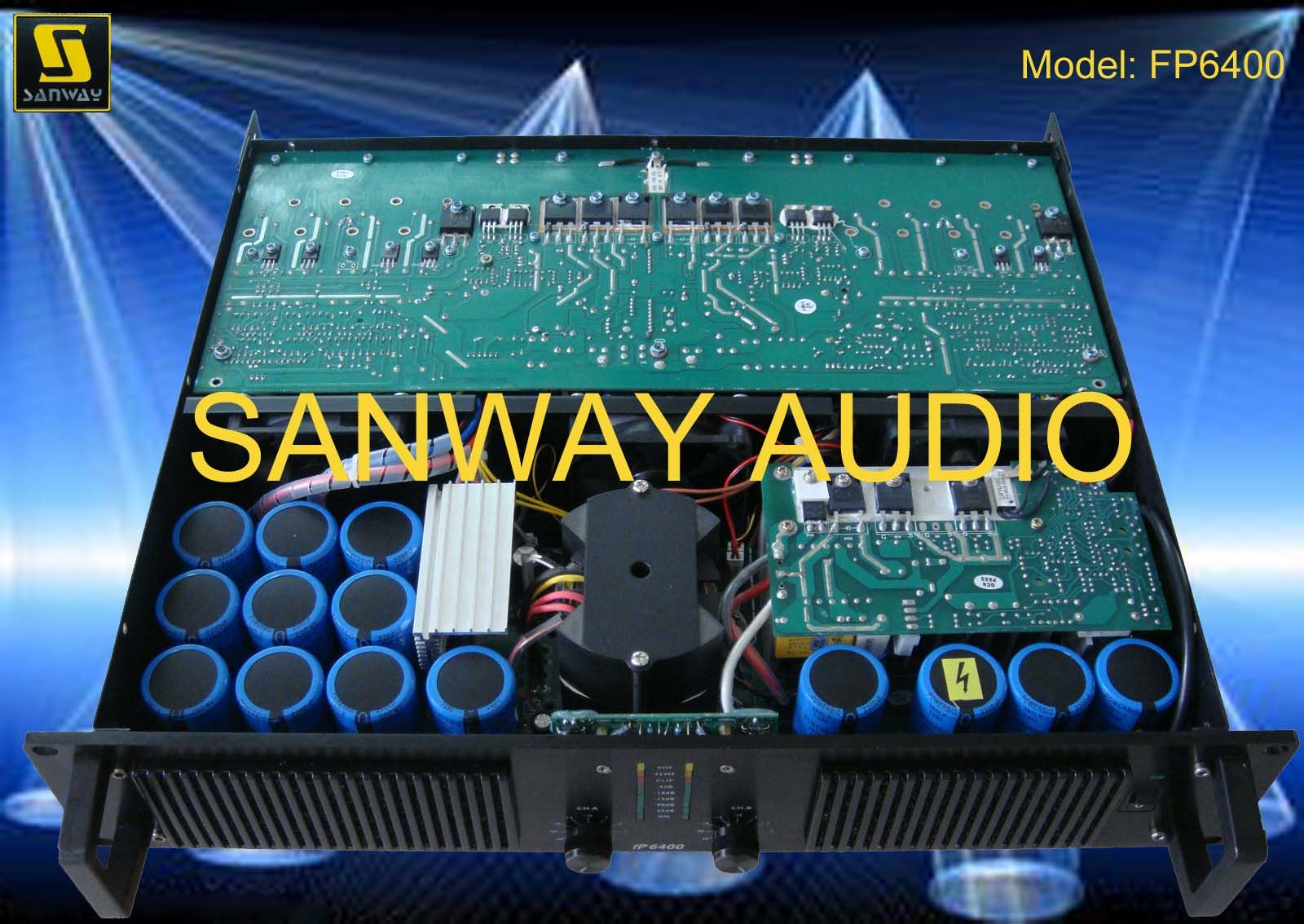

Fp6400 Mosfet Power Amplifiers, PA Subwoofers Power Amplifier
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1O |
| Pay Type: |
L/C,T/T,Paypal,Money Gram,Western Union |
| Prod Model: |
Sanway FP6400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Function: |
Post Amplifier |
| Tube Type: |
Transistor Amplifier |
| Element Number: |
Push-Pull Amplifier |
| Used For: |
Professional |
| Usage: |
AV |
| Sound Channel: |
2.1 |
| Voltage: |
AC 110V & 220V |
| Output Number: |
2 |
| Conductive Mode: |
Td Class |
Product Description
Fp6400 High Efficiency 8 ohms Switching Audio Power Sanway Amplifier
1.2X1300W@8 ohms Switch Model Power Amplifier
2. Fp6400 Switching Mode Amplifier
3.12.5kg Net Weight Switch Mode Amplifier
KEY FEATURE
1). Switching power supply
High efficiency and stability of the new switching power supply so that the signal transmission speed faster and more stable voltage changes, sensitivity stronger, lighter weight.
2). Intelligent signal limiter
Each channel has an independent output signal overload distortion, automatic pressure limited function, when the output signals are now clipping distortion can be quickly restored to the output signal compression is not the biggest distortion level and no reduction in the frequency response of audio signals, to avoid DC level because of the audio signal output and burned speakers.
3). Multiple detection, multiple protection
A soft start, the second start, the (low) pressure protection, output overload and short circuit protection.
4). High efficiency, low fever
Efficient Class TD amplifier, significantly reduce heat loss.
5). Pristine audio
Metal Packaging, high-power transistors, Yanyi a pure, passionate, authentic audio effects.
6). Removable face Network
Removable the hole into the wind-net, easy cleaning.
Specifications:
|
fp6400 Switching Power Amplifier Audio |
|
ITEM |
fp6400 |
|
Output Power |
20-20kHz, 1W with 1 khz |
|
8ΩStereo Power(RMS) |
1300W ×2 |
|
4ΩStereo Power(RMS) |
2300W ×2 |
|
2ΩStereo Power(RMS) |
2900W ×2 |
|
8ΩBridged Power(RMS) |
4600W |
|
4ΩBridged Power(RMS) |
5800W |
|
Frequency Response (+o/-0.3dB, 1W/8Ω) |
20-20KHz±0.5dB |
|
THD+N:10KHZ<0.05% |
10KHZ<0.05% |
|
Signal-to-Noise |
<–110dB |
|
Slew Rate |
20V/us |
|
Input Connectors (per channel) |
Female XLR (pin 2+, configurable for pin 3+). TRS (tip+) |
|
Output Connectors (per channel) |
5-way binding posts or Speakon connectors (market dependent) |
|
Class |
TD |
|
TourClass Protection |
ACL, IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush, sub/ultrasonic input |
|
Voltage Gain(dB) |
20 23 26 29 32 35 38 41 seletable |
|
Cooling |
4pcs variable speed DC fans, better than conventional cooling |
|
Controls |
Front panel: 2 attenuators, power switch; Rear panel: signal ground lift & mode switches |
|
Dimensions (W×H×D) |
483×88×347mm |
|
Packing dimension |
575×140×550mm |
|
Net weight(kg) |
13 |
|
Gross weight(kg) |
17 |
