| Prod Model: |
Sanway FP2800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Class: |
Td |
| Packing Dimension: |
58X18X56cm |
| Type: |
Professional Amplifier |
| Function: |
Amplifier Combined |
| Tube Type: |
Transistor Amplifier |
| Voltage: |
AC 110V |
| Element Number: |
Monoamplifier |
| Used For: |
Professional |
| Usage: |
KTV System |
| Sound Channel: |
4.1 |
| Output Number: |
2 |
| Conductive Mode: |
Td Class |
Product Description

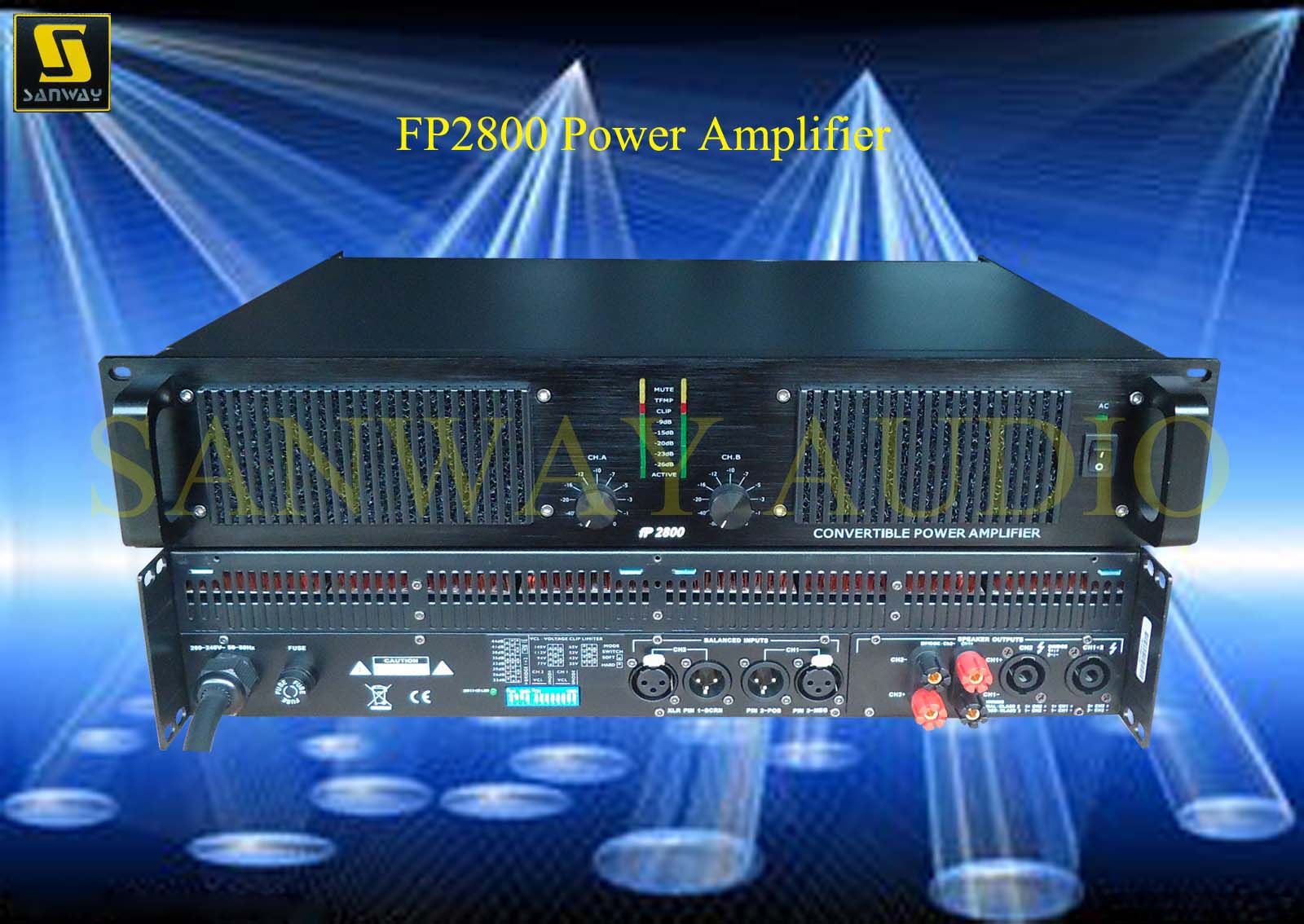

FP2800 950W Output Power Cheaper Amplifier
KEY FEATURE
1). Switching power supply
High efficiency and stability of the new switching power supply so that the signal transmission speed faster and more stable voltage changes, sensitivity stronger, lighter weight.
2). Multiple detection, multiple protection
A soft start, the second start, the (low) pressure protection, output overload and short circuit protection.
3). High efficiency, low fever
Efficient Class H amplifier, significantly reduce heat loss.
4). Pristine audio
Metal Packaging, high-power transistors, Yanyi a pure, passionate, authentic audio effects.
5). Removable face Network
Removable the hole into the wind-net, easy cleaning.
Specifications:
|
FP2200-- FP6400 Karaoke Audio Power Amplifiers |
|
ITEM |
FP-2200 |
FP-2400 |
FP-2600 |
FP-2800 |
FP3400 |
FP-6400 |
|
Output Power |
20-34kHz, 1W with 1 KHz |
|
8Ω Stereo Power(RMS) |
350WX2 |
550WX2 |
750WX2 |
950WX2 |
1100WX2 |
1300WX2 |
|
4Ω Stereo Power(RMS) |
500WX2 |
800WX2 |
1150WX2 |
1350WX2 |
1500WX2 |
2300WX2 |
|
2Ω Stereo Power(RMS) |
700WX2 |
1100WX2 |
1500WX2 |
1650W |
1700WX2 |
2900WX2 |
|
8Ω Bridged Power(RMS) |
1400W |
1600W |
2100W |
2300W |
3000W |
4600W |
|
4Ω Bridged Power(RMS) |
2200W |
2400W |
2600W |
2800W |
3400W |
5800W |
|
Frequency Response(+o/-0.3dB,1W/8Ω) |
20 Hz - 20 kHz±0.5dB |
|
THD+N |
10KHz<0.05% |
|
Signal-to-Noise Ratio |
103dB |
<-110dB |
|
|
40V/uS |
20V/uS |
|
Input Connectors (per channel) |
Female XLR( PIN+2, Configurable for pin 3+). TRS (tip+) |
|
Output Connectors (per channel) |
5-way binging posts or Speakon connectors (market dependent) |
|
Class |
TD |
|
TourClass Protection |
turn-on/off transient, current inrush, sub/ultransonic input |
|
Voltage Gain(dB) |
20, 23,26, 29, 32, 35, 38, 41,dB selectable |
|
Cooling |
4pcs variable speed DC fans, better than conventional cooling |
|
controls |
Front-panel: 2 attenuators, power switch, Rear panel, signal ground lift & mode switches |
|
Dimensions (W×H×D) |
483×88×347mm |
|
Packing dimension |
580×180×560mm |
|
Net weight(kg) |
12 |
12.5 |
13 |
|
Gross weight(kg) |
16 |
16.5 |
17
|
