FP14000 Ampplifier, PRO Audio

FP14000 Ampplifier, PRO Audio
Price: US $ 846/Piece
Trade Terms: DHL or UPS
Min Order: 10/Piece
Pay Type: T/T
Prod Model: FP14000
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Power: 20-20KHz, 1w With 1 KHz
Type: Professional Amplifier
Usage: KTV System
Used For: Professional
Tube Type: Transistor Amplifier
Function: Post Amplifier
Sound Channel: 2.1
Voltage: AC 220V
Element Number: Push-Pull Amplifier
Output Number: SGS

Product Description

Amplifie
8ohm Stereo Power(RMS): 2400WX2
4ohm Stereo Power(RMS): 4400WX2
2ohm Stereo Power(RMS): 7000WX2
ModelFP14000
Output Power20-20kHz, 1W with 1 khz
8ΩStereo Power(RMS)2400WX2
4ΩStereo Power(RMS)4400WX2
2ΩStereo Power(RMS)7000WX2
8ΩBridged Power(RMS)8800W
4ΩBridged Power(RMS)14000W
Frequency Response(+o/-0.3dB,1W/8Ω)20 Hz - 34 kHz
THD 20 Hz - 20 kHz for 1 W<0.1%
Signal-to-Noise Ratio>112 dB
Channel separation (Crosstalk) at 1 kHz>70 dB

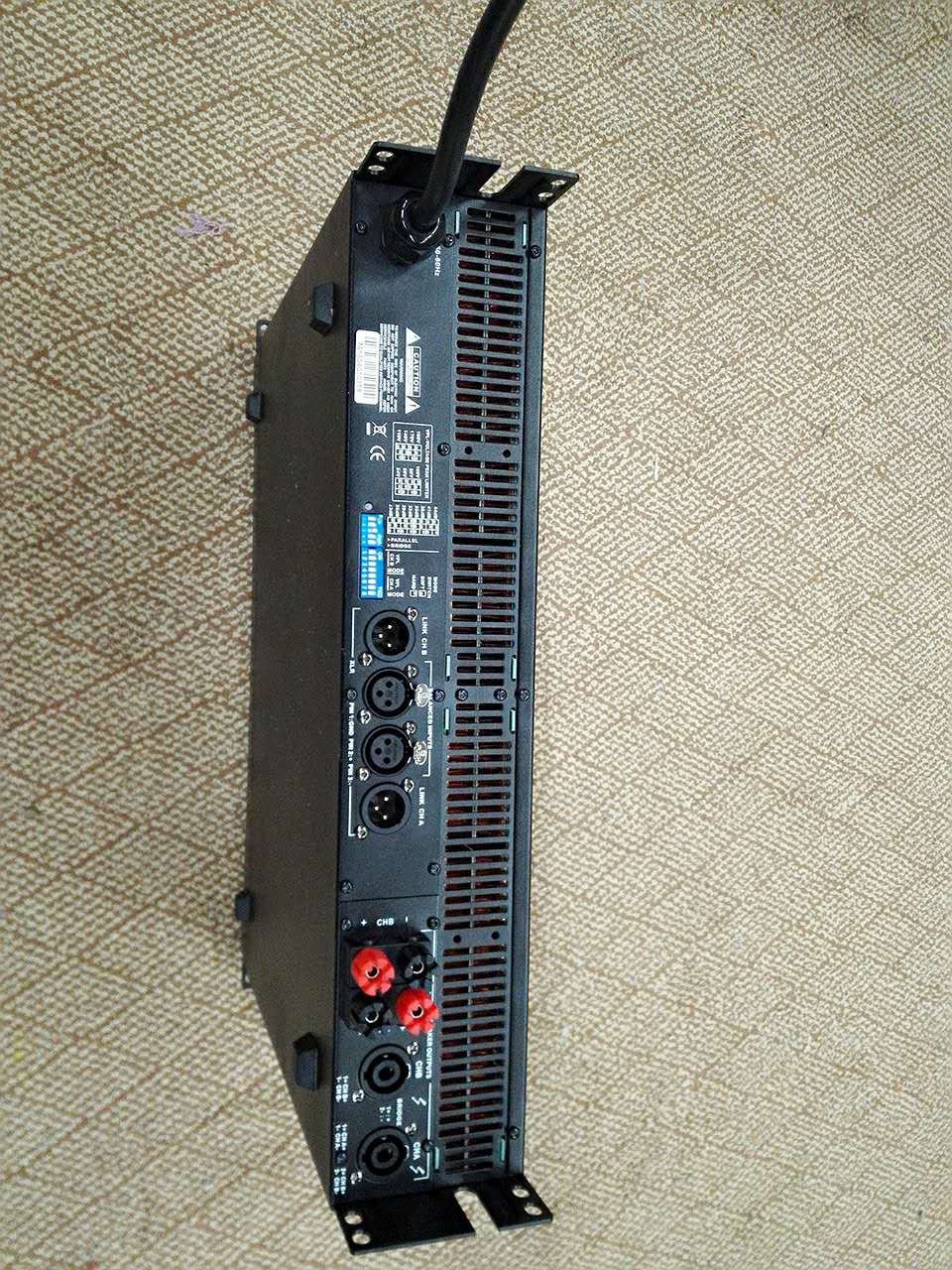

Input Connectors (per channel)3-pin XLR, electronically balanced
Output Connectors (per channel)Binding Posts 2-pole
ClassTD
TourClass ProtectionACL,IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush, sub/ultrasonic input
Operating voltage, 230 V / 115 V nominal130-265 V / 65-135 V selectable
Voltage Gain(dB)23, 26, 29, 32, 35, 38, 41, 44 dB selectable
Input impedance20 kOhm
Level adjustment (per ch.)Front-panel potentiometer, 31 position detented from -inf to 0 dB
Dimensions (W×H×D)483×88×396mm
Packing dimension580×180×560mm
Net weight(kg)15
Gross weight(kg)18
Guangzhou Hao Yang PRO Audio Manufactory was founded in 1998, a number of its brands; Agent and a number of famous foreign brands, such as: The United States, Factory is a specialized professional stage doing fine speaker, professional audio equipment and digital audio system for R & D and production, sales in one of the producers; Warm service units in order to survive, quality assurance, stability, technological innovation and development, domestic and foreign customers for the cost-effective professional audio equipment.

Professional audio equipment factory targeted for its strong and took advantage of a variety of applications, According to the designers of the product adaptation to different characteristics of the product structure and configuration of the different functions of the formation of a series of widely used in high-end KTV, theaters, sports venues, outdoor performances, nightclubs, indoor SHOW it, the stage bars, Multi-function hall and many other places use the product line. Our products may not be the best, but our product is the most applicable, the most reliable, most cost-effective!

At the same time, in the bigger, stronger, do a good job in their own brand names outside the factory for domestic and foreign customers with OEM, ODM services for customers with special needs box processing services.
