| Prod Model: |
FP10000Q |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Sound Channel: |
4.1 |
| Output Number: |
4 |
| Voltage: |
AC 220V |
| Function: |
Post Amplifier |
| Tube Type: |
Transistor Amplifier |
| Element Number: |
Push-Pull Amplifier |
| Conductive Mode: |
Td |
Product Description

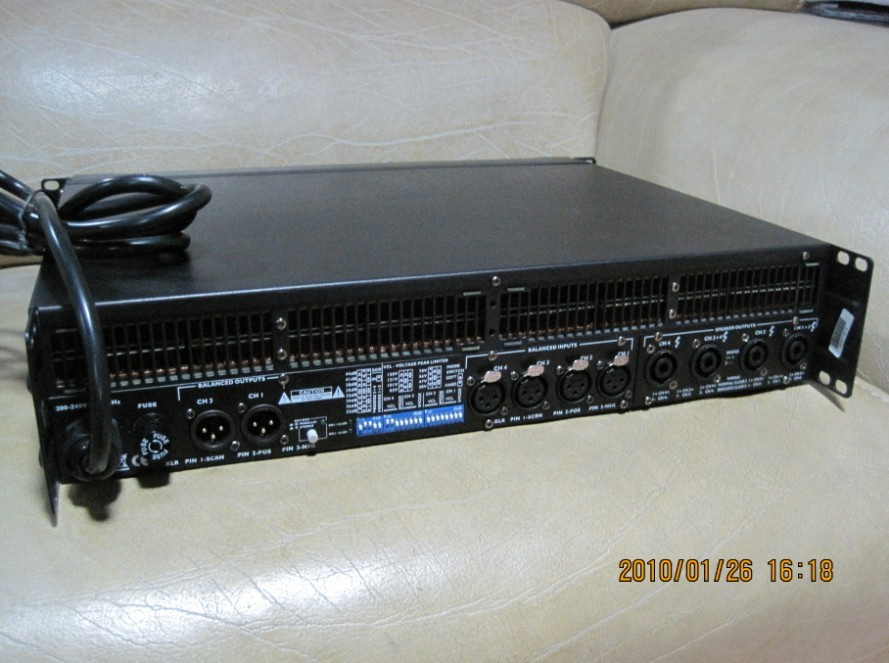

FP10000Q Power Amplifier:
8ohm Stereo Power(RMS): 1300WX4
4ohm Stereo Power(RMS): 2100WX4
2ohm Stereo Power(RMS): 2500WX4
|
Model |
FP10000Q |
|
Output Power |
20-20kHz, 1W with 1 khz |
|
8ΩStereo Power(RMS) |
1300WX4 |
|
4ΩStereo Power(RMS) |
2100WX4 |
|
2ΩStereo Power(RMS) |
2500WX4 |
|
8ΩBridged Power(RMS) |
4200WX2 |
|
4ΩBridged Power(RMS) |
5000WX2 |
|
Frequency Response(+o/-0.3dB,1W/8Ω) |
20 Hz - 34 kHz |
|
THD 20 Hz - 20 kHz for 1 W |
<0.1% |
|
Signal-to-Noise Ratio |
>112 dBA |
|
Channel separation (Crosstalk) at 1 kHz |
>70 dB |
|
Input Connectors (per channel) |
3-pin XLR, electronically balanced |
|
Output Connectors (per channel) |
Binding Posts 2-pole |
|
Class |
TD |
|
TourClass Protection |
ACL,IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush, sub/ultrasonic input |
|
Operating voltage, 230 V / 115 V nominal |
130-265 V / 65-135 V selectable |
|
Voltage Gain(dB) |
23, 26, 29, 32, 35, 38, 41, 44 dB selectable |
|
Input impedance |
20 kOhm |
|
Level adjustment (per ch.) |
Front-panel potentiometer, 31 position detented from -inf to 0 dB |
|
Dimensions (W×H×D) |
483×88×396mm |
|
Packing dimension |
580×180×560mm |
|
Net weight(kg) |
15 |
|
Gross weight(kg) |
18 |
Guangzhou Hao Yang PRO Audio Manufactory was founded in 1998, a number of its brands; Agent and a number of famous foreign brands, such as: The United States, Factory is a specialized professional stage doing fine speaker, professional audio equipment and digital audio system for R & D and production, sales in one of the producers; Warm service units in order to survive, quality assurance, stability, technological innovation and development, domestic and foreign customers for the cost-effective professional audio equipment.
Professional audio equipment factory targeted for its strong and took advantage of a variety of applications, According to the designers of the product adaptation to different characteristics of the product structure and configuration of the different functions of the formation of a series of widely used in high-end KTV, theaters, sports venues, outdoor performances, nightclubs, indoor SHOW it, the stage bars, Multi-function hall and many other places use the product line. Our products may not be the best, but our product is the most applicable, the most reliable, most cost-effective!
At the same time, in the bigger, stronger, do a good job in their own brand names outside the factory for domestic and foreign customers with OEM, ODM services for customers with special needs box processing services.
