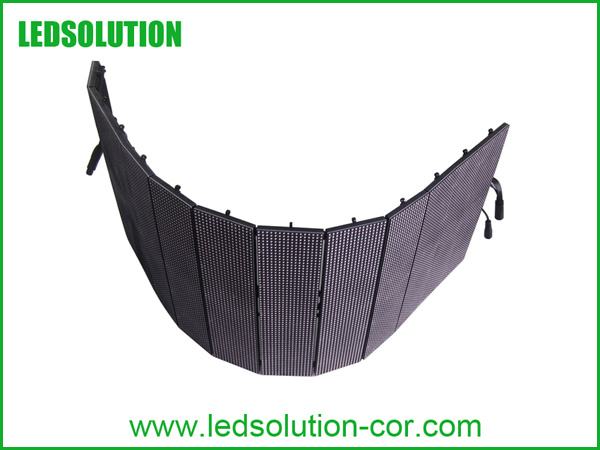

Foldable Flexible LED Display
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
10/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
LS-FF-P6-0.384mx1.152m |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
1,800nits |
| Panel Width: |
384mm |
| Panel Height: |
1152mm |
| Panel Depth: |
33mm |
| Resolution Per Panel: |
64X192 |
| Mounting System: |
Hanging |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Pitch: |
6mm |
| Pixel Density: |
27,777 dots / m² |
| Application: |
Stage Performance |
| IP Rating: |
IP54 |
| Certification: |
RoHS |
| Pixel Configuration: |
3in1 SMD |
Product Description
Pixel Pitch: 6mm
Panel Size: 384mm*1152mm
Application: Indoor, perfect for Stage
Advantages: Thin, light weight, easy to transport, convenient assembly
| Parameter | Unit | Value |
| Pitch | mm | 6 |
| Brightness | nits | 1,800 |
| Color temperature | deg. K | 6,500 |
| Viewing angle – Horizontal (50% brightness) | deg. | 140(-70 ~ +70) |
| Viewing angle – Vertical (50% brightness) | deg. | 140(-70 ~ +70) |
| Panel weight | kg | 5.8 |
| Panel width | mm | 384 |
| Panel height | mm | 1152 |
| Panel depth | mm | 33 |
| Panel area | sq. m. | 0.442 |
| Operating temperature range | deg. C | -30 to +60 |
| Panel Material |
| Plastic |
| Ingress protection (front/rear) |
| IP43 |
| Humidity operating | RH | 10% ~ 90% |
| Pixel type and configuration | R/G/B | 3528 SMD |
| Resolution per panel |
| 64x192 |
| Dot per panel |
| 12,288 |
| Dot per sq. meter |
| 27,777 |
| LED per sq. meter |
| 27,777 |
| Recommended minimum viewing distance | m | 4.5 |
| Recommended best viewing distance | m | 6~18 |
| Colors |
| 281 trillion |
| Grey scale (linear) | Levels | 65,536 levels per color |
| Brightness control | Levels | 100 |
| Contrast ratio |
| 1,000:1 |
| Processing depth | bit | 16 |
| Video frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 180~3,000 |
| Input voltage (nominal) | VAC | 110 to 240 |
| Input power frequency | Hertz | 50 to 60 |
| Input power (max) | Watts/panel | 250 |
| Input power (typical) | Watts/panel | 100 |
| Lifetime (50% brightness) | Hours | ≥100,000 |
| Red wavelength (dominant) | nm | 620~625 |
| Green wavelength (dominant) | nm | 525~530 |
| Blue wavelength (dominant) | nm | 470~475 |
| Multimedia data format |
| DVI,MPG,AVI,WMV,RM etc. |
| Data interconnection |
| UTP Cat 5/Optical Fiber |
| Mounting system |
| Hanging |
