| Prod Model: |
LS-OFD-P40 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
1, 500nits |
| Panel Weight: |
6kg |
| Panel Material: |
PVC |
| Mounting System: |
Hanging |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Certification: |
ETL |
| Display Function: |
Video Display |
| Application: |
Advertising |
| Scanning Mode: |
1/8 Scan |
| Pixel Configuration: |
3in1 SMD |
| Pixel Pitch: |
40mm |
| Pixel Density: |
625DOT/M&Sup2 |
| Average Power Consumption: |
90W/M&Sup2 |
Product Description

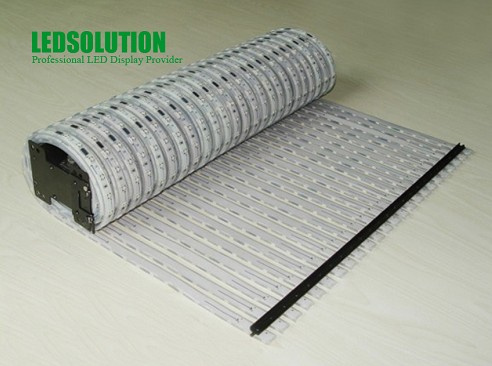

The Flexible Curtain LED Display is LEDSolution's new product, adopt state-of-art outdoor 3in1 SMD, designed for outdoor & indoor event in the day time or in the night.
Flexible LED Display
Features of the flexible curtain LED Display:
1. Light weight: Less than 3.5kg per sqm.
2. Easy remove: More than 20sqm can be packing by only one flight case.
3. Easy install: Just hang panel like you hang curtain. You can install 100sqm within 2hours, and remove It within 2hours.
4. High protection grade: IP 65, can be use for both indoor and outdoor.
5. Application flexible: Assembly to different stage background modeling as you can image, give fresh, amazing feelings to your audience.
LEDSolution LED Display:
| Parameter | Unit | Value |
| Pitch | mm | 40 |
| Brightness | nits | 1, 500 |
| Color temperature | deg. K | 6, 500 |
| Viewing angle Horizontal (50% brightness) | deg. | 140(-70 ~ +70) |
| Viewing angle Vertical (50% brightness) | deg. | 140(-70 ~ +70) |
| Panel weight | kg | 6 |
| Panel width | mm | 480 |
| Panel height | mm | 3, 200 |
| Panel depth | mm | 10 |
| Panel area | sq. m. | 1.536 |
| Panel material |
| PVC |
| Ingress protection | IP | IP65 |
| Operating temperature range | deg. C | -30 to +60 |
| Humidity operating | RH | 10% ~ 90% |
| Pixel type and configuration | R/G/B | 3in1 SMD |
| Resolution per panel |
| 12x80 |
| Dot per panel |
| 960 |
| Dot per sq. meter |
| 625 |
| LED per sq. meter |
| 625 |
| Recommended minimum viewing distance | m | 30 |
| Recommended best viewing distance | m | 40~120 |
| Colors |
| 1, 073.7 millions |
| Grey scale (linear) | Levels | 1, 024 levels per color |
| Brightness control | Levels | 100 |
| Contrast ratio |
| 1, 000: 1 |
| Processing depth | bit | 16 |
| Video frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 180~3, 000 |
| Input voltage (nominal) | VAC | 110 to 240 |
| Input power frequency | Hertz | 50 to 60 |
| Input power (max) | Watts/Panel | 192 |
| Input power (typical) | Watts/Panel | 76.8 |
| Lifetime (50% brightness) | Hours | ≥ 100, 000 |
| Red wavelength (dominant) | nm | 620~625 |
| Green wavelength (dominant) | nm | 525~530 |
| Blue wavelength (dominant) | nm | 470~475 |
| Multimedia data format |
| DVI, MPG, AVI, WMV, RM etc. |
| Data interconnection |
| UTP Cat 5/Optical Fiber |
| Mounting system |
| Hanging |
