| Prod Model: |
FT-FP-2m*1m |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Pressure 6 Bar: |
Maximum Pressure 9 Bar |
| Laser Welding Absorber: |
Germany Imported Absorber |
| Collector Components: |
Flat-plate |
| Pressure: |
Pressurized |
| Max. Capacity: |
>200L |
| Structure: |
Separate Type |
| Interior Material: |
Aluminium |
| Certification: |
CCC |
| Composition: |
Collector |
Product Description
Flat Solar collector

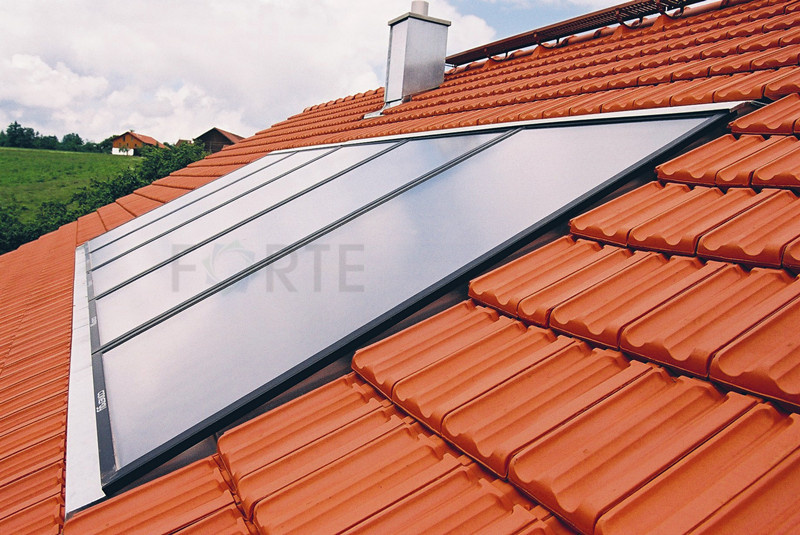

Main Characteristics: Flat panel, intergrated with roof
Compact package, easy transportation &Installation
High pressure: Working pressure 6 bar, Maximum pressure 9 bar
Closed loop: Anti-freeze -25. C
High efficient over 80%, absorption efficient over 95%
FP-1 and FP-2, the absorbers are pipes with fins, each absorber is made from 7 PCS of pipes with fins, these fins are welded to the copper flow pipes and
Then welded to the main flow pipes. FP-1 absorber is copper, while FP-2 absorber is red copper
FP-3 absorber is full black chrome coated aluminum
FP-4 absorber is full aluminum with China sputtering coating blue
FP-5 Germany imported blue tec absorber
All the models, working pressure 6 bar, maximum pressure 9 bar
Among these 5 types, we think FP-1 ( good price ) FP-3 (Good efficient, good price, good appearance ) FP-4, high efficient, price is good compare to FP-5,
Of course much better than you buy from Europe.
| Flat Plate Solar Collector |
| Copper and Aluminum combined solar collector | All red copper black Chrome coated collector | All red copper Blue Tec Absorber collctor | Aluminum 1PC black Chrome coated collector | Aluminum 1PC aluminum coated Bluetec collector |
| Coating | Anodized treatment | Black Chrome coated | Germany imported Selective coating | Black Chrome coated 1PC | Germany imported |
| Construction type | pipe+fin | pipe+plate | pipe +plate | pipe+plate | pipe+plate |
| Absorption rate | 0.95± 0.03 | 0.96± 0.03 | 0.96± 0.02 | 0.96± 0.03 | 0.96± 0.02 |
| Emmision rate | 0.18± 0.05 | 0.09± 0.05 | 0.05± 0.02 | 0.09± 0.05 | 0.05± 0.02 |
| Aluminum fin | 140x 1855 x 0.15 7 | 140x 1850 x 0.15 | 140x 1850 x 0.12 | 1925x 925x 0.3 | 1925x 925x 0.3 |
| Header pipe | Φ 25 x 0.5 | Φ 25 x 0.5 | Φ 25 x 0.5 | Φ 25 x 0.5 | Φ 25 x 0.5 |
| Grid pipe | Φ 10 x 0.5 | Φ 10 x 0.5 7PCS | Φ 10 x 0.5 7PCS | Φ 10x 0.5 7PCS | Φ 10x 0.5 7PCS |
| Overall size | 2000 x 1000 x 76 | 2000 x 1000 x 76 | 2000 x 1000 x 76 | 2000 x 1000 x 76 | 2000 x 1000 x 76 |
| Frame thickness | 0.85mm | 0.85mm | 0.85mm | 0.85mm | 0.85mm |
| Frame color | Silver white | silver white | silver white | Silver white | silver white |
| Gross area | 2m2 | 2m2 | 2m2 | 2m2 | 2m2 |
| Absorption area | 1.85m2 | 1.85m2 | 1.85m2 | 1.85m2 | 1.85m2 |
| Seal | Anti-aging PVC | Anti-aging PVC | Anti-aging PVC | Anti-aging PVC | Anti-aging PVC |
| Cover quantity | 1 | 1 | 1 | 1 | 1 |
| cover material | 4mm float glass | 4mm tempered glass | 4mm tempered glass | 4mm tempered glass | 4mm tempered glass |
| transmittance | 89% | 89% | 89% | 89% | 89% |
| bottom cover | 0.30mm Zinc coated plate | 0.30mm Zinc coated plate | 0.30mm Zinc coated plate | 0.30mm Zinc coated plate | 0.30mm Zinc coated plate |
| Insulation(mm) | bottom 16K*30 fiber glass frame 48K*20 fiber glass | bottom 16K*30 fiber glass frame 48K*20fiber glass | bottom 16K*30fiber glass frame48K*20firber glass | bottom16K*30fiber glass frame 48K*20 fiber glass | bottom 16K*30fiber glass frame48K*20fiber glass |
| Maximum pressure | 0.6MPa | 0.6MPa | 0.6MPa | 0.6MPa | 0.6MPa |
| Weight | 34kg | 35kg | 35kg | 35kg | 35kg |
| Warranty | 3 years | 3 years | 3 years | 3 years | 3 years |
