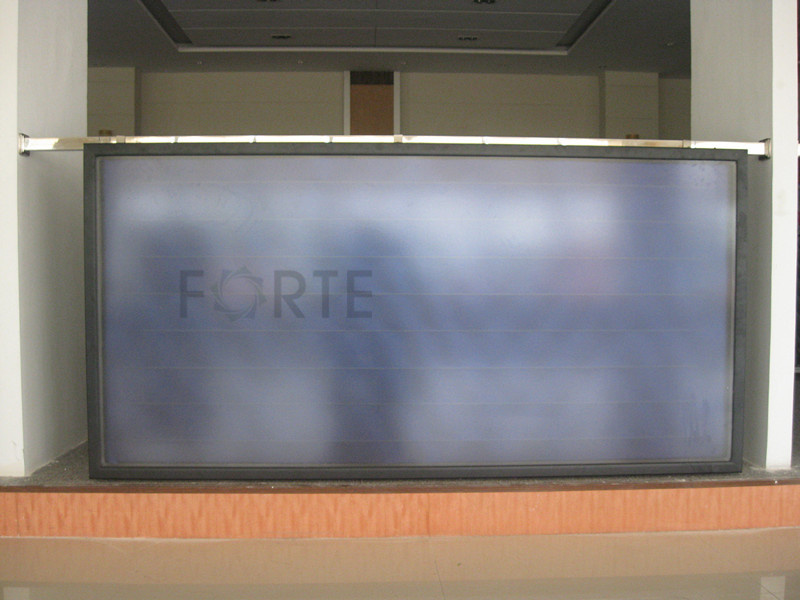

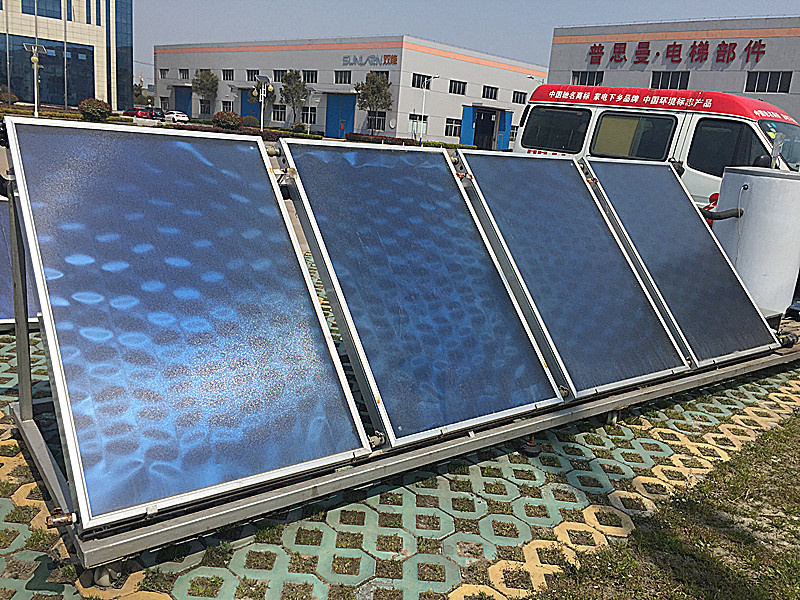

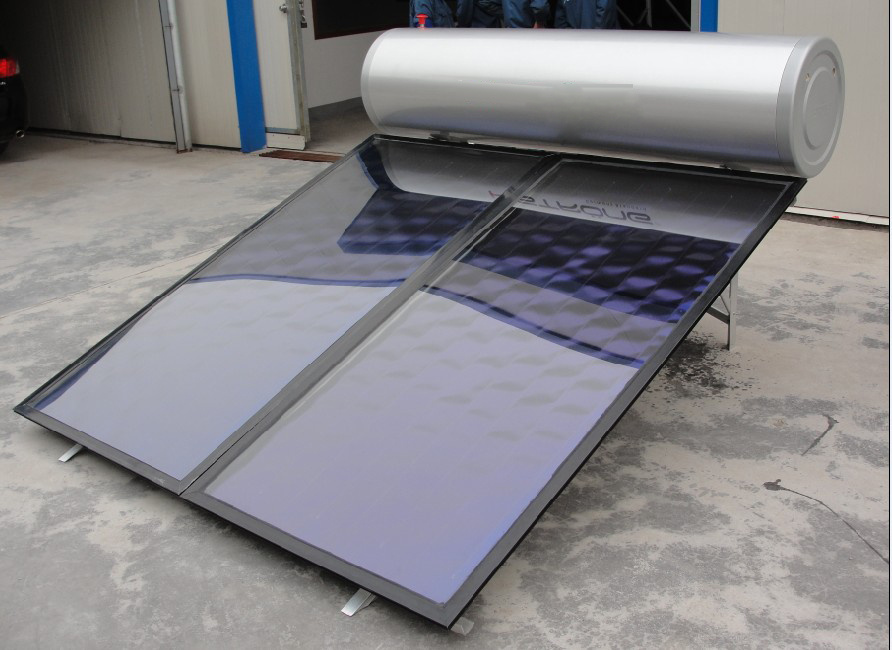

Multiple Flat Solar Water Heater

Name: Multiple Flat Solar Water Heater
Brand: ec-portal.com
SKU: 787166275
Availability: InStock
Rating: 4.5 (88 reviews)

Price:	US $ 130/Piece
Min Order:	2/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Send Inquiry

Showroom Product Company Profile

Working Pressure 6 Bar:	Working Pressure 9 Bar
Type:	Pressurized
Application:	Air Conditioning System
Pipe Material:	Copper and Aluminum

Product Description

Solar Collector(flat plate solar collector )
Solar water heater
Flat plate High pressure high efficient Solar collector(150L, 200L)
high efficient Flat plate solar collector
solar panel heater solar heater /water heater
Flat plate solar water heater
Flat plate solar collector-laser welding or ultrasonic welding absorber,full plate of aluminum absorber
pressurized flat Solar collector-maximum pressure 9 bar
High pressure flat plate solar collector
high efficient flat plate solar collector
solar water heating system
solar Panel heatingsystem
flat plate solar collector
Splite solar collector solar water heating system
high efficient solar collector Solar hot water heater

Flat Plate Solar Collector high pressure solar collector

Material

Copper and Aluminum combined solar collector

All red copper black Chrome coated collector

All red copper Blue Tec Absorber collctor

Aluminum 1PC black Chrome coated collector

Aluminum 1PC aluminum coated Bluetec collector

Coating

Anodized treatment

Black Chrome coated

Germany imported Selective coating

Black Chrome coated 1PC

Germany imported

Construction type

pipe+fin

pipe+plate

pipe +plate

pipe+plate

Absorption rate

0.95± 0.03

0.96± 0.03

0.96± 0.02

0.96± 0.03

0.96± 0.02

Emmision rate

0.18± 0.05

0.09± 0.05

0.05± 0.02

0.09± 0.05

0.05± 0.02

Aluminum fin

140x 1855 x 0.15 7

140x 1850 x 0.15

140x 1850 x 0.12

1925x 925x 0.3

Header pipe

Φ 25 x 0.5

Grid pipe

Φ 10 x 0.5

Φ 10 x 0.5 7PCS

Φ 10x 0.5 7PCS

Overall size

2000 x 1000 x 76

Frame thickness

0.85mm

Frame color

Silver white

silver white

Silver white

silver white

Gross area

2m2

Absorption area

1.85m2

Seal

Anti-aging PVC

Cover quantity

cover material

4mm float glass

4mm tempered glass

transmittance

89%

bottom cover

0.30mm Zinc coated plate

Insulation(mm)

bottom 16K*30 fiber glass frame 48K*20 fiber glass

bottom 16K*30 fiber glass frame 48K*20fiber glass

bottom 16K*30fiber glass frame48K*20firber glass

bottom16K*30fiber glass frame 48K*20 fiber glass

bottom 16K*30fiber glass frame48K*20fiber glass

Maximum pressure

0.6MPa

Weight

34kg

35kg

Warranty

3 years

OUR MISSION:

SUPPLY YOU MOST COMPORTABLE & ECONOMIC&INTELLIGENT SOLUTION FOR DOMESTIC AND PROJECT WATER HEATING

OUTLINE:

The Forte Group is one of the leading international manufacturers of water heating systems. Founded in 2003, our company maintains a staff of over 120 employees and generates roughly 50 millions USD in annual turnover.

Forte is an internationally orientated company. With 90% of total Forte value exports to Germany, Italy, Spain, Mexico, Vietnam, Mauritius, Korea and other 80 countries.

Comprehensive product range for all types and areas of application

Whether for single or two-family homes, large residential complexes, commercial and industrial buildings or local heating networks, Forte has the right system solution with Solar heating

Forte's comprehensive product portfolio includes single domestic vacuum tube and flat plate solar water heaters from 100L to 300L, 500L and even 750L and 1000L, but also big project systems for schools hospitals and swimming pools

Comprehensive range of services

Forte offers its trade partners a comprehensive range of services to considerably simplify their daily work. The diverse range includes assistance from its Technical Service department, demand-driven software for instance for planning heating systems, support in the form of advertising and sales promotions, and a user-friendly information and ordering system available around the clock on the internet.

Our Advantage

Technical support: Experience of over 10 years experience in designing, researching, producing and exporting solar water heating systems, always supply you customer oriented solutions.

QC&QA

All main parts 100% checked and tested before delivery

Every water tnk, manifold loop, were strictly tested against leakage and corrosion

After sale service

Upon delivery, main parts will carry a trackable number, customer only need to report convincable proofs so that we will carry the service

Guarantee priod:

All the tanks we delivered will have 7 years guarantee period

OUR ADVANTAGE

TECHNICAL SUPPORT: EXPERIENCE OF MORE THAN 10 YEARS DESIGNING, RESEARCHING, PRODUCING AND EXPORTING OF WATER HEATING SYSTEMS, ALWAYS SUPPLY YOU CUSTOMER ORIENTED HEATING SOLUTIONS

QC & QA

ALL THE MAIN PARTS 100% TESTED AND CHECKED.

EVERY WATER TANK, MANIFOLD LOOP, WERE STRICTLY TESTED AGAINST LEAKAGE AND CORROSION

AFTER SALE SERVICE

UPON DELIVERY, MAIN PARTS WILL CARRY A TRACKABLE NUMBER, CUSTOMER ONLY NEED TO REPORT CONVINCIBLE PROOFS SO THAT WE WILL CARRY THE SERVICE

GARANTEE PERIOD:

ALL THE TANKS WILL HAVE A 7 YEARS GARANTEE PERIOD

We would be pleased to work with all the distributers on a win-win base to grow up together.

With Forte Energy, we go for further journey!
