| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Speed: |
600x 90MB/S |
| Controller: |
Sm2234 |
| Installation: |
Internal |
| Card Slots: |
Single |
| Interface: |
ExpressCard Slot |
| Type: |
CF Card |
| Capacity: |
4GB-128GB |

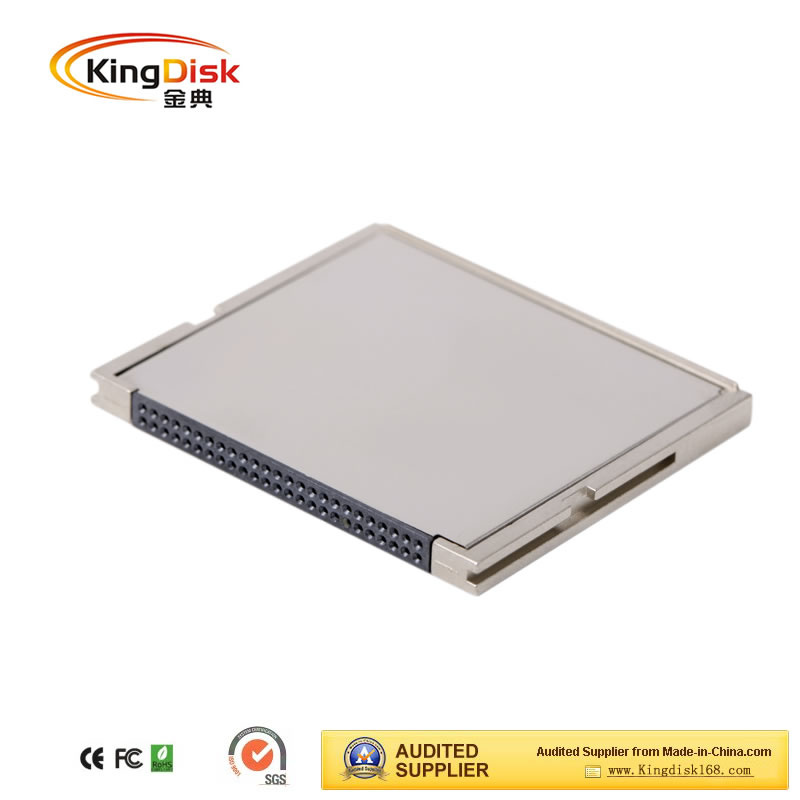

Product Description
Performance
External Transfer Rate(Host Transfer Rate): 133MB/s
Maximum sustained read: 85MB/s
Maximum sustained write: 42MB/s
Form factor: (36.4mm x 42.8mm x 3.3mm)
Interface standard: 50PIN
Density: 8GB, 16GB, 32GB, 64GB
Input voltage: 3.3V (± 5%)
Commercial operating temperature range form -40 to + 85
Transfer rates rating is 600x
Upgradable: Supports firmware in system programming(ISP) for firmware upgrade
Flash interface
- Dual/Qual channel 8-bit flash interface
- Supports 8 chip enable pins per channel (total of 32 CE pins)
- Supports external bus switch to reduce bus engine
FLASH Memory Support
- Supports SLC and SLC NAND flash
- Supports Hybrid Mode: SLC(or Turbo SLC)+SLC
- Supports NOP=1 for SLC
- 2K, 4K, and 8K byte per page architecture
- 2-plane structure
- EDO mode supported
Automatic sleep and wake-up mechanism to save power
ECC (Error Correction Code): Advanced 8/15 bit hardware BCH ECC engine
Write endurance: >8 years @100GB write/ day(32GB)
Read endurance: Unlimited
Data retention: 10 years
MTBF: 1, 000, 000 Hours
|
General |
|
Product model |
CF-KD-MS |
|
Interface |
50PIN CF Socket |
|
Storage media |
MLC-NAND Flash |
|
Capacity(GB) |
4GB 8GB 16GB 32GB 64GB 128GB |
|
Performance |
|
Max Sustained Read |
85MB/s |
|
Max Sustained write |
42MB/s |
|
Power Consumption |
|
input Voltage |
3.3v±5% |
|
Work power |
1.35W |
|
Standby power |
0.4W |
|
Reliability& Endurance |
|
Write endurance |
8years@100GBytes write and erase per day |
|
Read endurance |
unlimited |
|
S.M.A.R.T |
Support |
|
Wear-Leveling Algorithm |
Dynamic and static wear-leveling |
|
Data Retention |
10years at 25ºC |
|
MTBF |
1,000,000hours |
|
ECC |
Supports BCH ECC 8bits or 15bits in 512 bytes |
|
Bad Block Management |
Auto Bad Block Management in system |
|
Environment |
|
Operating Temperature |
0~70°C |
|
Non-operating Temperature |
–45~85°C |
|
Shock |
2,000G(@0.3ms half sine wave) |
|
Vibration |
20G(40-2000HZ) |
|
Humidity |
5-95%1 |
Physical Dimensions
& Weight |
|
|
Height(mm) |
3.3mm |
|
Width(mm) |
43mm |
|
Length(mm) |
36mm |
|
Weight(g) |
12 |
|
Testing software&platform |
|
Testing Software |
HDBench3.4.0.3, IOMeter |
|
Testing Platform |
AMD Athlon 64 3000+ 1.8GHz,DDR2 PC2-5300 512MB×2pcs double channel RAM,NVIDIA nForce520 chipset,Microsoft Windows XP Professional SP3 |
