| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Installation: |
Internal |
| Interface Type: |
SATAII |
| Type: |
Solid State Disk |
| Application: |
Laptop, MID, PDA, Netbook, Thin Clients |
| Rotationl Speed: |
No Moving Parts |
| Capacity: |
4GB-128GB |
Product Description

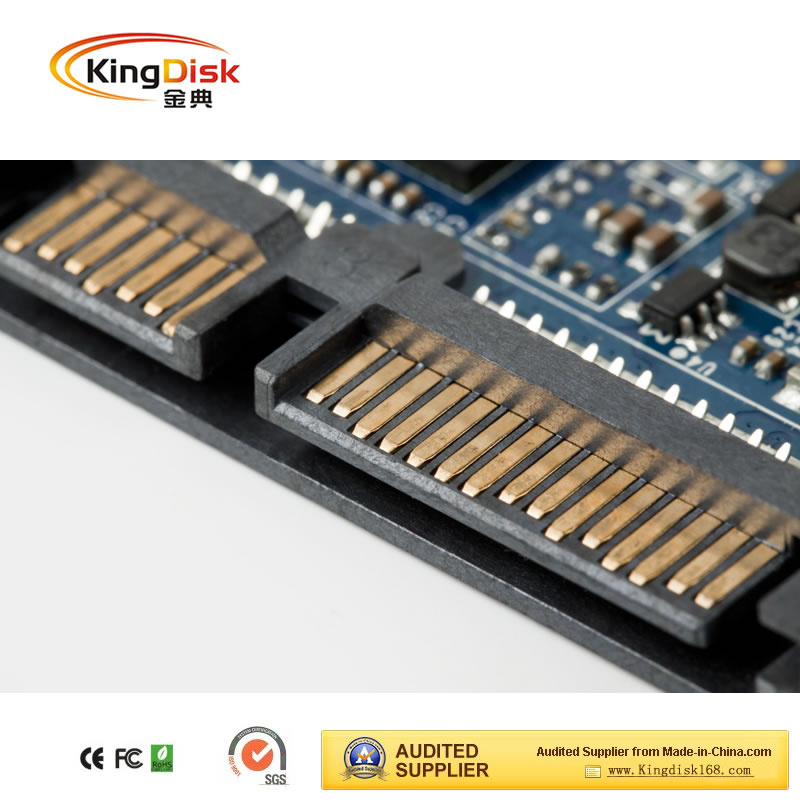

1. Half slim SATA SSD
2. Max Read: 158 MB/s *Max Write: 108MB/s
3. CE, FCC, RoHS
|
General |
|
Product model |
SSD-KD-SA18. H-MJ5 |
|
Size |
1.8 half slim |
|
Interface |
SATA II |
|
Storage media |
MLC-NAND Flash |
|
Capacity(GB) |
4GB 8GB(2C) 8GB(4C) 16GB 32GB 64GB 128GB |
|
Performance |
|
Max Sustained Read |
73MB/s 72MB/s 140MB/s 144MB/s 158MB/S 158MB/s 158MB/s |
|
Max Sustained write |
15MB/s 17MB/s 32MB/s 35MB/s 63MB/S 66MB/s 108MB/s |
|
Random IOPS |
4772/5207 |
|
Average Access time |
0.2ms |
|
Power Consumption |
|
input Voltage |
5V |
|
Work power |
Max 1.0W |
|
Standby power |
Max 0.5W |
|
Reliability& Endurance |
|
Write endurance |
8years@100GBytes write and erase per day |
|
Read endurance |
unlimited |
|
S. M. A. R. T |
Support |
|
Wear-Leveling Algorithm |
Dynamic and static wear-leveling |
|
Data Retention |
10years at 25º C |
|
MTBF |
1, 000, 000hours |
|
ECC |
Supports BCH ECC 8bits or 15bits in 512 bytes |
|
Bad Block Management |
Auto Bad Block Management in system |
|
Environment |
|
Operating Temperature |
0-70 |
|
Non-operating Temperature |
– 45-85 |
|
Shock |
2, 000G(@0.3ms half sine wave) |
|
Vibration |
20G(40-2000HZ) |
|
Humidity |
5-95% |
Physical Dimensions
& Weight |
|
Height(mm) |
4mm |
|
Width(mm) |
39mm |
|
Length(mm) |
54mm |
|
Weight(g) |
8g |
|
Testing software& platform |
|
Testing Software |
HDBench3. 4. 0.3, IOMeter |
|
Testing Platform |
CPU:Intel® Core™ i3 Duo CPU 540 @ 3.07GHz,
Memory:Kingston KVR800D2N5/2G,
Chipset: Intel® H55 Express Chipse
OS: Microsoft Windows 7 Professional 64-bit
BIOS Settings: AHCI Mode
|
Shenzhen KingDisk Century Technology Co., Ltd, founded in Shenzhen, China.
A professional SSD(Solid Sate Drive), DOM(Disk on Module) and CF card (Compact Flash Card) manufacturer, specialized in producing NAND flash storage products.
Products Range
1.8'', 2.5'', 3.5''SATA and PATA SSD; 1.8'' Micro SATA, ZIF(IDE 40pin), CF(IDE 50pin) SSD; Standard Mini PCI-e SSD; Disk on Module (DOM) for PATA(IDE 40PIN, IDE 44PIN, Male or Female, Horizontal or Vertical); Disk on Module (DOM) for SATA; Disk on Module (DOM) for 9pin USB, USB2.0 Pen drive, eSATA(External SATA) and CF Card. Our production line covers the industrial environment, general business office environment and consumer storage devices.
Quality and Delivery
All raw materials are inspected to meet our standards before production. Due to the long-term, strategic, stable partnerships with key component suppliers, our product ensure you a good quality, reliability and prompt delivery. There is a clear procedure to conduct random product inspection after final packaging in place.
Technical support and sales service
Professional team of engineers is your trustworthy technical support, our sales representative is not only sell products, but also sell service and provide SSD solutions for you. There is a clear procedure and followed records for handling customer's complaints. All the finished/packaged products can be traced by the lot identification to the appropriate raw materials test report.
Our Philosophy
By listening to our customers we are able to develop and support them on all levels of their evolving needs. Kingdisk SSD hard drive, drive your future.
(HK JINDIAN CENTURY TECHNOLOGY LIMITED) Company located in HongKong
(Shenzhen KingDisk Century Technology Co., Ltd) Company located in Shenzhen
CE, FCC, RoHS, IS09001: 2008, IS09001: 2000.
