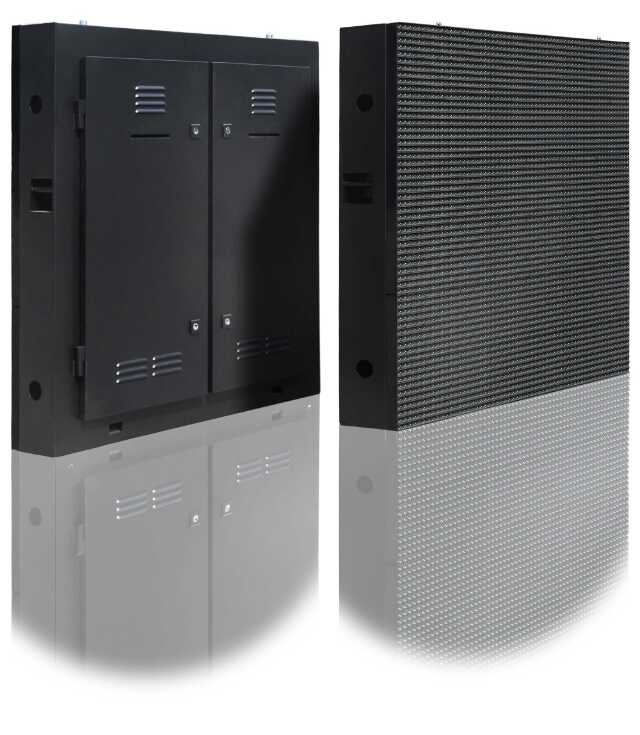

Fix Installation Full Color Outdoor LED Display for Advertisement
| Price: |
US $ 1200-1450/Square Meter |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Square Meter |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
P8 Fix Installation Full Color Outdoor LED Display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size: |
320*160 |
| Brightness: |
More Than 2000 CD/Sqm |
| Cabinet Material: |
Iron or Aluminum |
| Warranty: |
Two Years |
| Best Viewing Distance: |
10-120m |
| Packing Manner: |
Wooden Case/Flight Case |
| The Way Of Fix Installation: |
Fix Installation |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Certification: |
CCC |
| Display Function: |
Video Display |
| Application: |
Advertising |
| Scanning Mode: |
1/4 Scan |
| Average Power Consumption: |
220W / m² |
| Pixel Pitch: |
8mm |
| Pixel Density: |
15625 DOT/Sqm |
Product Description
Full Color P8 LED Display for Advertising
Specification:
Resolution : 32(H)×16(V)
Pixel Pitch: 8mm
LED Configuration: 1R1G1B SMD
Pixel Density: 15625pixels/ m2
Module Size: 320*160mm
Driving IC: MBI5024
Driving Method: 1/4 Scan
Cabinet Weight: 42kg/sq.m.
Brightness: >1,800cd/ m2
View Angle: 150°/150°
Gray Scale: 8 bits input, correction with 14bits
Display COLOR: 16.7M
Brightness Adjustment: 0~100%
Operation Power: 100~240V 50~60Hz
Max. Power Consumption: 600W/ m2
Average Power Consumption: 200W/ m2
Screen Refresh Frequency : 300~1000Hz
Gamma Correction: -5.0~+5.0
Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Control Distance: Ethernet cable<120m or Fiber Optic<10Km
Support VGA Mode: 1024×768, 1280×1024, 1600×1200, 1920×1280
Brightness Correction: Pixel, Module, Cabinet
Operating Temperature: -20°~+60°
Operating Humidity: 10~95% RH
Operating Life: 100,000hours
MTBF: 5000hours
Out of Control Rate: <0.02%
Features Of P8:
Use SMD technology to make the LED display have good video effect.
Synchronously adjust the brightness and color to make the true and exquisite image.
High contrast, high refresh rate make the image without any delay, trailing smear.
Compatible to many signal sources such as AV, S-Video, DVI, VGA, YPbPr, HDMI,SDI,DP etc.
Special wooden Case package protect the whole screen system.
PCB patent technology, the most stable signal transmission technology in the world.
Combine perfect design and stage of the art technology for united cabinet screen with simple appearance, compact strcture, stable performance
Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...
With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.
NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
