| Prod Model: |
LR-02T-LR-30T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Flake Ice Plant Application: |
Concrete Mixing Cooling |
| Structure: |
Containerized Equipment |
| Converyor: |
Flake Ice Screw Conveyor |
| Cooling Style: |
Water-Cooling |
| Refrigerant: |
R404A/R22 |
| Ambient Temp.: |
2-55degree Centigrade |
| Ice Temp.: |
-7oc |
| Certification: |
SGS |
| Condition: |
New |
| Ice Shape: |
Flake Ice |
Product Description

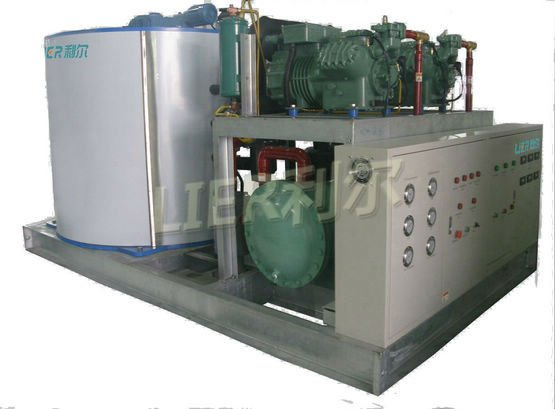

Containerised flake ice plant:
1. Concrete mixing cooling system, CE approved
2. High efficient, 100tons flake ice/ day, 200tons flake ice/day
3. Installed in container,
¯ 4. Transportable equipmentº C
5. Flake ice screw delivery
6. Automatic ice sorage bin
7. Ambient temperature ranging: From -30 º C to 60 º C
Application
Aquatic appliance
Fishery fresh: In fish market, supermarket and seafood hotel, plenty of ice are used for the fish food preservation.
Fishery production and processing: In fishing and aquatic products processing factory, lots of ice is need as a cold storage and preservation of aquatic products.
Meat appliance
Slaughtering industry cooling: In production of poultry slaughter, ice is for cooling poultry
Food processing: In the cooked food production, ice water is for cooled chopped mix processing.
Food processing industry
Dairy processing: In ice cream production, required as large amount of chopped ice particles.
Bakery: Bread flour in the beating, need to use a lot of ice water to improve the processing temperature.
Chemical appliance
Printing&dyeing chemical: In the paint, dye production, diazotization, coupling and condensation are necessary synthesis process. Lots of heat is cool down with ice cooling
Pharmaceutical and chemical: In t he synthetic production process of bio-pharmaceutical. Chemical and pharmaceutical industry, much ice is used to control temperature and maintain biological activity.
Concrete cooling
Railway hydropower projects: In the casting process of concrete elements in mass projects, the big temperature change in hydration can cause creaks. Every 10kg flake ice can reduce 1.2-1.4 degree for on cubic concrete.
|
Model |
Daily outputT/D |
Refrigerating.Capacitykw |
Container
Specification |
Total powerkw |
Ice storage freezer
Dimension L*W*H(mm) |
|
LRA-25T |
25 |
155kw |
20´ |
95kw |
12912*2438*2591 |
|
LRA-30T |
30 |
186kw |
40´ |
108kw |
12912*2438*2896 |
|
LRA-40T |
40 |
248kw |
40´ |
142kw |
12912*2438*5515 |
|
LRA-50T |
50 |
310kw |
40´ |
182kw |
12912*3530*4000 |
|
LRA-60T |
60 |
372kw |
40´ |
213kw |
12912*4130*4000 |
|
LRA-80T |
80 |
496kw |
40´ |
276kw |
12912*5190*4000 |
|
LRA-100T |
100 |
620kw |
2*40´ |
385kw |
15000*5190*4310 |
