Shenzhen Lier Machinery Equipment Co., Ltd. >> CE Passed Small Commercial Flake Ice Maker

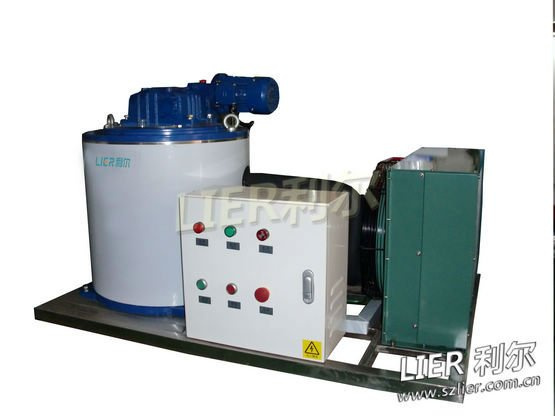

CE Passed Small Commercial Flake Ice Maker

CE Passed Small Commercial Flake Ice Maker
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Money Gram,Western Union
Prod Model: LR-02T-LR-30T
Cooling Style: Water-Cooling
Refrigerant: R404A/R22
Ambient Temp.: 2-55 Oc
Flake Ice Drum: Anti Rust Evaporator, Stainess Steel
Condition: New
Ice Shape: Flake Ice

Product Description

Advantage:
1. Large contact area: As its flat and thin shape, it has got the largest contact area among all types of ice. The larger its contact area is, the faster it cools other stuff. In comparison with 1 ton of cube ice, 1 ton of flake ice has 1799 sqm of contact area while 1 ton of cube ice only has 1383 sqm, therefore the flake ice has got much better cooling effects than cube ice.
2. Low cost of producing
The producing of flake ice is very economical, it only requires 1.3RT refrigerating effect to make 1 ton of ice from 16C water.
3. Perfect in food cooling
Flake ice is type of dry and crispy ice, it hardly forms any shape edges, in food cooling process, this nature has made it the best material for cooling, it can reduce the possibility of damage to food to the lowest rate.
4. Thoroughly mixing
Flake ice can become water quickly through the rapid heat exchanging with products, and also supply the moisture for products to be cooled.

Standard power supply for flake ice machine is 380V/3P/50Hz and it can be customized to meet different electrical requirements.

Application
Aquatic appliance
Fishery fresh: In fish market, supermarket and seafood hotel, plenty of ice are used for the fish food preservation.
Fishery production and processing: In fishing and aquatic products processing factory, lots of ice is need as a cold storage and preservation of aquatic products.
Meat appliance
Slaughtering industry cooling: In production of poultry slaughter, ice is for cooling poultry
Food processing: In the cooked food production, ice water is for cooled chopped mix processing.
Food processing industry
Dairy processing: In ice cream production, required as large amount of chopped ice particles.
Bakery: Bread flour in the beating, need to use a lot of ice water to improve the processing temperature.
Chemical appliance
Printing&dyeing chemical: In the paint, dye production, diazotization, coupling and condensation are necessary synthesis process. Lots of heat is cool down with ice cooling/
Pharmaceutical and chemical: In t he synthetic production process of bio-pharmaceutical. Chemical and pharmaceutical industry, much ice is used to control temperature and maintain biological activity.
Concrete cooling
Railway hydropower projects: In the casting process of concrete elements in mass projects, the big temperature change in hydration can cause creaks. Every 10kg flake ice can reduce 1.2-1.4 degree for on cubic concrete.

Model Daily output
kg/24h
Ref.Capacity
kw
Power supply Total power
kw
Refrige
rants
Unit Dimension
L*W*H(mm)
Net Weight kg
LR-02T 200 1.2 1P/220V/60HZ 1.1 R404A 760*730*600 105
LR-05T 500 3 3P/380V/50HZ 2.62 R404A 1310*890*780 195
LR-1T 1000 6 3P/380V/50HZ 4.31 R404A 1310*970*880 227
LR-1.5T 1500 9 3P/380V/50HZ 8 R404A 1310*970*980 364
LR-2T 2000 12 3P/380V/50HZ 10 R404A 1500*1095*1050 425
LR-2.5T 2500 15 3P/380V/50HZ 12 R404A 1500*1095*1200 468
LR-3T 3000 18 3P/380V/50HZ 15.11 R404A 1750*1190*1200 530
LR-4T 4000 24 3P/380V/50HZ 18.32 R404A 1700*1550*1250 646
LR-5T 5000 30 3P/380V/50HZ 23.12 R404A 1750*1550*1600 765
LR-6T 6000 36 3P/380V/50HZ 26.12 R404A 1750*1550*1600 825
LR-8T 8000 52 3P/380V/50HZ 31.5 R404A 2530*1830*1680 978
LR-10T 10000 65 3P/380V/50HZ 45.5 R404A 2530*1830*1680 1540
LR-15T 15000 97.5 3P/380V/50HZ 64 R22 3100*2090*1865 2120
LR-20T 20000 130 3P/380V/50HZ 75.8 R22 3695*2090*2050 2860
LR-25T 25000 162.5 3P/380V/50HZ 75 R22 3695*2090*2265 2940
LR-30T 30000 210 3P/380V/50HZ 86 R22 3880*21200*2400 3240
