| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Installation: |
Table |
| Type: |
Air Cooling Fan |
| Speed: |
3 Speed |
| Power Supply: |
Electric |
| Power: |
<100W |
| Material: |
Plastic |
| Application: |
Industrial |
| Timer: |
Without Timer |
| Remote Control: |
Without Remote Control |

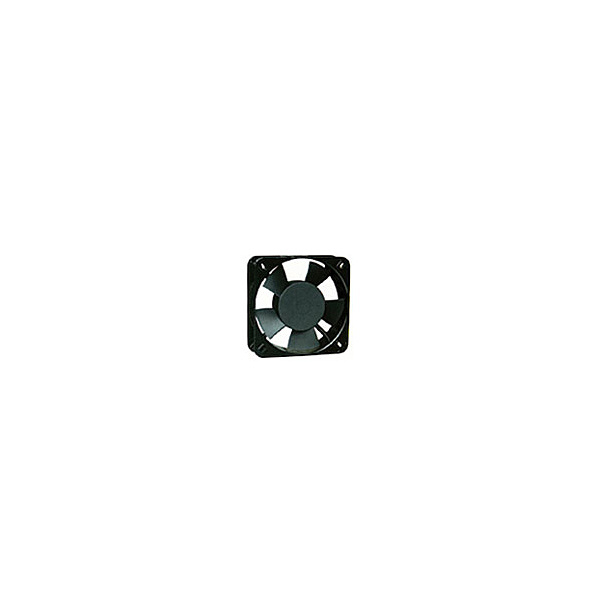

Product Description
Electric motor: Shadedpole type AC electric motor design.
Frame: High quality aluminum alloy outside frame Anti-corrosive and moisture proof structure
Impeller: UL-0 70% PBT+30%FRP
Bearing: self lubricating bearing and ball bearing.
Insulation: Class B
Insulation Impedance: the case adds 500V DC to the coils, insulation impedance 100MΩ higher
Dielectric strength: 0.5mA 1500V/ACmin
Safety protection: Impedance protection
Operating temperature: -10-+70ºC
Storage temperature: -40-+70ºC
Name System OF AXIAL FLOW AC: |
Technical Parameter:
Dimension
(mm) | Model | Voltage
(VAC) | Frequency
(HZ) | Current
(AMP) | Power
(Watts) | Speed
(RPM) | AirFlow
(CFM) | Pressure
(inch/H2O) | Noise
(dBA) | Weight
(Gram) | 135X135X40 | TA13538MSL-1 | 115 | 50 | 0.28 | 25 | 2350 | 92/2.6 | 0.29 | 44.3 | 570 | TA13538MSL-2 | 230 | 50 | 0.16 | 25 | 2350 | 92/2.6 | 0.29 | 44.3 | 570 | TA13538MSL-3 | 380 | 50 | 0.12 | 30 | 2350 | 92/2.6 | 0.29 | 44.3 | 570 |
|
|
