| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Installation: |
Table |
| Type: |
Air Cooling Fan |
| Speed: |
3 Speed |
| Power Supply: |
Electric |
| Power: |
<100W |
| Material: |
Plastic |
| Application: |
Industrial |
| Timer: |
Without Timer |
| Remote Control: |
Without Remote Control |

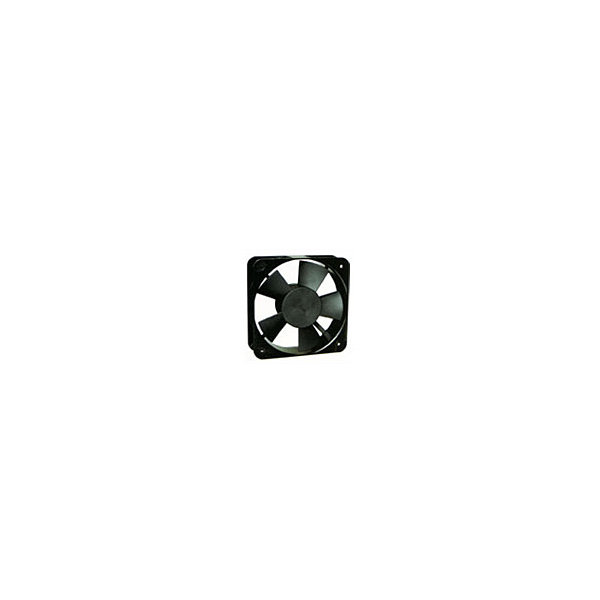

Product Description
Electric motor: Shadedpole type AC electric motor design.
Frame: High quality aluminum alloy outside frame Anti-corrosive and moisture proof structure
Impeller: UL-0 70% PBT+30%FRP
Bearing: self lubricating bearing and ball bearing.
Insulation: Class B
Insulation Impedance: the case adds 500V DC to the coils, insulation impedance 100MΩ higher
Dielectric strength: 0.5mA 1500V/ACmin
Safety protection: Impedance protection
Operating temperature: -10-+70ºC
Storage temperature: -40-+70ºC
Name System OF AXIAL FLOW AC: |
Technical Parameter:
Dimension
(mm) | Model | Voltage
(VAC) | Frequency
(HZ) | Current
(AMP) | Power
(Watts) | SPeed
(RPM) | AirFlow
(CFM) | Pressure
(inch/H2O) | Noise
(dBA) | Weight
(Gram) | 200X200X61 | TA20060MBL-1 | 115 | 50 | 0.80 | 65 | 2300 | 254/7.19 | 0.58 | 56 | 1690 | TA20060MBL-2 | 230 | 50 | 0.45 | 70 | 2500 | 285/8.07 | 0.65 | 60 | 1800 | TA20060MBL-3 | 380 | 50 | 0.28 | 70 | 2500 | 285/8.07 | 0.65 | 60 | 1800
|
|
|
Elecal Industrial Automation is Specializing in the manufacture and export of low-voltage and hight-voltage electrical products in China. Such as MCB, MCCB, ELCB, RCD, Contactor, Fuse, Relay, Switch, Distribution Box etc.
All the manufacturing process of the products is in strictly conformity to international IEC standard and we have established and perfected quality control procedures in accordance with ISO9001 international quality management system.
