Factory Directly Sale 5t Block Ice Plant with High Performance Bitzer/Bock Compressor
| Price: |
US $ 21645/Set |
| Trade Terms: |
FOB |
| Min Order: |
1/Set |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
SB5T-9 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Factory Directly Sale Block Ice Making Plant |
| Refrigeration Capacity: |
45.2kw |
| Running Power: |
22.8kw |
| Running Current: |
43.4A |
| Ice Plant Cooling Mode: |
Water Cooled |
| Power Supply: |
380V/3p/50Hz |
| Evaporating Temp.: |
-15°c |
| Water Feeding Pressure: |
0.1MPa-0.5MPa |
| Ice Making Plant Compressor: |
Bitzer/Bock |
| Warranty: |
2 Years |
| Ice Shape: |
Ice Block |
| Certification: |
CE |
| Condition: |
New |
Product Description
Descriptioin:
Factory Directly Sale 5T Block Ice Plant with High Performance Bitzer/Bock Compressor

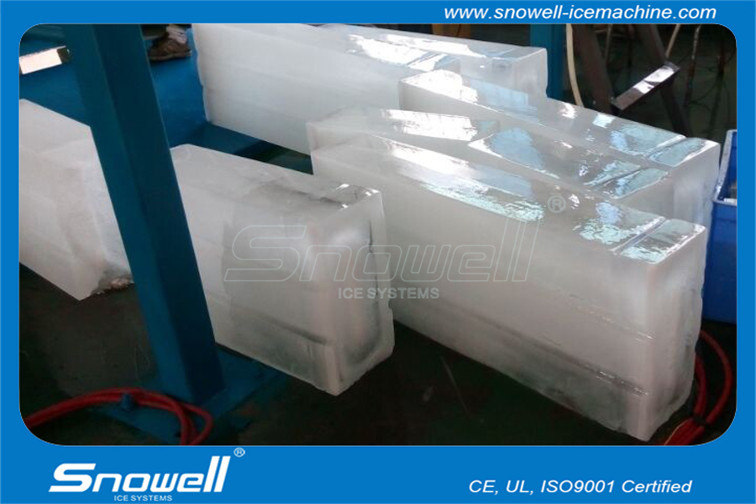

What is block Ice?
Block ice is like a cuboid ,which has a large dimension but has small contact area so it does not melt easily.
It is usually cut into different pieces for different uses in ice sculpture, sea shipping and fish vessels and so on.
Application fileds of the ice block plant
1.Human consumption ice plant
2.Chemicals and concrete projects
3.Port ice plant
4.Coffee shop, bar, and hotel, etc
5.Supermarket, convenience store and restaurant, etc
6.Aquatic products and food fresh preservation
7.Logistic fresh preservation
8.Chemicals and concrete projects
9.Mineral chemical Cooling
Feature of Snowell Block Ice Plant
a. Ti Pipe is used as evaporative coil to improve the heat transfer effect, ad its stainlessness, anti-corrosion can guarantee the long service time.
b. The stainless PE parts between the brine and the fresh water is proper to mode and weld. And it works very well in a cold condition.
c. The particular design of ice thawing tank and ice dumping unit bring easier operation. The thawing tank is heated by hot gas discharged from the compressor so that it is more energy saving and suitable for low water temperature area.
d. Modular and integrated design resures the block ice plant is easy to ship, move and install on the spot.
e. Every brine refrigeration block ice plant can be customized according to our clients requirements.The brine
Brine refrigeration block ice plant technical parameter.| Model | Capacity | Refrigerant | Electricity | Installment | Operation | Dimension |
|
|
|
| consumption | power | weight |
|
|
| -- | Ton/D | -- | Kw | Kw | Kg | mm |
|
| ZB5T | 5 | R22/R404A | 21.14 | 25 | Unit | L1400*W1000*H1250 |
|
|
|
|
|
| Evaporator | L4800*W1000*H2250 |
|
|
|
|
|
| Cooling tower | Ø1380*H2170 |
|
| ZB10T | 10 | R22/R404A | 40.69 | 50 | Unit:1680 | L1800*W1000*H1450 |
|
|
|
|
|
| Evaporator: | L4800*W1000*H2250 |
|
|
|
|
|
| 2860*2 |
|
|
|
|
|
|
| Cooling tower:670 | Ø2000*H2410 |
|
| ZB15T | 15 | R22/R404A | 60.6 | 75 | Unit:21060 | L2000*W1200*H1600 |
|
|
|
|
|
| Evapoorator: | L4800*W1000*H2250 |
|
|
|
|
|
| 2860*3 |
|
|
|
|
|
|
| Cooling tower:1120 | Ø2175*H2565 |
|
| ZB20T | 20 | R22/R404A | 88.5 | 105 | Unit:2896 | L2400*W1600*H1800 |
|
|
|
|
|
| Evaporator: | L4800*W1000*H2250 |
|
|
|
|
|
| 2860*4 |
|
|
|
|
|
|
| Cooling tower:1300 | Ø2650*H2645 |
|
| ZB25T | 25 | R22/R404A | 98.8 | 120 | Unit:3260 | L3200*W1800*H2200 |
|
|
|
|
|
| Evaporator:2860*5 | L4800*W1000*H2250 |
|
|
|
|
|
| Cooling tower: 1630 | Ø3050*H2780 |
|
| ZB30T | 30 | R22/R404A | 120.3 | 150 | Unit:3500 | L3000*W2000*H2200 |
|
|
|
|
|
| Evaporator:2860*6 | L4800*W1000*H2250 |
|
|
|
|
|
| Cooling tower:2730 | Ø3300*H2785 |
|
After-sales Service for the block ice plant:
1. Two years warranty
2. Offer Spare parts free of charge within the warranty period.
3. Technical Documents
When beyond the warranty, Snowell will supply the parts and service only for factory price.
Company Profile
Shenzhen Snowell Refrigeration Equipment Co., Ltd is founded in May, 2006, with registration capital 25 million in US Dollar. As one 10 years experienced manufacturer of refrigeration equipments in China, SNOWELL has been dedicated into researching and developing refrigeration technology. We mainly design and manufacture ice flake machine, ice tube machine, ice block machine ect. Snowell products have passed CE, UL, ISO9001, ISO14000 certificate.
Frequent Asked Questions(FAQ)
Q1: What is the delivery time?
A1:
1).The ice making machine type. Our main product line includes Flake Ice plant ,Tube Ice Plant,Block Ice plant. The manufacturing is totally different. So the time and affort spent on these machines varies. Normally the flake ice machine is fastest under the same ice daily capacity
2). Different Ice Daily Capacity: we have 1T,2T,5T,10T,20T,25T,30T,40T,50T ice making machines. For small capacity ice making plant(like1-5 tons), it needs about 10-15 working days. For larger capacity ice machines, it needs around 20-30 working days).
Q2.: What is the payment terms and trder terms?
A2: Normally, we accept T/T, 30% Deposit and 70% balance paid before delivery.
Trade Terms: FOB Shenzhen
Q3: Do I need to install the ice machine by myself?
For small ice plant, we ship it as a whole unit. So you just need to prepare power and water to run the machine.
For some larger ice machine making plant, we need to keep some components seperate for shipping convenience. But no worris about that. An installation brochure will be sent to you,it's very to install the machine.
Q4: For Water Cooled and Air cooled Machine, Which one is better?
A4: It depends. If the electricity is more abundant and cheaper than water, air cooled one is recommended. Likewise, you can choose the water cooled one according to the situation.
