| Prod Model: |
RO-15 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
by Order |
| Material: |
S.S 304 or 316 |
| Control: |
Siemens PLC |
| Certificate: |
CE, SGS |
| Capacity: |
10t Per Hour |
Product Description

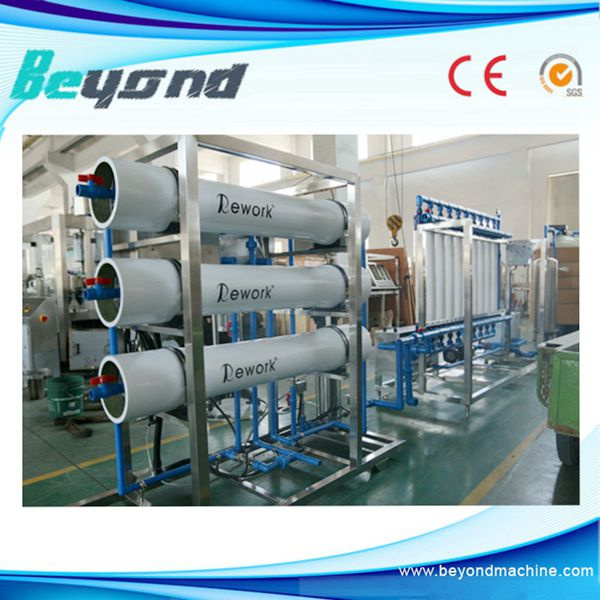

factory direct sale ro water purifier low price
Feature- RO Water Treatment Plant:
1. Auto-check conductance display guarantee watching water quality.
2. Multi-media beforehand filter increases the capacity of water treatment.
3. Intelligent design circuit equipment auto stop and run when high or low water level.
4. RO membrane auto wash and manual wash, which can protect RO membrane easily.
5. Adopting S. S304 with opening design, clear process and convinient maintenance.
6. Safe and reliable electrical system design equipment auto stop protection when open circuit, short circuit and creepage.
7. Adopting high-efficiency active carbon filter which can wipes chlorine of raw water, protect RO membrane and adjust the taste.
Multi-medium filter: The equipment is a hermetically sealed chamber made of 1Cr18NiTi stainless steel which is set inside gritted rod, therefore get filtrated and clean.
Active carbon filter: This filter is designed for drinking water treatment. It can clear away alien color and foreign substance from the water and can remove heavy metal such as Mercury, Lead, Cadmium, Zink, Iron, Manganese, Chromium and Hydrogenate, Sulfide, Residual chlorine and other polymer organic compounds.
Sodion filter: This exchanging device is used for reducing the hardnes of hard water.
Ro plant:
1) Adopts RO membrane from VONTRON, which can remove 99.7% inorganic salt, heavy metal ion and completely get rid of colloid, microbiology organic materials, germ, protozoa, pathogens, bacteria, inorganic chemical and so on.
2) No need to add any chemicals, stable pure water quality, and no pollution drained, low produce cost.
3) Equipped with pretreatment system, such as active carbon absorption filter and refined quartz sand filter
4) 304 stainless steel rack and pipe accessories connection.
5) Equipped with auto pressure protection system and on -line monitor.
6) Automatically and manually wash RO membrane. Also the design of washing the RO membrane is by chemical solution (citric acid or sodium hydroxide optional)
Main Technical Data- RO Water Treatment Plant:
| Model | Capacity(T/H) | Power(kw) | rate of desalination | Inlet diameter | Pipe DIA of Concentration | Overall Dimension(mm) | Weight(KG) |
| RO-1000A | 1.0 | 5.3 | >99.5 | DN32 | DN32 | 1600*800*1800 | 1500 |
| RO-2000A | 2.0 | 7.0 | >99.5 | DN32 | DN32 | 2600*800*1800 | 1800 |
| RO-3000A | 3.0 | 8.5 | >99.5 | DN32 | DN32 | 3600*1800*1800 | 2500 |
| RO-5000A | 5.0 | 13 | >99.5 | DN40 | DN40 | 2600*900*2000 | 3200 |
| RO-10000A | 10 | 26 | >99.5 | DN50 | DN50 | 3600*1200*1700 | 5000
|
Terms:
1. The price is FOB Zhangjiagang port; T/T, 30% deposit in advance, the balance of 70% prior to the delivery out of factory.
2. Packing: Wooden Case and PE film.
3. Working time: 40 days after receiving 30% deposit of total amount of contract or irrevocable L/C at sight.
4. Warranty: 2 years guarantee and life-long technical support with Free spare part.
