| Prod Model: |
RO-19 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Reverse Osmosis |
| Usage: |
Environmental Protection, Chemical Industry |
| Power: |
by Order |
| Material: |
S.S 304 or 316 |
| Control: |
Siemens PLC |
| Certification: |
SGS ISO |
| Capacity: |
10t Per Hour |
Product Description

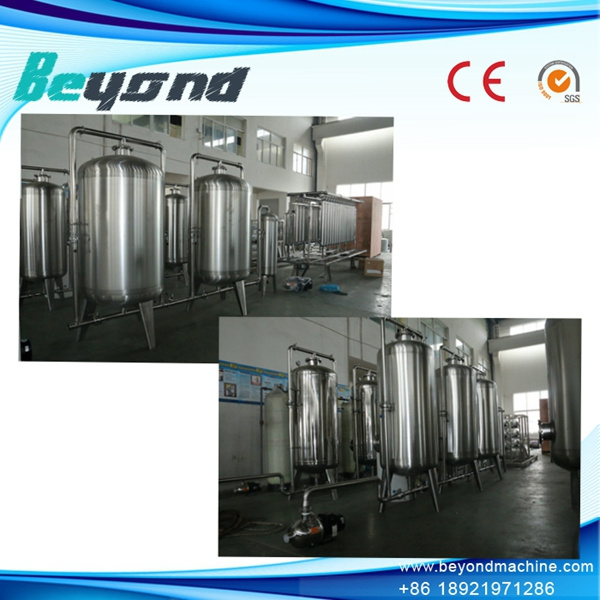

automatic mineral water purifier RO system
Feature- RO Water Treatment Plant:
1. Auto-check conductance display guarantee watching water quality.
2. Multi-media beforehand filter increases the capacity of water treatment.
3. Intelligent design circuit equipment auto stop and run when high or low water level.
4. RO membrane auto wash and manual wash, which can protect RO membrane easily.
5. Adopting S. S304 with opening design, clear process and convinient maintenance.
6. Safe and reliable electrical system design equipment auto stop protection when open circuit, short circuit and creepage.
7. Adopting high-efficiency active carbon filter which can wipes chlorine of raw water, protect RO membrane and adjust the taste.
Multi-medium filter: The equipment is a hermetically sealed chamber made of 1Cr18NiTi stainless steel which is set inside gritted rod, therefore get filtrated and clean.
Active carbon filter: This filter is designed for drinking water treatment. It can clear away alien color and foreign substance from the water and can remove heavy metal such as Mercury, Lead, Cadmium, Zink, Iron, Manganese, Chromium and Hydrogenate, Sulfide, Residual chlorine and other polymer organic compounds.
Sodion filter: This exchanging device is used for reducing the hardnes of hard water.
Ro plant:
1) Adopts RO membrane from VONTRON, which can remove 99.7% inorganic salt, heavy metal ion and completely get rid of colloid, microbiology organic materials, germ, protozoa, pathogens, bacteria, inorganic chemical and so on.
2) No need to add any chemicals, stable pure water quality, and no pollution drained, low produce cost.
3) Equipped with pretreatment system, such as active carbon absorption filter and refined quartz sand filter
4) 304 stainless steel rack and pipe accessories connection.
5) Equipped with auto pressure protection system and on -line monitor.
6) Automatically and manually wash RO membrane. Also the design of washing the RO membrane is by chemical solution (citric acid or sodium hydroxide optional)
Main Technical Data- RO Water Treatment Plant:
| Model | Capacity(T/H) | Power(kw) | rate of desalination | Inlet diameter | Pipe DIA of Concentration | Overall Dimension(mm) | Weight(KG) |
| RO-1000A | 1.0 | 5.3 | >99.5 | DN32 | DN32 | 1600*800*1800 | 1500 |
| RO-2000A | 2.0 | 7.0 | >99.5 | DN32 | DN32 | 2600*800*1800 | 1800 |
| RO-3000A | 3.0 | 8.5 | >99.5 | DN32 | DN32 | 3600*1800*1800 | 2500 |
| RO-5000A | 5.0 | 13 | >99.5 | DN40 | DN40 | 2600*900*2000 | 3200 |
| RO-10000A | 10 | 26 | >99.5 | DN50 | DN50 | 3600*1200*1700 | 5000
|
Packaging & Shipping
Packaging: International standard export package;
Terms: T/T, 30%down payment, and the balance 70% prior to the delivery out of factory.
Shipping: 30 working days after receiving 30% deposit of total amount of contract or irrevocable L/C at sight.
Our Services
The sample service
1.We can send you the video of the running machine.
2.You are welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
3.If we get the permission of the customer who has brought the machines from us,we can tell you our customers' contact imformation,you can go to vist their factory.
4.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
After-sales service
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
3.We provide one year warranty with spare parts free
Company Information
Company Management
Our company has different departments to finish different things,the sales in our company has been trained about the machines ,they are professional to help you.
Quality Control
We have the single quality department,that make sure the material of the raw materials is good,and ensurethe machine running smoothly.
Designed and developed
According to the customer's requirements,and the beverage industry's development, The designing department design the most suitable machine for different area.The designing department make our company the leader of the beverage packing machine manufacture.
Export market
Our machine has been sold to more than 40 countries,almost of the customers are satisfied with the machines and our service.
