Prod Model: |
TP03-19 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Aluminum Type: |
6082-T6 |
Size: |
Customized |
Dimension(L*W*H): |
8*4*4m |
Truss Unit Length: |
0.5/1/2/3/4m, Customized |
Tube Hardness: |
16 Degree |
Main Tube: |
50*3mm |
Certificate: |
TUV |
Connection Option: |
Spigot |
Main Usage: |
Indoor and Outdoor Events, Party, Exhibitionsand Oth |
Performance: |
Easy to Assemble and Dismantle |
Material: |
Aluminum |
Characteristics: |
Space Frame Truss |
Usage: |
Stage Performance |
Product Classification: |
Fixed Truss |
Shape: |
Square |
Structural Classification: |
Square Truss |
Color: |
Silver |
Product Description
Excellent Truss System, Aluminium Truss System, Stage Truss System(TP03-19)
1.Specifications:
Material:Aluminum 6082-T6;
Pillar:300*300mm;
Beam:300*300mm;
Connection option:spigot;
Color: aluminum silver(primitive colors and multicolors are available)
Main parts:
Items | Quantity |
CS601 multicube | 4pcs |
CS30-3M | 4pcs |
CS30-2M | 14pcs |
Alu-base | 4pcs |
Available main tube: non ripple tube, symmetry ripple tube, full ripple tube.
Details:

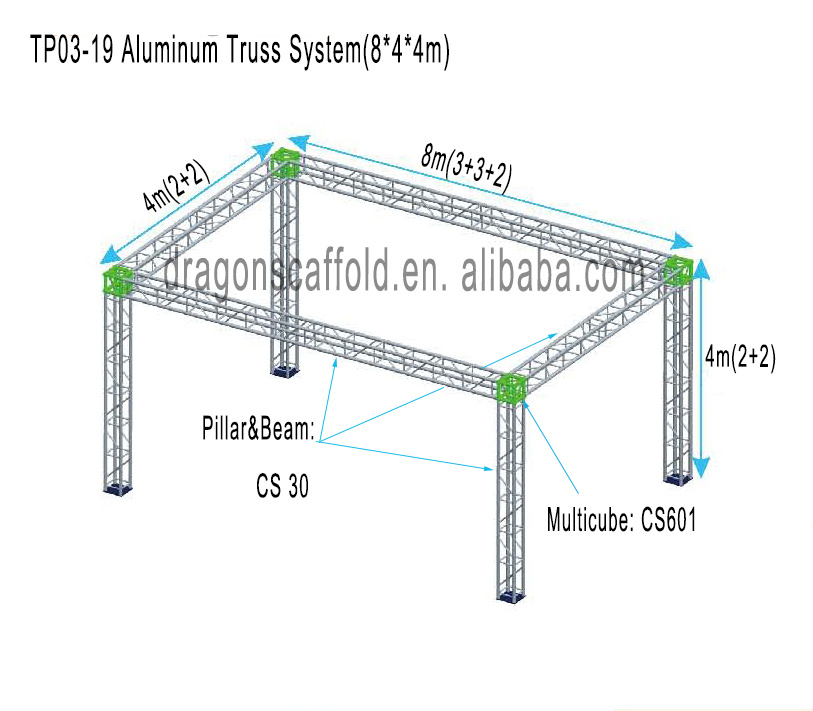

1.The size is as the picture shows, dimension(L*W*H): 8*4*4m.
2.The aluminum truss that the pillar use is CS 30.
section: 289*289mm, main tube: φ50*3mm, brace: 25*2mm.
The aluminum truss system is mainly used to hang lights or audios.
The above information is about the TP03-19 of 4m height. We can supply bolt and
spigot tower as you like. Also, you can choose other size.
The different sizes and load capacity can be ordered in our factory.The design will be offer to you separetely.
Packaging and shipping:
1.Packaging: air bubble film or carton, flight case or pallet is available.
Shipping: We can arrange shipping by sea, air , car or other ways.
About us:
Guangzhou Dragontruss Performance Equipment Co.,Ltd is a professional manufacturer for aluminum truss,moving stage , layer truss, aluminum scaffording, flight case and so on. We have TUV cetification and 6061-T6 and 6082-t6 aluminum certification.
Company information:
Business Type | Manufacturer, Trading Company |
Location | block B1, Yagang Industrial Area, Shijing, Baiyun District, Guangzhou, 510430, China |
Established | 2008 |
Number Of Employees | 11 - 50 People |
Main Markets | Domestic Market, South Asia, Southern Europe, Northern Europe, Central America |
Contract Manufacturing | OEM Service Offered Design Service Offered Buyer Label Offered |
We also have other size and specification, contact us if further information is needed.
