Guangzhou Dragon Performance Equipment Co., Ltd. >> 2015 Excellent Truss System, Aluminium Truss System, Stage Truss System

2015 Excellent Truss System, Aluminium Truss System, Stage Truss System

2015 Excellent Truss System, Aluminium Truss System, Stage Truss System
Price: US $ 9400/Set
Trade Terms: FOB,CFR,EXW
Min Order: 1/Set
Pay Type: T/T,Western Union
Prod Model: TP03-20
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Aluminum Type: 6082-T6
Beam Section: 400*600mm Square Truss
Pillar Section: 350*350mm Square Truss
Length: 16m
Width: 12m
Height: 10m
Certificte: TUV
Connection Option: Spigot
Main Usage: Hanging Lights or Audio
Performance: Easy to Assemble and Dismantle
Material: Aluminum
Characteristics: Space Frame Truss
Usage: Stage Performance
Product Classification: Fixed Truss
Shape: Square
Structural Classification: Square Truss
Color: Silver

Product Description


1.Specifications:
Material:Aluminum 6082-T6;
Pillar:350*350mm;
Beam:400*600mm;
Connection option:spigot;
Color: aluminum silver(primitive colors and multicolors are available)
Main parts:

BS4060-2M
4pcs
BS4060-3M16pcs
BS35-3M12pcs
 Top section4pcs
Manual hoist
4pcs

Fibre sling
4pcs
Sleeve block M4pcs
Hinge section4pcs
Long outrigger 12pcs
Steel base4pcs


 Available main tube: non ripple tube, symmetry ripple tube, full ripple tube.


Details:

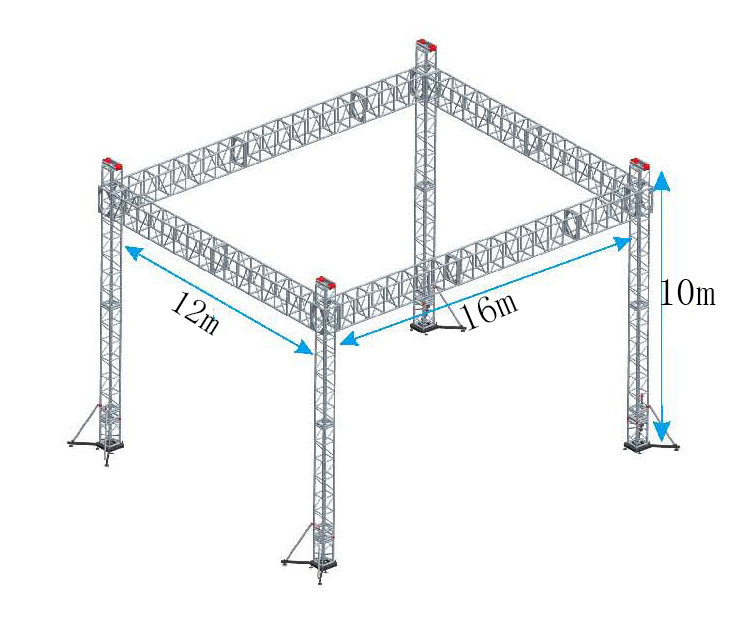

1.The size is as the picture shows,  dimension(L*W*H): 16*12*10m.
2.The aluminum truss that the pillar use is CS 35.
    section: 350*350mm, main tube: φ50*3mm, brace: 25*2mm.

The aluminum truss system is mainly used to hang lights or audio in exhibitions.

The above information is about the TP03-20 of 6m height. We can supply bolt and spigot tower as you like. Also, you can choose other size.

The different sizes and load capacity can be ordered in our factory.The design will be offer to you separetely.

Packaging and shipping:
 1.Packaging: air bubble film or carton, flight case or pallet is available.
Shipping: We can arrange shipping by sea, air , car or other ways.

About us:

     Guangzhou Dragontruss Performance Equipment Co.,Ltd is a professional manufacturer for aluminum truss,moving stage , layer truss, aluminum scaffording, flight case and so on. We have TUV cetification and 6061-T6 and 6082-t6 aluminum certification.
Company information:

Business Type
Manufacturer, Trading Company
Location
block B1, Yagang Industrial Area, Shijing, Baiyun District, Guangzhou, 510430, China

Established

2008
Number Of Employees11 - 50 People
Main MarketsDomestic Market, South Asia, Southern Europe, Northern Europe, Central America
Contract ManufacturingOEM Service Offered Design Service Offered Buyer Label Offered


We also have other size and specification, contact us if further information is needed.

GUUANGZHOU DRAGON PERFORMANCE EQUIPMENT CO.,LTD
Address: Block B1, Yangang Industrial Area, Shijing, Baiyun District, Guangzhou, 510430, China
Tel:+86 36461329 Fax:+86 2036461212
Phone: +86 18977334532
Http://www.dragontruss.com
Http://www.dragontruss.com.cn
Http://www.dragonscaffold.com
Guangzhou Dragon Performance Equipment Co., Ltd., is an integrated enterprise specialized on manufacturing, selling and renting aluminium truss, moving stage, layer truss, flight case and so on. Dragon company located in the city of guangzhou, which water and land transportation is very convenient and investment environment is very advanced.

Our aluminium truss, since to its light selfweight, durable, aesthetics, beautiful welding and modular, has been widely used to assemble all kind of exhibition, scene, concert, auditoria, outdoor show which not only hang the lights and speaker and also boost up the aesthetics of total scene. Our flight case use the high quality material and professional production technology in the perfectly combination of their practicality, safety and aesthetics. Our flight case is your idea choose of package for all kind of performance equipments and some expensive equipments.

Since dragon company built, under the support of the domestic and overseas clients, the production equipments and technology are continuously updated, the company scale is gradually stronger, our products has been sold from national market to international market. By now, dragon company has lots of skillful workers and professional designer.

Under the modern market competition, high-class products need high-class service, so we insist on "high-class products, high-class service" as our quality viewpoint to serve our clients. Dragon company sincerely hope to take advantage of excellent products and reasonable price to bring more benefit to our old and new clients and insist on "integrity win the world, brands decide the fate" as our service purpose.
