| Prod Model: |
012 |
| Name: |
Evaporator |
| Materials: |
Copper Tube |
| Condensation Forms: |
Air-Cooled |
| Refrigerant: |
CF2Cl2 |
| Type: |
Steam Condenser |
| Certification: |
SGS |
| Condition: |
New |
Product Description

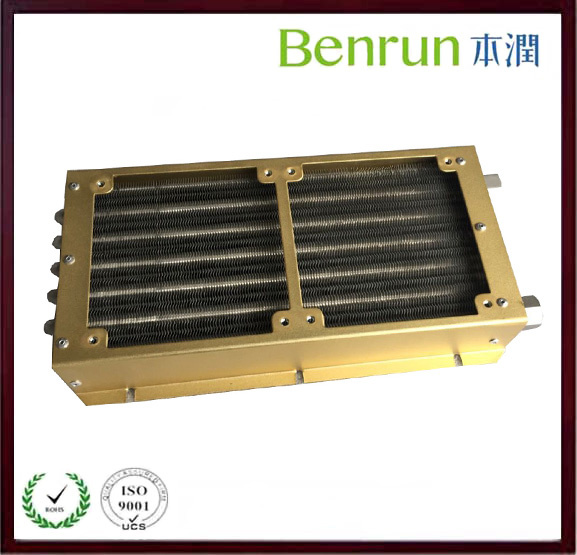

Equipment parts of air cooled conditioner
1. Material: copper, aluminum, galvanized plate.
2. Copper pipe: diameterΦ7, Φ7.94, Φ9.52, inner grooved or smooth tube.
3. Aluminum foil: hydrophilic or bare
4. Fin type: louver fin, flat fin, corrugated fin
5. Pitch of fins: Ø7 1.1~1.8mm Ø7.94 1.4~2.0 mm Ø9.52 1.4~2.3 mm
6. Pitch of holes and pitch of rows: 20.5x12.7mm, 22x19.05mm, 21x12.7mm, 25.4x22mm equilateral triangle arrangement.
| Specifications of evaporator |
| NO | Tube Diameter(mm) | Distance of hole/row(mm) | Fin Style | Fin Space(mm) |
| 1 | Φ7 | 21*12.7 | Louvered fin,Plain fin,Sine wave fin | 1.4~2.0 |
| 2 | Φ7 | 21*18.9 | Sine wave fin,Corrugated fin | 1.3~1.9 |
| 3 | Φ7 | 25*21.65 | Louvered fin | 1.5~3.8 |
| 4 | Φ9.52 | 25.4*22 | Louvered fin,Sine wave fin | 1.6~6.35 |
| 5 | Φ9.52 | 25.4*22 | Louverd fin,Plain fin,Sine wave fin | 1.6~3.2 |
| 6 | Φ9.52 | 25*19 | Louverd fin,Plain fin,Sine wave fin | 1.4~3.2 |
| 7 | Φ9.52 | 25*21.65 | Louvered fin,V ripple fin | 2.0~3.8 |
| 8 | Φ9.52 | 25*25 | Plain fin | 1.6~3.2 |
| 9 | Φ9.52 | 25*21.65 | Plain fin | 2.0~6.0 |
| 10 | Φ9.52 | 25.4*22 | Louvered fin,Plain fin,Sine wave fin | 1.6~6.35 |
| 11 | Φ9.52 | 31.75*27.5 | Louvered fin,Plain fin,Sine wave fin | 1.6~6.35 |
| 12 | Φ12.7 | 31.75*27.5 | Plain fin,Sine wave fin,V ripple fin | 1.8~6.0 |
| 13 | Φ12.7 | 31.75*27.5 | Louvered fin,Plain fin,Sine wave fin,V ripple fin | 1.7~2.2 |
| 14 | Φ12.7 | 31.75*27.5 | corrugated fin | 1.6~2.9 |
| 15 | Φ15.88 | 38.1*33 | Plain fin,Sine wave fin,V ripple fin | 2~4 |
| 1.5~4.1 | 1.5~4.2 | 1.5~4.3 | 1.5~4.4 | 1.5~4.5 |
We can serve for more types of evaporator according to every customers' drawing and requirement
| | Series 1 | Series 2 | Series 3 | Series 4 |
Tube Diameter | Φ 9.52 | Φ9.52 | Φ7 | Φ 7.94 |
Hole Space(mm) | 25 | 25.4 | 20.5 | 22 |
Row Space(mm) | 21.65 | 22 | 12.7 | 19.05 |
Tube Material | Copper, Aluminum | Copper, Aluminum | Copper, Aluminum | Copper, Aluminum |
Type of Tube | Smooth Tube,
Inner Grooved Tube | Smooth Tube,
Inner Grooved Tube | Smooth Tube,
Inner Grooved Tube | Smooth Tube,
Inner Grooved Tube |
Fin Surface | Louver Fin,
Corrugated Fin | Flat Fin,
Louver Fin,
Corrugated Fin | Flat Fin,
Louver Fin | Louver Fin |
Fin Type | Hydrophilic Foil,
Bare Foil,
Copper Foil | Hydrophilic Foil,
Bare Foil,
| Hydrophilic Foil,
Bare Foil,
Golden Foil | Hydrophilic Foil,
Bare Foil,
Golden Foil |
Fin Thickness(mm) | 0.095~0.2 | 0.095~0.2 | 0.095~0.2 | 0.095~0.2 |
Fin Space(mm) | 1.4~2.3 mm | 1.4~2.3 mm | 1.1~1.8mm | 1.4~2.0 mm |
You could choose any specification from the above and ask products from us.
1) Promptly delivery and best technical service for our condenser
2) Large quantities of products has exported for our condenser
3) Large scope for customer selection for our condenser
4) Environmental protection for our condenser
5) High efficiency for heat exchanging of our condenser
Standard export packing for ench piece of condenser coil under customer's requirement: cardboard and carton.
