| Prod Model: |
004 |
| Name: |
Spare Parts |
| Place Of Origin: |
Zhejiang, China (Mainland) |
| Application: |
Refrigeration Parts, Refrigeration |
| Size: |
Customized for Each Refrigerationcondenser |
| Structure: |
Aluminum Fin Copper Tube |
| OEM For Condenser: |
Acceptable |
| Model: |
Customized for Each Refrigeration Condenser |
| Condensation Forms: |
Water-Cooled |
| Refrigerant: |
CF2Cl2 |
| Type: |
Steam Condenser |
| Certification: |
SGS |
| Condition: |
New |
Product Description

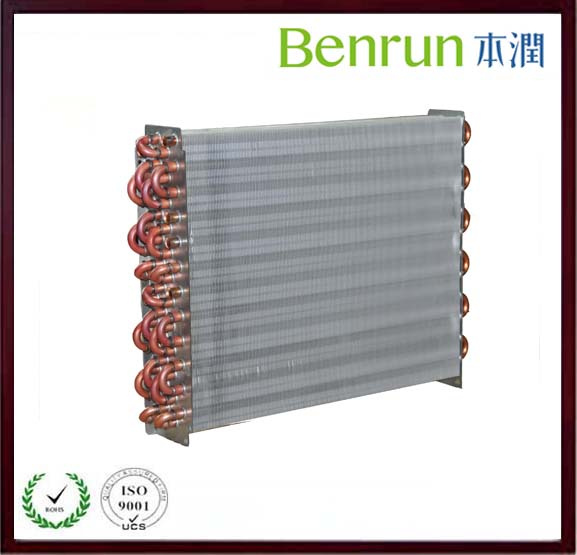

Copper tube plain foil refrigerator spare parts
1. Material: copper, aluminum, galvanized plate.
2. Copper pipe: diameterΦ7, Φ7.94, Φ9.52, inner grooved or smooth tube.
3. Aluminum foil: hydrophilic or bare
4. Fin type: louver fin, flat fin, corrugated fin
5. Pitch of fins: Ø7 1.1~1.8mm Ø7.94 1.4~2.0 mm Ø9.52 1.4~2.3 mm
6. Pitch of holes and pitch of rows: 20.5x12.7mm, 22x19.05mm, 21x12.7mm, 25.4x22mm equilateral triangle arrangement.
| Specifications of evaporator |
| NO | Tube Diameter(mm) | Distance of hole/row(mm) | Fin Style | Fin Space(mm) |
| 1 | Φ7 | 21*12.7 | Louvered fin,Plain fin,Sine wave fin | 1.4~2.0 |
| 2 | Φ7 | 21*18.9 | Sine wave fin,Corrugated fin | 1.3~1.9 |
| 3 | Φ7 | 25*21.65 | Louvered fin | 1.5~3.8 |
| 4 | Φ9.52 | 25.4*22 | Louvered fin,Sine wave fin | 1.6~6.35 |
| 5 | Φ9.52 | 25.4*22 | Louverd fin,Plain fin,Sine wave fin | 1.6~3.2 |
| 6 | Φ9.52 | 25*19 | Louverd fin,Plain fin,Sine wave fin | 1.4~3.2 |
| 7 | Φ9.52 | 25*21.65 | Louvered fin,V ripple fin | 2.0~3.8 |
| 8 | Φ9.52 | 25*25 | Plain fin | 1.6~3.2 |
| 9 | Φ9.52 | 25*21.65 | Plain fin | 2.0~6.0 |
| 10 | Φ9.52 | 25.4*22 | Louvered fin,Plain fin,Sine wave fin | 1.6~6.35 |
| 11 | Φ9.52 | 31.75*27.5 | Louvered fin,Plain fin,Sine wave fin | 1.6~6.35 |
| 12 | Φ12.7 | 31.75*27.5 | Plain fin,Sine wave fin,V ripple fin | 1.8~6.0 |
| 13 | Φ12.7 | 31.75*27.5 | Louvered fin,Plain fin,Sine wave fin,V ripple fin | 1.7~2.2 |
| 14 | Φ12.7 | 31.75*27.5 | corrugated fin | 1.6~2.9 |
| 15 | Φ15.88 | 38.1*33 | Plain fin,Sine wave fin,V ripple fin | 2~4 |
| 1.5~4.1 | 1.5~4.2 | 1.5~4.3 | 1.5~4.4 | 1.5~4.5 |
We can serve for more types of evaporator according to every customers' drawing and requirement
| | Series 1 | Series 2 | Series 3 | Series 4 |
Tube Diameter | Φ 9.52 | Φ9.52 | Φ7 | Φ 7.94 |
Hole Space(mm) | 25 | 25.4 | 20.5 | 22 |
Row Space(mm) | 21.65 | 22 | 12.7 | 19.05 |
Tube Material | Copper, Aluminum | Copper, Aluminum | Copper, Aluminum | Copper, Aluminum |
Type of Tube | Smooth Tube,
Inner Grooved Tube | Smooth Tube,
Inner Grooved Tube | Smooth Tube,
Inner Grooved Tube | Smooth Tube,
Inner Grooved Tube |
Fin Surface | Louver Fin,
Corrugated Fin | Flat Fin,
Louver Fin,
Corrugated Fin | Flat Fin,
Louver Fin | Louver Fin |
Fin Type | Hydrophilic Foil,
Bare Foil,
Copper Foil | Hydrophilic Foil,
Bare Foil,
| Hydrophilic Foil,
Bare Foil,
Golden Foil | Hydrophilic Foil,
Bare Foil,
Golden Foil |
Fin Thickness(mm) | 0.095~0.2 | 0.095~0.2 | 0.095~0.2 | 0.095~0.2 |
Fin Space(mm) | 1.4~2.3 mm | 1.4~2.3 mm | 1.1~1.8mm | 1.4~2.0 mm |
You could choose any specification from the above and ask products from us.
1) Promptly delivery and best technical service for our condenser
2) Large quantities of products has exported for our condenser
3) Large scope for customer selection for our condenser
4) Environmental protection for our condenser
5) High efficiency for heat exchanging of our condenser
Standard export packing for ench piece of condenser coil under customer's requirement: cardboard and carton.
Want to know more about us?
Several types of condensers&evaporators we are producing for our clients now.
Still not enough for your reference? Here are our FAQ.
Is there a middle man draining your profit ?Get rid of them, it' is information age!
1. Set up in the 2000s about 12 years' history, highly experienced in condenser area
2. Various capable employees make the unique product
3. Hundreds of people, strict quality control

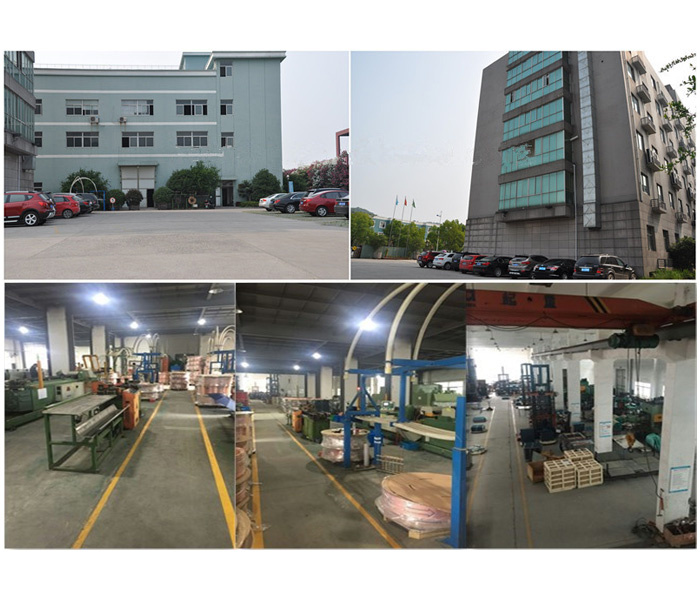

Company & Factory Information
Hangzhou Benrun Trading Co., Ltd is a professional trading enterprise and manufacturer, located in Hangzhou, China, which incorporates manufacturing, distribution and trading, specializing in producing condenser, evaporator and refrigeration components.We have advanced manufacturing facilities, strong technical force, and engineering technical team with abundant experience.
We have our own factory, which has a 12-year history in manufacturing heat exchanger.
welcome to contact us.
Congratulations! Distinguished ladies and gentlemen
You sit through all of our page, we know you are interested in our product, and you are the kind people we are waiting for.
Send me an email, we will do our best to assist your! Thanks a lot!
Hangzhou Benrun Trade Co., Ltd, established in 2011, is a professional supplier in China. Mainly product are condenser, evaporator and refrigeration components. We have our own factory which has a 12-year history in this line.
Our condensers and evaporators can be widely used in air conditioners, heat pumps, fan coils, refrigerator. We can offer the copper pipe, stainless steel pipe and aluminum pipe condensers and evaporators.
We have exported to Europe, North of America, Middle East, South of Africa and southeast Asia. Our products are popular because of its good quality and fair price.
We sincerely welcome customers all over the world to visit our company and set up business relationship for mutual benefit.
