| Prod Model: |
YL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Function: |
Transformer Oil Filtration Machine |
| Color: |
Grey or as Customer Request |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Electric Wiring: |
IEC Standard |
| Delivery Time: |
30-40 Days |
| Package: |
Steel Package |
| Voltage: |
as Customers Need |
| Folw Rate: |
as Customers Need |

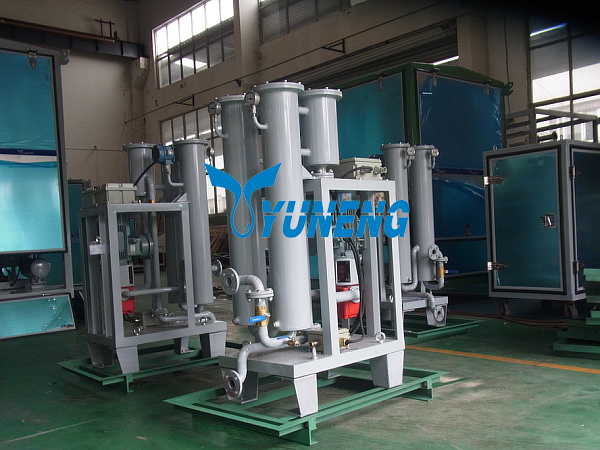

Product Description
Simple to operate and convenient for maintenance. Features low cost and high filtration precision, it is the updating product of the plate frame pressure oil purifier.
Engine Oil Filling Machine, Engine Oil Purifier Feature:
Engine Oil Filling Machine, Engine Oil Purifier is suitable to filter various impurities in insulating oil, turbine oil, mechanical oil, hydraulic oil 1-5 or more multi-stage filtration acceptable, filters can be wash / clean to reuse.
Filters choice diversified according to your oil and usage.
Engine Oil Filling Machine, Engine Oil Purifier is replacement for the frame-pressurized oil filling machine. It is simple in structure and easy to operate with low price.
For high-quality oil recondition machine as vacuum oil filling machine, please search our ZJA, ZJB, JZ, ZJC, JT, DYJC, KYJ We have full series from low to high for your choice.
Engine Oil Filling Machine, Engine Oil Purifier Parameters
Parameter |
Type
Unit |
YL-50 |
YL-80 |
YL-100 |
YL-150 |
YL-200 |
Flow Rate |
L/min |
50 |
80 |
100 |
150 |
200 |
Motor Power |
KW |
1.1 |
1.5 |
2.2 |
3 |
4.4 |
Inlet/Outlet Diameter |
mm |
32/25 |
38/32 |
44/38 |
48/44 |
64/48 |
Weight |
Kg |
100 |
120 |
150 |
200 |
260 |
Working Pressure |
Mpa |
≤0.5Mpa |
Power Supply |
|
50Hz380V 3-Phase 4-Wire (or as requested) |
Filtering accuracy |
µm |
≤5 |
Delivery lift |
m |
≥15 |
Yuneng products list:
1. Insulation Oil filling machine:
ZJA Ultra-high Transformer / Insulation Oil filling machine (1000KV, ±800KV, 750KV, ±660KV project) ( 2 stage vacuum)
ZJA High-vacuum Transformer / Insulation Oil filling machine (110KV-500KV project)) (2 stage vacuum)
ZJB Transformer / Insulation Oil filling machine (≤110KV) (one stage vacuum)
ZJ Vacuum Pumping machine (extract vacuum, dry transformer)
GF Dry Air Generator (produce dry air for operators to maintain transformer, reactors).
JZ OLTC (on-load tap changer) online Oil filling machine
Quantitative oil injection machine (customized product)
2. Turbine Oil filling machine:
JT coalescing dehydration oil filling machine (dehydration by special filters)
DYJC online turbine oil filling machine (dehydration by special filters and vacuum system)
ZJC-T vacuum oil filling machine for turbine oil (dehydration by vacuum system)
3. Lubricating Oil filling machine:
ZJC-R vacuum Oil filling machine for lubricating oil (machinery oil, hydraulic oil, compressor oil, coolant oil, cutting oil..)
ZJC-M Oil filling machine for OCS. (oil with high viscosity 22-320cst at 40°C)
4. Other kinds of oil filling machine:
KYJ fire-resistance oil filling machine (EHC oil)
LY plate-frame pressure oil filling machine (simple, paper filtration)
YL Engine Oil Filling Machine, Engine Oil Purifier (simple, cheap)
5. Waste oil regeneration machine (by chemicals or by high temperature distillation)
YNZSY used oil filling machine (by chemicals)
YNZSY-LTY used tire oil filling machine (by chemicals)
Waste oil distillation machine
6. Oil tester/ analyzer:
Dielectric oil breakdown strength tester
Water content tester
Inline Digital Flow Meter and Totalizer
Viscosity analyzer
Flash point analyzer (close cup)
Flash point analyzer (open cup)
Interfacial tension analyzer
Gas chromatograph
