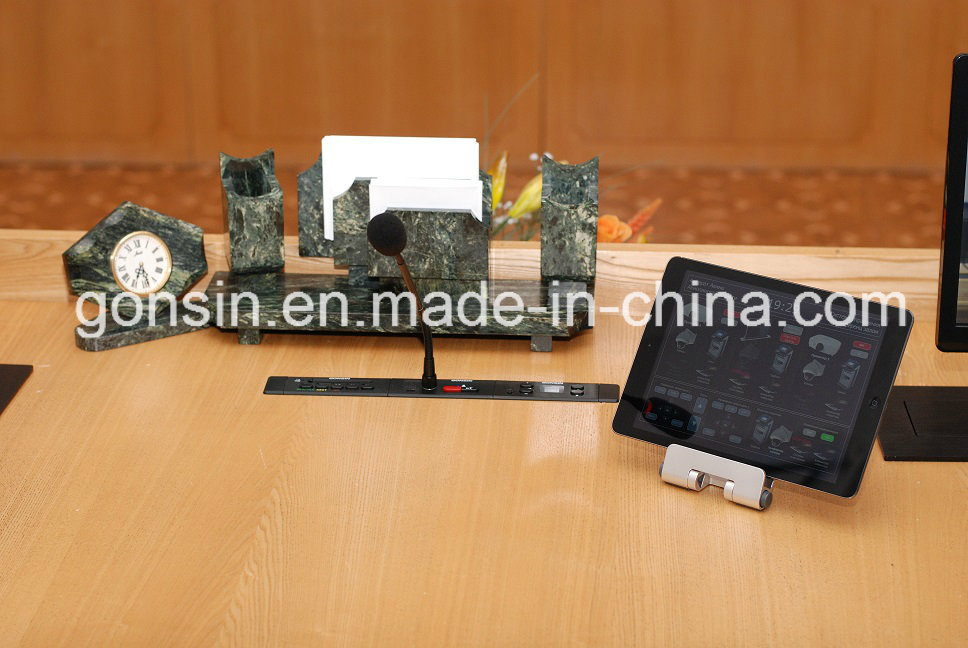

Embeded -Type Conference Microphone
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
GONSIN TL-5600 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mounting Type: |
Flush Mounting |
| LCD: |
White-on-Blue Backlit |
| Language Interpretation: |
1+5 Channels |
| Attendance Registration: |
by IC Card or Mic Key Press |
| Voting And Election: |
5 Buttons |
| Loudspeaker: |
Flush Mounting |
| Type: |
Voice Conferencing System |
| Video: |
Video |
| Communication: |
Wired |
Product Description
5600 series Discussion, Voting and Interpretation System offers a flushmount conference solution for microphone discussion, interactive voting, simultaneous interpretation, language distribution, video tracking and software control.
Flush discussion unit allows the delegate to talk and request to talk. Handheld voting keypad and flush voting unit can be used for attendance, voting, election, evaluation and grading. Flush channel selection unit is available with 6 channels for the delegate to hear the selected channel through a personal headphone. Volume control buttons can be used to adjust the headphone volume level for comfortable listening. Flush loudspeaker can be added to meet the venue needs.
Flexible module-based solution
Function modules can be stand-alone installed or easily combined to suit the venue environment and meet the customer needs, offering a versatile conference solution.
Smart voice activation mode
The system can be operated under VOX (voice activation) mode so that the microphone is automatically turned on when the delegate speaks. VOX sensitivity can be adjusted to suit conference environment. This microphone mode enables hands-free operation with no need to push the microphone button.
Future-proof system expansion
Built-in expansion port of the discussion module is designed for plug-and-play handheld module.
It becomes easier to upgrade the system and extend more features when necessary in the future.
Major system component parts:
Central control unit, extension unit, discussion unit, handheld voting keypad or flush voting unit, channel selection unit, loudspeaker, connector(conjuntion box), interpreter console, conference management software, dome camera, computer, sound equipment and display equipment.
Discussion Unit
TL-VDQ5600/ TL-VXQ5600
Delegate discussion unit (TL-VDQ5600) allows the delegate to talk, request to talk, and register attendance. 1 to 4 delegate microphones can be active simultaneously. Built-in loudspeaker automatically mutes when the microphone is turned on. Chairman discussion unit (TL-VXQ5600) has the additional priority button to override all active delegate units to control the conference. Multiple chairman and vice-chairman discussion units can be used in one system, and can be active at any time regardless of preset delegate microphone limit.
Flush Voting Unit BJ-Q5600
The flush voting unit allows the delegate to register attendance and cast a vote for YES/NO/ABST, evaluation and election. Votes are counted automatically and the result is shown on display equipment such as large screen, projector/screen and white board. Results can be printed out or saved in CD.
Handheld Voting Keypad BJ-K5600
Connecting the discussion unit via RJ-45 port, the handheld voting keypad allows the delegate to register attendance and cast a vote for YES/NO/ABST, evaluation and election. Votes are counted automatically and the result is shown on display equipment such as large screen, projector/screen and white board. Results can be printed out or saved in CD
Channel Selection Unit TC-Q5600
The wired flushmount channel selection unit provides high immunity from interference and high security against unauthorized listening. Each unit comes with headphone jack and volume control so that the delegate can hear any selected channel on a personal headphone, and adjust volume level for comfortable listening.Connector CON-5600
The CON-5600 connector is designed to connect control units to function modules including discussion unit, channel selection unit, flush voting unit and/or loudspeaker for power supply and communication signals.
Loudspeaker SPK-10(Optional)

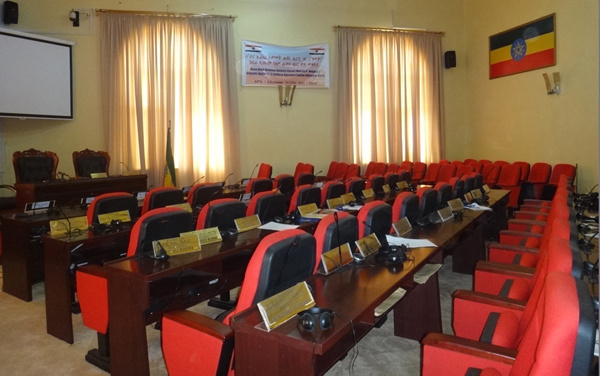

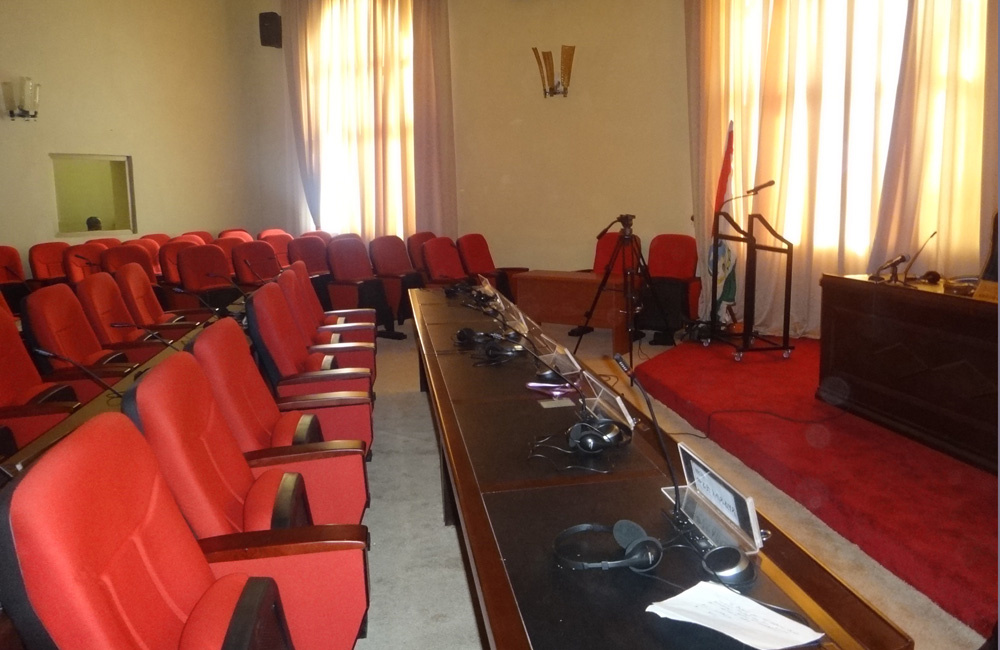

The flush loudspeaker delivers natural and clear sound. When it is used with the flush discussion unit, any smaller conference can be held without external sound equipment.SUCESSFUL PROJECTS:
