| Prod Model: |
ST10T-5A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Easy Operation 10t Tube Ice Maker |
| Power Supply: |
380V/3p350Hz |
| Ice Maker Operating Power: |
29.8kw |
| Ice Maker Installation Power: |
40kw |
| Refrigeration Capacity: |
51.7kw |
| Tube Ice Degree: |
-5°c |
| Design Water Inlet Temp.: |
25°c |
| Evaporating Temp.: |
-15°c |
| Condensing Temp.: |
42°c |
| Ice Machine Maker Warranty: |
24 Months |
| Certification: |
CE |
| Condition: |
New |
| Ice Shape: |
Edible Tube Ice |
Product Description
Detailes Description:

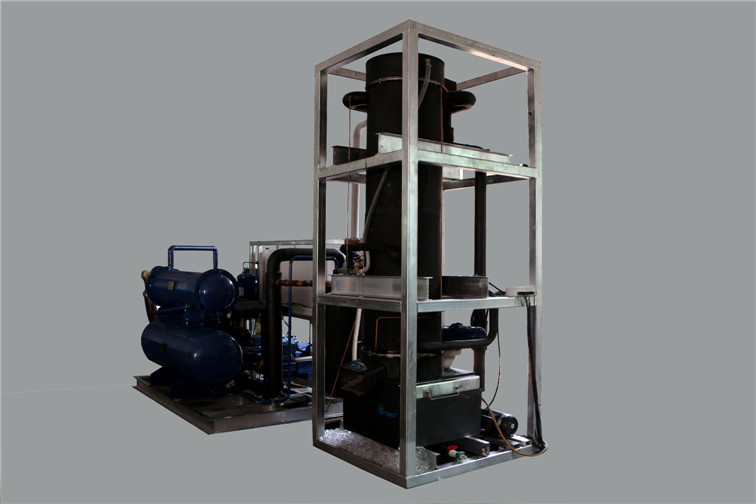

Easy Operation 10T Tube Ice Maker
As the name implies,ice tube making maker makes tube ice,which is a kind of hollow cylindrical ice with external diameter normal Φ29mm and length 25-42mm,. the hole diameter usually 5-10mm and it can be adjusted according to ice making time.
Tube ice can be white color or crystal. Compare with flake ice,tube ice has longer melting time.
Features of the 10T tube ice maker
Following diameter is just for reference. Any different request,please let me know. We will manufacture the machine accordingly.
| 10T/24hrs tube ice maker parameters |
| No | Description | Specification |
| 1 | Design Production Capacity | 10T/24hrs |
| 2 | Refrigeration Capacity | 51.7 kw |
| 3 | Ice Maker Refrigerant | R22,R404A ect |
| 4 | Ice Machine Operating Power | 29.8kw |
| 5 | Inner Diameter of ice tube | 3mm-15mm |
1. Perfect design: this tube ice maker makeradopt 3D simulation assembly, compact structure, easily operate and maintain.
2. Our tube ice maker adopts the newest international ice machine making technology. Equipped with world famous components like Bitzer Compressor, Danfoss Expansion Valve, and so on.
3.User-friendly design for the tube ice maker ,very convenient for operator.
4.Saving energy and low maintenance and operation cost. After the tube ice is off, the water of low tempreture is used for ice making,increasing the volumn of production fo ice.
6.All the material of the tube ice maker meets the HACCP request. CE, ISO Certificate approved. The use of stainless steel SUS304, aluminium alloy plate type evaporator,accords with the health and safety requuiments.
Application of tube ice maker
1. Freezing drinks, mix wines. cool foodstuffs, make ice pastries and keep fresh.
2. Widely used in hotel, bar , restaurant, catering, supemarket, ballroom, etc.
3. Food production process.
4. Chemical industry process, etc
5. Fish industry
6.Slaughterhouses and related packing industries
After-sales Service for the 10T Tube Ice maker
1. Two years warranty
2. Offer Spare parts free of charge within the warranty period.
3. Technical Documents
All Snowell tube ice maker come out with 24 months full warranty. If the machine breaks down in 24 months, Snowell will send the parts for free, even send the technician over if situation needed. When beyond the warranty, Snowell will supply the parts and service only for factory price.
Frequent Asked Questions(FAQ)
Q1: What is the delivery time?
A1:
1).The ice making machine type. Our main product line includes Flake Ice Machine, Tube Ice Machine, and Block Ice Machine. The manufacturing is totally different. So the time and effort spent on these machines varies. Normally the flake ice machine is fastest under the same ice daily capacity
2). Different Ice Daily Capacity: we have 1T, 2T, 5T, 10T, 20T, 25T, 30T, 40T, 50T ice making machines. For small capacity ice making machines(like1-5 tons), it needs about 10-15 working days. For larger capacity ice machines, it needs around 20-30 working days).
Q2. What is the payment terms and trade terms?
A2: Normally, we accept T/T, 30% Deposit and 70% balance paid before delivery.
Trade Terms: FOB Shenzhen
Q3: Do I need to install the ice maker by myself?
For small ice machine, we ship it as a whole unit. So you just need to prepare power and water to run the machine.
For some larger ice machine plant, we need to keep some components separate for shipping convenience. But no worries about that. An installation brochure will be sent to you, it's very to install the machine.
Q4: For Water Cooled and Air cooled Machine, Which one is better?
A4: It depends. If the electricity is more abundant and cheaper than water, air cooled one is recommended. Likewise, you can choose the water cooled one according to the situation.
