| Prod Model: |
DW-10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
2-Way Full Range PRO Audio |
| Crossover: |
Asymmetric Internal Passive Crossover |
| Lf Component: |
NdFeB 110mm Magnet with Aluminum Frame |
| Hf Component: |
B&C 120mm Magnet |
| Size Options: |
10", 12" |
| Installing: |
Hanging, Pole Mount, Stand, Lying Down |
| Diaphragm: |
Paper |
| Capacitor: |
Solen |
| Clients' Logo: |
Acceptable |
| Warranty: |
3 Years |
| Hi-Fi: |
Not Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
Optional Combination |
| Speaker Material: |
Wood |
| Application: |
Entertainment Venue |
| Certification: |
CCC |
| Noise: |
Nun |
| Monitor: |
Nun |
| THD: |
<0.05% |
Product Description
Features:
a. Bass reflex design on the back;
b. Imported multilayer birch plywood;
c. Reinforcing wood bar inside;
d. B&C HF loudspeaker
e. Nd-Fe-B LF loudspeaker;
f. Wide frequency, rich and strong bass, mellow and thick alto.
1.Description:

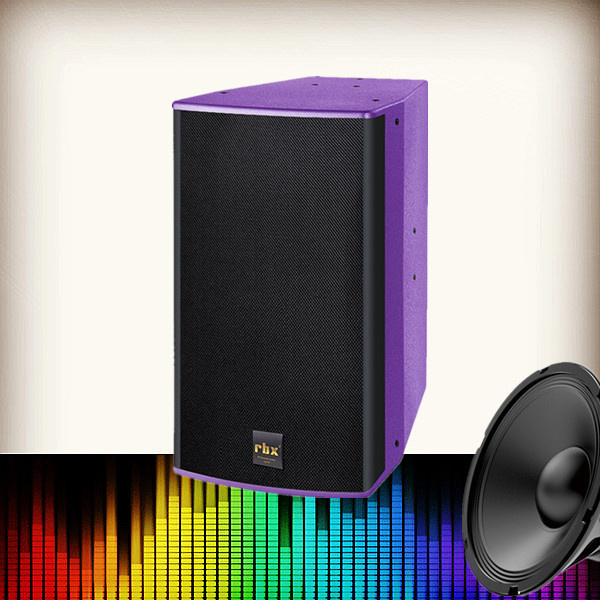

DW-10 is a two-way full-range speaker designed specifically for high-end clubs. The box uses a bass reflex design on the back, we apply several sheets of imported multilayer birch plywood. To enhance its stability and decrease the resonance, reinforcing wood bars are applied inside.
DW-10 is equipped with a 10" LF Nd-Fe-B precise driver and a 1" B&C HF precise compression driver. When you use it, you will feel a a wide frequency. Also, you can feel a deep, rich and strong bass and a mellow alto.
2. Application:
It can be used as a PA Speaker in night club.
3. Technical data:
| Model | DW-10 single 10 inch 2-way super tweeter |
| Drivers | LF: 1×10"voice-coil: 2" |
| HF: 1×1"voice-coil: 1.7" |
| Frequency(±3dB) | 50HZ-20KHZ(±3dB) |
| Dispersion(-6dB) | Hor:90° × Vert:60° |
| Sensitivity(1m/1W) | 97dB |
| Maximum SPL | 122dB Continuous/128dB Peak |
| Nominal Impedance | 8 Ohms |
| Input power | Rate: 250W/Peak: 1000W |
| Recommend AMP | 600W to 1000W into 8 Ohms |
| Connectors | 2 × Speakon NL4MP |
| Dimensions | 525 × 300 × 350mm (H × W × D) |
| Master carton | 595 × 360 × 400 (H × W × D) |
| Net Weight | 16Kg |
| Gross Weight | 18.5Kg |
4. Construction:
| Physical | Polygonal |
| Enclosure | Imported multilayer birch plywood |
| Grille | Die-casting steel net with circular hole, black sponge inside |
| Paint | Polyester coatings (whose color can be customized.) |
| Handing Position | M8 screw of installation holes (18 pcs) |
| Pole Mount | Bottom: Φ35mm support base |
5. Maintenance:
a. Please kindly operate it according to the user manual (packing with products in cartons), avoid damaging products because of non-standard operation.
b. Please kindly keep it away from dust and the strong magnetic field.
c. It should be placed in ventilated environment.
d. Please kindly keep it away from the direct sunlight and heat.
e. Please kindly clean the surface with wet soft cloth regularly. When you don't use it, it's better to put dust cover on it.
