| Prod Model: |
K8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
2-Way Full Range PRO Audio |
| Crossover: |
Asymmetric Internal Passive Crossover |
| Lf Component: |
140mm Magnet with Aluminum Frame |
| Hf Component: |
90mm Magnet |
| Size Options: |
6", 8", 10" |
| Installing: |
Hanging, Pole Mount, Stand, Lying Down |
| Diaphragm: |
Titanium |
| Capacitor: |
Solen |
| Clients' Logo: |
Acceptable |
| Warranty: |
3 Years |
| Noise: |
<95dB |
| Hi-Fi: |
Not Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
Optional Combination |
| Speaker Material: |
Wood |
| Application: |
Home |
| Certification: |
CCC |
| THD: |
<0.005% |
| Monitor: |
Nun |
Product Description
Features:
a. Titanium membrane HF titanium membrane precise compression driver;
b. Compact design;
c. Perfect alto performance for conference hall.
1. Description:

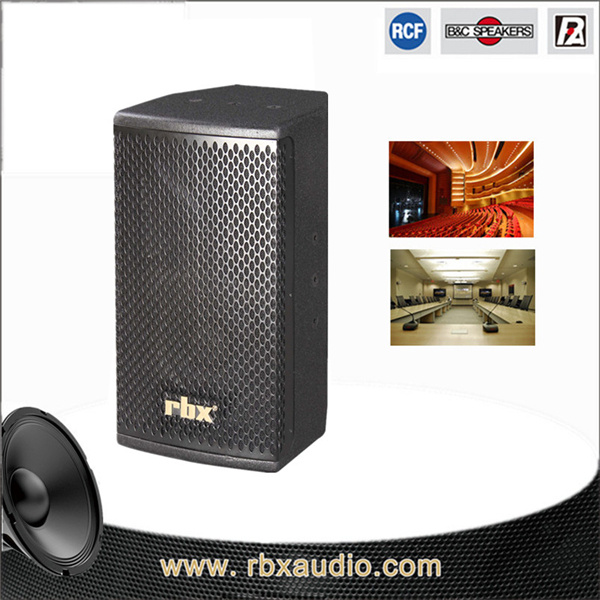

K8 is a two-way full range loudspeaker, which is equipped with a 8" LF precise driver and a 1" HF titanium membrane precise compression driver. It can be combined with K series when applied in theatre and conference room.
2. Application:
Conference center & Theatre and etc.
3. Technical data:
| Model | K8 single 8 200W p a system speakers |
| Drivers | LF: 1×8"voice-coil: 2" |
| HF: 1×1"voice-coil: 1" |
| Frequency(±3dB) | 69HZ-18KHZ(±3dB) |
| Dispersion(-6dB) | Hor:90° × Vert:50° |
| Sensitivity(1m/1W) | LF: 96dB |
| Maximum SPL | 119dB Continuous/125dB Peak |
| Nominal Impedance | 8 Ohms |
| Input power | Rate:200W/Peak: 800W |
| Recommend AMP | 200W to 500W into 8 Ohms |
| Connectors | 2 × Speakon NL4MP |
| Dimensions | 480 × 250 × 260mm (H × W × D) |
| Master carton | 540 × 310 × 320 (H × W × D) |
| Net Weight | 8Kg (1piece/ctn) |
| Gross Weight | 10.5Kg |
4. Construction:
| Physical | Polygonal |
| Enclosure | Imported multilayer birch plywood |
| Grille | Die-casting steel net with circular hole, black sponge inside. |
| Paint | Polyester coatings (whose color can be customized.) |
| Handing Position | M8 screw of installation holes (16 pcs) |
| Pole Mount | Bottom: Φ35mm support base |
6. Maintenance:
a. Please kindly operate it according to the user manual (packing with products in cartons), avoid damaging products because of non-standard operation.
b. Please kindly keep it away from dust and the strong magnetic field.
c. It should be placed in ventilated environment.
d. Please kindly keep it away from the direct sunlight and heat.
e. Please kindly clean the surface with wet soft cloth regularly. When you don't use it, it's better to put dust cover on it.
