| Prod Model: |
DSP-10kq |
| Channel: |
4 |
| Heatsink: |
Pure Copper |
| Distortion: |
< 0.01%, 20Hz - 20kHz @ +10dbu Balanced Input |
| Type: |
Professional Amplifier |
| Usage: |
KTV System |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Amplifier Combined |
| Sound Channel: |
4.1 |
| Output Number: |
4 |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Conductive Mode: |
Td |
Product Description

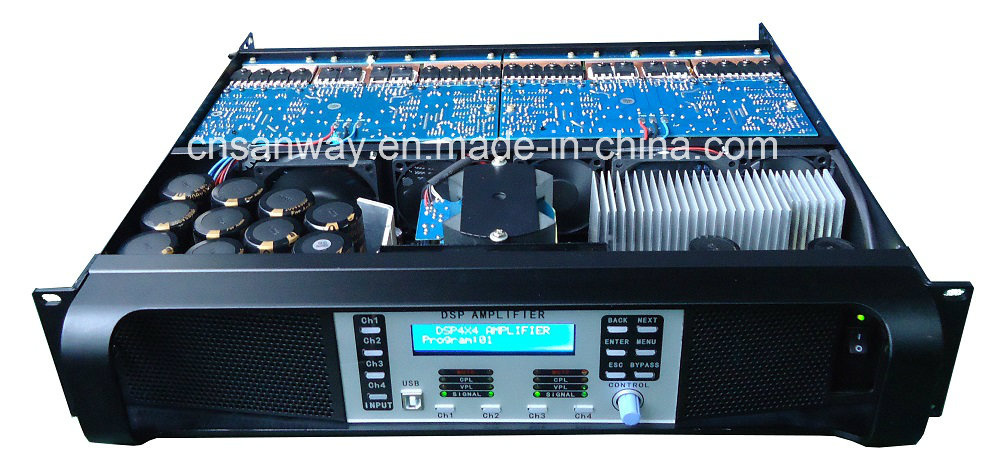

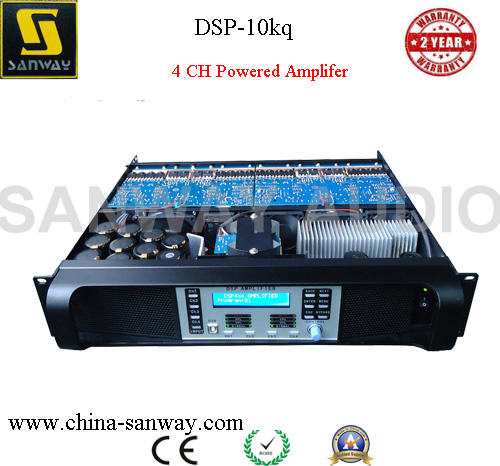

DSP-10KQ 4x 2200W@ 4OHMS Power Audio DSP Amplifier
Description
1. The DSP-10KQ seamlessly integrates networked digital signal distribution, drive processing, power amplification, and load verification plus performance monitoring in a single hardware unit with unified software controller.
2. Power affords significant benefits when compared to conventional approaches utilizing separate components.
Features
1. 2200 W per channel @ 2 ohms
2. 2500 W per channel @ 4 ohms
3. 2U chassis weighing only 13kg
4. Class TD output stage
5. Regulated Switch Mode Power Supply
6. Full suite of protection and fault monitoring features
Spcification
| DSP | |
| MODEL: | DSP-10KQ |
| Input: | 4 channel |
| Output: | 4 channel |

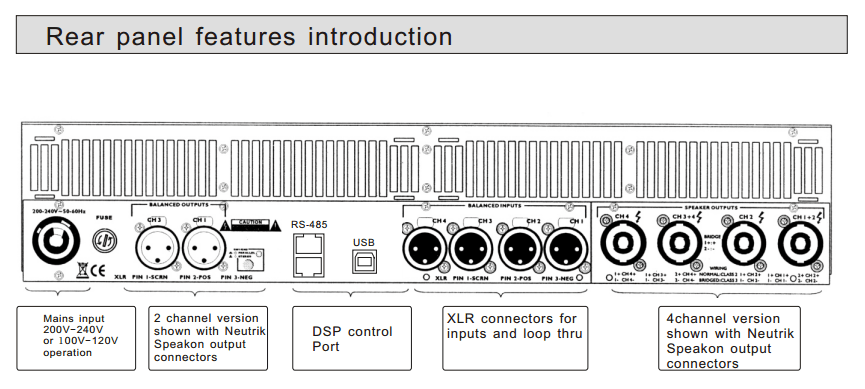

| PC Com Port: | 1 USB Com Port on front panel, 1 USB Com Port,2 RS485 Com Port on back panel (RJ-45) |
| Processor: | 48KHz Sampling frequency, 48-bit Fixed-Point DSP, 24-bit A/D and D/A converter |
| Dynamic range: | >110dB |
| Frequency Response: | ±0.25dB, 20Hz --- 20KHz |
| Distortion: | < 0.01%, 20Hz - 20KHz @ +10dBu balanced input |
| Signal to noise ratio: | >110dB |
| crossover filter: | Each output channel can be independently set as LPF and HPF, The parameters can be adjusted, Filter type:Butterworth, Bessel, Linkwitz-Riley; The Crossover Frequency:20Hz---20KHz, Slope:12,18,24 or 48 dB/octave |
| EQ: | Bandwidth:0.2 to 36 oct, Frequency:20Hz to 20KHz, Gain: -24dB to +12dB, step:0.2 dB |
| Delay: | 0ms to 115ms |
| Display: | 2 x 20 LCD |
| Store Settings: | 20 user program dynamic storage |
| | |
| AMPLIFIER | |
| Model | DSP-10KQ |
| Output Power | |
| 8Ω Stereo Power | 4×1300W |
| 4Ω Stereo Power | 4×2200W |
| 2Ω Stereo Power | 4×2500W |
| 8Ω Bridged Monon Power | 2×4400W |
| 4Ω Bridged Monon Power | 2×5000W |
| Frequenty Response | 20Hz-20kHz ±0.5dB |
| THD+N(Rated power,4Ω/KHz)% | 0.10% |
| Signal Noise Ration(dB) | 110dB |
| Input Impedance | 20KΩ Balanced / 10kΩ Unbalanced |
| Output Connectors | Speakon Connectors(NEUTRIK) |
| Power Requirement | 100-120V-50-60Hz or 200-240V-50-60Hz |
| Dimension | |
| Airframe | 483×377×88mm
|
