Product Description

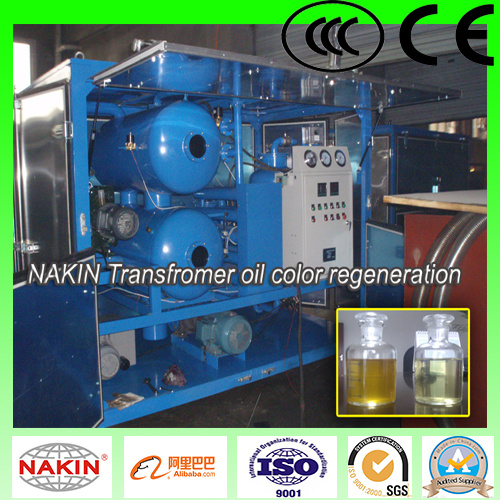

Transformer Oil Purifier/Purification Machine(ZYD)
Application:
Series ZYD double-stage vacuum transformer oil purifier can remove water, trace water, gas, particles from oil. It effectively improves oil dielectric strength to make sure electric equipments working safely and normally. It is suitable for treating high-grade transformer oil and new transformer oil.
Advantages:
Series ZYD oil purifier can increase the working effectiveness more than tree times, more quickly and completely dewater, degas, remove particles to get higher dielectric strength. This equipment can be used as independent vacuum source with the functions of vacuum drying and vacuum oiling for the electric plants.
Features:
1. Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value ≤ 5Pa
2. Two vacuum separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength improving greatly.
3. Double-horizontal film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.
7. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
8. Functions of live line work onsite, vacuum drying and vacuum oiling.
Technical Parameters:
| Index name | unit | ZYD-30 | ZYD-50 | ZYD-100 | ZYD-150 | ZYD-200 | ZYD-250 | ZYD-300 |
| Flow rate | L/H | 1800 | 3000 | 6000 | 9000 | 12000 | 15000 | 18000 |
| Working vaccum | MPa | -0.08- -0.099 |
| Working pressure | MPa | ≤ 0.4 |
| Temperature range | ºC | 20 - 80 |
| Dielectric strength | KV | ≥70 |
| Water content | ppm | ≤ 3 |
| Gas content | % | ≤ 0.1 |
| Particles size | μ | ≤ 1 |
| Power supply |
| 380V 50HZ 3Ph (As per user's option) |
| Working noise | dB(A) | <65-85 |
| Heating power | Kw | 24 | 30 | 60 | 90 | 125 | 136 | 151 |
| Total power | Kw | 27 | 35.5 | 68 | 105 | 135 | 148 | 168 |
