| Prod Model: |
TFT051A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LCD Type: |
TFT Transmissive |
| Pixel Pitch: |
0.219X0.219 |
| Interface: |
24bit RGB |
| Backlight: |
12LED White |
| Resoluton: |
320*240(RGB) |
| Active Area: |
70.08*52.56mm |
| Module Size: |
76.9*63.9*3.2mm |
| Pixel Arrangement: |
RGB Vertical Stripe |
| Driver Element: |
a-Si TFT Active Matrix |
| Viewing Direction: |
6 O'clock |
| Screen Size: |
<5 Inches |
| Aspect Ratio: |
4:3 |
| Application: |
Financial Services System |
| Screen Type: |
Resistive |
| Resistive Touch Screen Type: |
Digital |
| Customized: |
Non-Customized |
Product Description

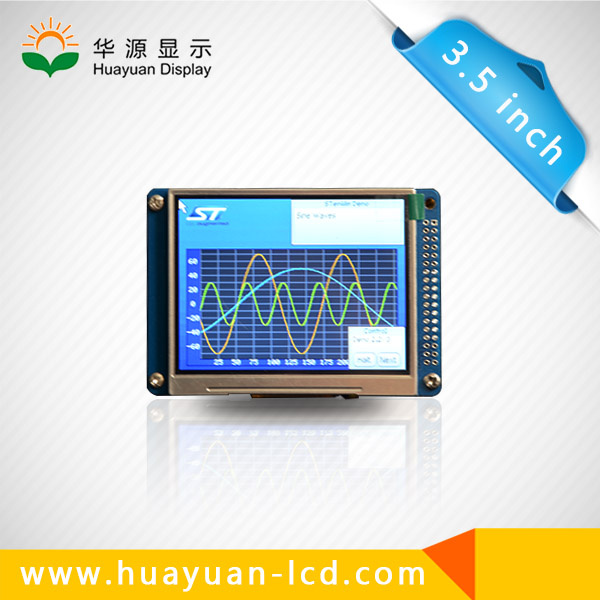

Digital TFT LCD Display with touch screen
1. Gerneral Specification
Place of Origin:Guangdong China (Mainland
Brand Name:Huayuan
Model Number:TFT051A
Type:TFT
Size: 3.5 inch tft touch display
Resolution: 320x RGB x 240
Backlight: 12 LEDs in Series
Viewing direction: 6 O'Clock
Driver: HX8238
Interface: 24 Bit RGB
FPC cable: 54 pin

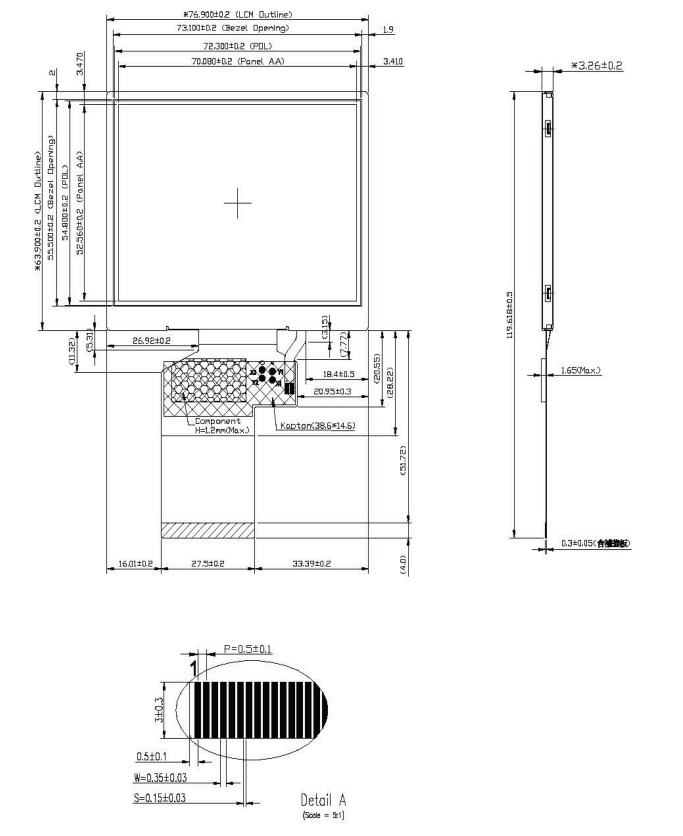

Outline dimension:76.9x63.9x4.3mm
Operating temp: -20 to 70 degree
Customized:Available
We hope to build a long-term business relationship with you .believe we are you best supplier!
If you have any questions or queries, please do not hesitate to contact us. Welcomed to visit any of my other items. We are glad to help you!
If the display surface is contaminated, breathe on the surface and gently wipe it with a soft
dry cloth. If still not completely clear, moisten cloth with one of the following solvents:
- Isopropyl alcohol
- Ethyl alcohol
Solvents other than those mentioned above may damage the polarizer. Especially, do not use
the following:
- Water
- Ketone
- Aromatic solvents
To prevent destruction of the elements by static electricity, be careful to maintain an optimum
work environment.
Be sure to ground the body when handling the LCD Modules.
Tools required for assembly, such as soldering irons, must be properly ground.
To reduce the amount of static electricity generated, do not conduct assembly and other
work under dry conditions.
The LCD Module is coated with a film to protect the display surface. Be care when
peeling off this protective film since static electricity may be generated.
