| Prod Model: |
JB-01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Driver: |
No Need |
| Installing CD: |
No Need |
| Communication: |
USB Micro |
| Battery Capacity: |
Lithium Battery 300mAh |
| Charging Time: |
1.5 Hours |
| Operating System: |
Windows Series 32/64 Digit |
| Charger Specs: |
5V, 500mha |
| Software Interface Language: |
English (Total 13 Languages) |
| Languages: |
All Supported |
| Warranty: |
1 Year |
| Tube Chip Color: |
Single Color |
| Display Function: |
Text Display |
| Display Type: |
LED Dot Matrix Display |
| Application: |
Hotel, School, Promotion Places |
| IP Rating: |
IP54 |
| Certification: |
FCC, ISO9001:2008 |
| Pixel Pitch: |
12dots Height * 48dots Width |
| Pixel Configuration: |
Single Color |
| Pixel Density: |
Total 576 Dots |
| Scanning Mode: |
No Need to Set up Screen Parameters |
| System Operating Platform: |
Windows Series 32/64 Digit |
Product Description
√ Over 10 Years == √ Factory == √ Own Exporting License == √ Quality Control == √ Competitive Price == √ Own Technology == √ OEM==Short Delivery Time
Simple Description
1) New Product
2) Easy-to-use
3) Eye-attracting
4) Powered by built-in lithium battery
5) Content updated via USB communication
6) Used in business occasions, school lecture, KTV, hotel, fair, etc.
Product Specifications
1) Size: 94 * 30.3 * 7mm
2) Resolution: (Height) 12dots * (Width) 48dots
3) Communication: USB Micro, same with Android mobile port
4) Battery capacity: Lithium battery 300MAH Charger spec: 5V, 500MHA
5) Charging time: 1.5 Hours Duration: maximum 20 hours
6) Operating system: windows series 32/64 digit
7) Software interface language: Chinese, English, Farsi, Turkey, Russian, French, Germany, Thailand, Mongolian, Poland, Korean, Japanese, Spanish, Vietnam (total 13 languages)
8) Languages supported: all languages that can be typed, including Arabic.
9) Temperature display: supported
10) Programs: 10 programs, total 32Kbyte.
11) Brightness adjustment: 5 levels (long- click adjustment button)
12) Wearing modes: Brooch + magnet
13) Software: HDSmart (shown in hard disk when inserting usb cable)
Advantages
1) No-driver design; support win series 32/64 digit system
2) No-CD design, free from software loss.
3) Super-large capacity battery (300MAH), no worry about duration.
4) USB cable compatible with mobile phone cable (MICRO USB)
5) Exclusively support temperature display.
6) Software HDSmart presets various images and animations.
7) software supports multi-language interface and all languages input.
Super long duration
1) Touch back button to display electricity quantity.
2) Long-click button to change program and display brightness
3) Large capacity 300MAH lithium battery can be repeatedly charged, life-span guaranteed.
Exclusively temperature display function
Temperature function can display Celsius and Fahrenheit.
Choose multiply fonts, display special effects and frames.
Software HDSmart presets various pictures and animations.
support animation display
support picture self-drawing
support text and picture coexistence
Support displaying 13 kinds of interface languages
Simple Communication
Our technology adapts data cable same with Android phone.
If losing data cable, find a phone data cable to replace it.
Product List
1) LED name tag * 1
2) MICRO USB charger cable * 1

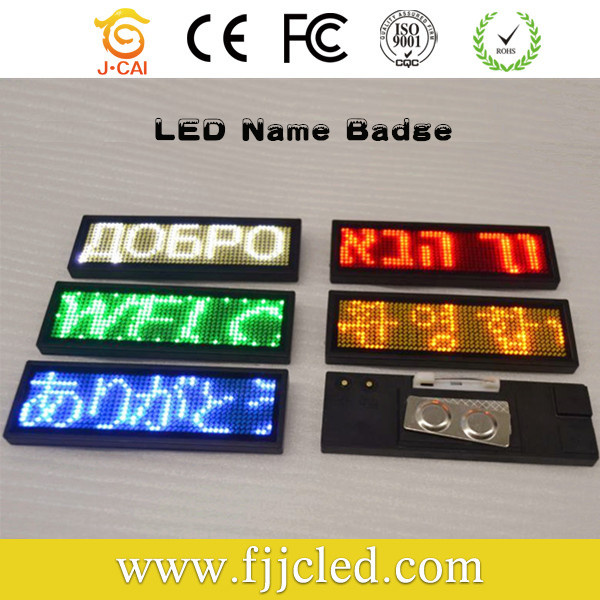

| LED Name Badge |
| Size | 94 * 30.3 * 7mm |
| Resolution | 12dots Height * 48dots Width |
| Communication port | USB Micro |
| Battery capacity | Lithium battery 300MAH |
| Charging time | 1.5 Hours |
| Operating system | windows series 32/64 digit |
| Charger specification | 5V, 500MHA |
| Temperature display | supported |
| Programs | 10 programs, total 32Kbyte |
| Brightness adjustment | 4 levels |
| Wearing modes | Brooch + magnet |
| Software | HDSmart (built-in software) |
Brilliantopto Co., Limited Was founded in 2005, with a registered capital of 20.18 million Yuan, a workshop covering an area of 20000 square meters and independent living and production places. Our company is professional in the development and manufacture of LED display systems. Our company technology strength is among the front row in this area, with a vigorous team.
In March, 2011, our company independently researched and developed a full-color formal P16 LED display, which can completely replace the current market single color LED displays, being the perfect choice in the next line of LED display market. In June, 2011, after designing P10 optical modules, we ceremoniously rolled out P10 light module series, which can effectively enhance the efficacy by above 10% and can effectively avoid a screen phenomenon. In August, 2011, our company took the lead in Quanzhou LED industry technology innovation strategy alliance. As the President unit, our company set up "Quanzhou LED Technology Research Center", featuring the national quality supervision center. Our company has many experts and professors from Xiamen University Semiconductor Research Center, Fuzhou University and Beijing University Institute of Photoelectricity for our research center technology consultation to comprehensively promote Quanzhou LED industry. In November, 2011, relying on our strong technical research and development team, we made a new generation of international leading 3D display screens.
Through six years of unremitting efforts, our company has successively obtained such honorary titles as The State Ministry Of Small-Sized And Medium-Sized Enterprise Technology Innovation Fund Project Unit, Small-Sized And Medium-Sized Enterprise In Fujian Province Technology Innovation Fund Project Unit, ISO9001 International Quality Management System Authentication Enterprise, CCC China National Mandatory Product Certification Enterprise, CE Compulsory Product Certification Enterprise, FCC Anti-Radiation Product Authentication Enterprise, RoHS Lead-Free Environmental Protection Product Authentication Enterprise, IP65 Waterproof and Dustproof Product Authentication Enterprise, Chinese Optical Optoelectronic Industry Member Unit, National Taxpayer Service Work Outstanding Member Unit, Unit With 15 Independent Research And Development Patents Of The State Intellectual Property Office, Fujian Quality And Right Protection Service (Member) Unit, Fujian Integrity And Labor Advocate Unit, Quanzhou Industry And Commerce Credit Good Enterprise, Quanzhou Creditable Unit, Quanzhou LED Technology Research Center and Quanzhou LED Industry Technology Innovation Strategy Alliance Chairman Unit.
Our company always implements our development target and insists on the tenet of "customers are the growing power source". Our company has a perfect after-sales service system, truly realizing that customers are the centers of the market marketing model.
Through our efforts, our products have been sold well in Europe, North America, Australia, the Middle East and Southeast Asia. Our company has set up stable sales agents in the corresponding areas. Our company sincerely hope to cooperate with LED display system talents and dealers for common development and for the development of LED display systems.
